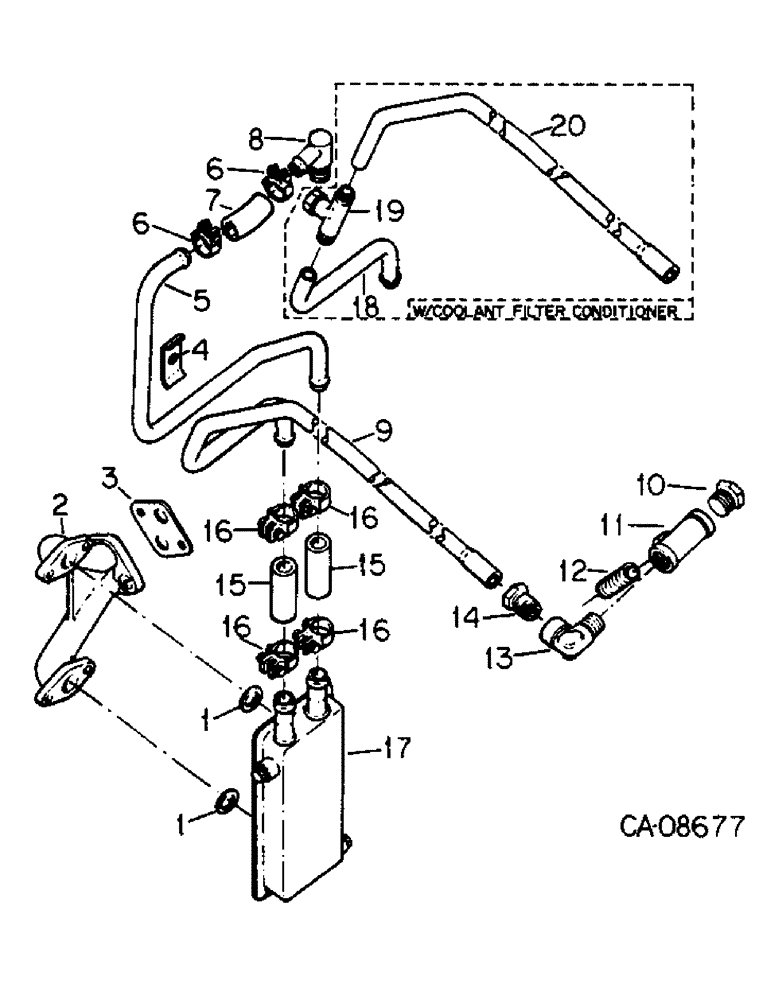

Запчасти Case IH 884 (12-48) - OIL COOLER Power

1

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 class 5

2шт.

2

3136403R1

ELBOW

MANIFOLD, oil cooler

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

933620

WASHER, saucer spring

2шт.

3

3136404R1

GASKET

1шт.

4

3218744R1

CLAMP

tube

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

5

3228042R2

PIPE

oil cooler

1шт.

6

3143364R1

CLAMP,19mm - 23mm

hose

2шт.

7

3228045R1

HOSE

1шт.

8

3228044R1

ELBOW

1шт.

9

3228043R1

PIPE

oil cooler engines w/o coolant filter

1шт.

10

444630

PLUG,Hex Hd, 1/2"-14

pipe

1шт.

11

144085

TEE,1/2" NPT, Fem

connecting

1шт.

12

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

NIPPLE, 1/2-14 npt x 1-1/2

1шт.

13

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

1шт.

14

222-507

TUBE NUT,7/8"-18

NUT

1шт.

15

3136370R1

HOSE,16.00 mm ID x 65.00 mm

- Connecting 16.00 mm ID x 65.00 mm

2шт.

16

3143364R1

CLAMP,19mm - 23mm

hose

4шт.

17

3228132R1

COOLER

lubricating oil

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

4шт.

934259R1

PLUG,Hex, M10 x 1

Straight, Drain Hex, M10 x 1

2шт.

933697R1

SEALING RING,M10 x 13.5 x 1

RING, A 10x13,5-CU

2шт.

18

3228672R1

TUBE

oil cooler to union tee engines w/coolant filter

1шт.

19

3401098R1

TEE,M15 Tube

union engines w/coolant filter

1шт.

3143333R1

TUBE NUT,Coupling, M22 x 1.5

SLEEVE, tube

2шт.

3143334R1

OLIVE

NUT, tube

2шт.

20

3228673R1

TUBE

tee to water pump carrier engines w/coolant filter

1шт.
