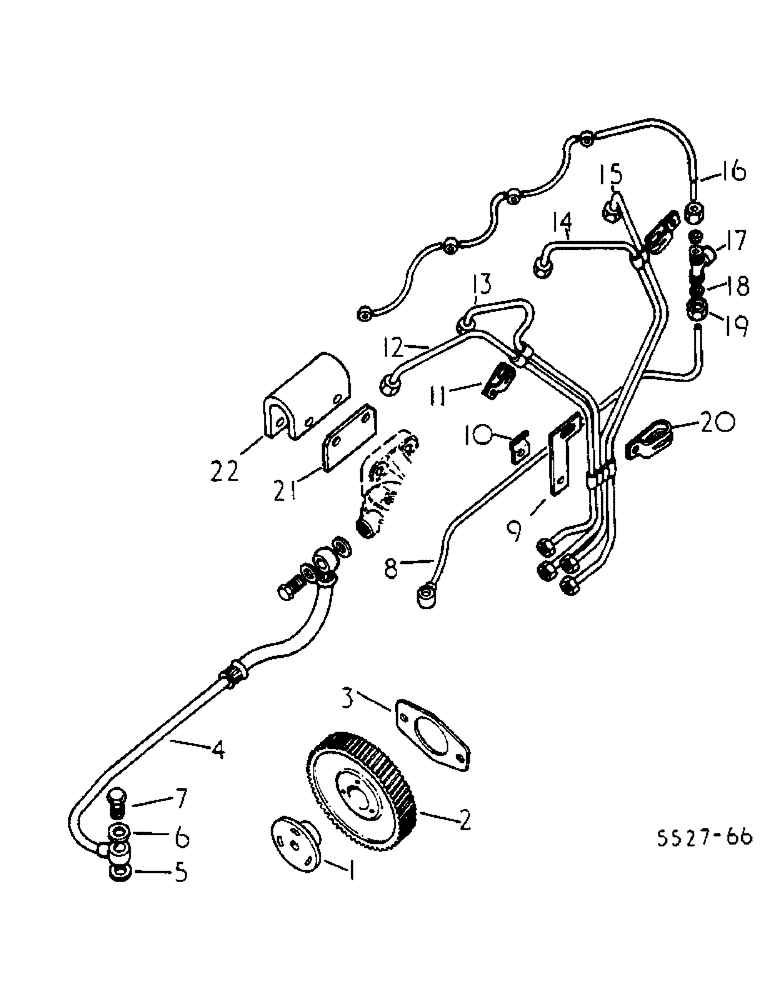

Запчасти Case IH 884 (12-45) - FUEL INJECTION PIPES AND PUMP GEAR Power

1

3055067R2

HUB

gear injection pump

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 phc type 8

3шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

8.8 x 21 x 2.5MM phc

3шт.

2

3056885R3

PINION

GEAR, injection pump

1шт.

3

3055384R1

GASKET

fuel injection pump

1шт.

4

3144265R1

PIPE

filter to injection pump

1шт.

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

5

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

1шт.

6

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

1шт.

7

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

8

3144382R1

TUBE ASSY.

PIPE, overflow

1шт.

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

2шт.

9

3055678R1

PLATE

LINK, fuel line fixing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

3050221R1

LOCK WASHER

3/8 lock

1шт.

10

3055386R1

CLAMP

CLIP, fuel line

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

3052189R1

BELLEVILLE WASHER

1/4 med lock

1шт.

11

3132770R1

COLLAR

CLAMP, pipe

2шт.

Engine serial no. 053620 and below.

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

M6 x 12 pan hd

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6 znd class 8

3шт.

11

3218241R1

CLAMP

pipe

1шт.

11

3218243R1

CLAMP

pipe

1шт.

Engine serial no. 053621 and above.

1шт.

12

3218641R1

PIPE

injection no. 1 cylinder

1шт.

Engine serial no. 053569 and below.

1шт.

12

3228396R1

INJECTION PIPE

PIPE, injection no. 1 cylinder

1шт.

Engine serial no. 053570 and above.

1шт.

13

3218642R1

PIPE

injection no. 2 cylinder

1шт.

Engine serial no. 053569 and below.

1шт.

13

3228397R1

INJECTION PIPE

PIPE, injection no. 2 cylinder

1шт.

Engine serial no. 053570 and above.

1шт.

14

3218643R1

PIPE

injection no. 3 cylinder

1шт.

Engine serial no. 053569 and below.

1шт.

14

3228398R1

INJECTION PIPE

PIPE, injection no. 3 cylinder

1шт.

Engine serial no. 053570 and above.

1шт.

15

3218644R1

PIPE

injection no. 4 cylinder

1шт.

Engine serial no. 053569 and below.

1шт.

15

3228399R1

INJECTION PIPE

PIPE, injection no. 4 cylinder

1шт.

Engine serial no. 053570 and above.

1шт.

16

3218124R1

HOSE

1шт.

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

hollow

4шт.

933696R1

SEALING RING,M6 x 10 x 1

RING - packing, 6 x 10 mm

8шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

special tee

1шт.

18

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

1шт.

19

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

1шт.

20

3132768R1

CLAMP

pipe

1шт.

Engine serial no. 053620 and below.

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

M6 x 12 pan hd

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6 znd class 8

1шт.

20

3218241R1

CLAMP

pipe

1шт.

20

3218243R1

CLAMP

pipe

1шт.

Engine serial no. 053621 and above.

1шт.

21

3059289R1

PLATE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

3218003R1

SUPPORT

fuel filter

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
