Запчасти Case IH 884 (12-39) - FUEL INJECTION PUMP, BOSCH CR PUMP, ENGINE SERIAL NO. 053569 AND BELOW Power

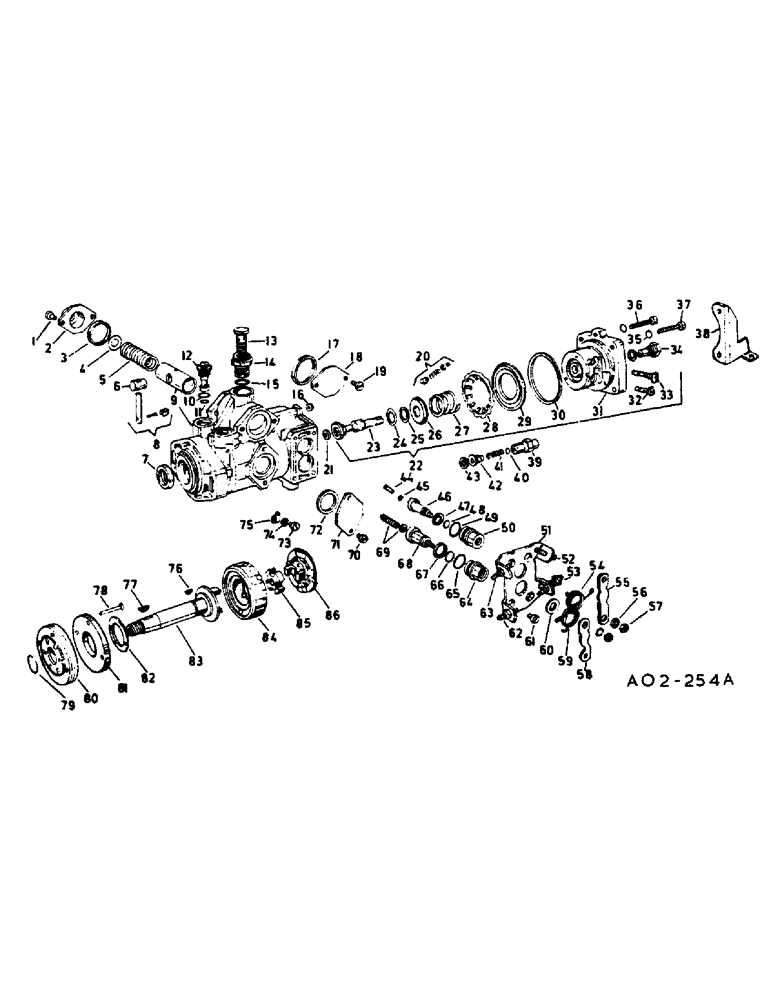

Схема запчастей Case IH 884 - (12-39) - FUEL INJECTION PUMP, BOSCH CR PUMP, ENGINE SERIAL NO. 053569 AND BELOW Power
56
81
51
58
12
40
63
75
76
83
28
17
57
44
53
2
22
41
27
71
37
64
43
42
60
39
34
74
77
19
54
25
31
61
47
36
10
5
68
82
33
45
73
18
23
80
48
1
50
35
26
9
70
52
46
7
13
14
66
21
86
8
16
65
3
15
55
24
72
78
4
6
20
11
29
30
67
59
84
49
62
69
32
79
38
85

Артикул

Название

Примечание

Количество

3228038R91

PUMP

fuel injection EP/VA/110H 1200 CR93-IP

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.355 x .748 x .098

2шт.

1

439189C1

SCREW

pan hd

2шт.

2

3078489R1

COVER

advance housing

1шт.

3

3078488R1

RING

packing

1шт.

4

3078528R1

THRUST WASHER

thrust 0.6 MM

1шт.

4

3078529R1

THRUST WASHER

thrust 0.8 MM

1шт.

4

3078530R1

THRUST WASHER

thrust 1.0 MM

1шт.

4

3078531R1

THRUST WASHER

thrust 1.2 MM

1шт.

4

3078532R1

THRUST WASHER

thrust 1.4 MM

1шт.

4

3078533R1

THRUST WASHER

thrust 3.0 MM

1шт.

5

3079106R1

VALVE SPRING

SPRING, advance piston

1шт.

6

3078482R1

SLIDE

advance piston

1шт.

7

3078355R2

OIL SEAL

oil drive shaft

1шт.

8

3078481R1

PIN

connecting auto advance

1шт.

9

3078564R91

HOUSING

ASSY W/ADVANCE PISTON

1шт.

10

3078358R1

O-RING

regulator valve

1шт.

11

3078535R1

O-RING

regulator valve

1шт.

12

3078698R1

VALVE

regulator

1шт.

13

3059086R1

BANJO BOLT

SCREW, inlet union pump hsg

1шт.

14

3078484R1

VALVE

overflow

1шт.

15

3078483R1

O-RING,2.5mm Thk x 15mm ID

union adaptor adv hsg

1шт.

16

3078487R1

O-RING

packing

1шт.

17

3078488R1

RING

packing plate adv hsg

1шт.

18

3078486R1

COVER

PLATE, advance housing

1шт.

19

931585R1

BOLT,M6 x 15mm, Cl 10.9

hex hd

2шт.

20

NOT USED THIS APPLICATION

1шт.

21

3079423R1

WASHER

plunger 1.78 MM

1шт.

21

3078761R2

WASHER

plunger 1.80 MM

1шт.

21

3079425R1

WASHER

plunger 1.82 MM

1шт.

21

3078763R2

WASHER

plunger 1.84 MM

1шт.

21

3079427R1

WASHER

plunger 1.86 MM

1шт.

21

3078765R2

WASHER

plunger 1.88 MM

1шт.

21

3079213R2

WASHER

plunger 1.90 MM

1шт.

21

3078767R2

WASHER

plunger 1.92 MM

1шт.

21

3079214R2

WASHER

plunger 1.94 MM

1шт.

21

3078769R2

WASHER

plunger 1.96 MM

1шт.

21

3079215R2

WASHER

plunger 1.98 MM

1шт.

21

3078771R2

WASHER

plunger 2.00 MM

1шт.

21

3079216R2

WASHER

plunger 2.02 MM

1шт.

21

3078773R2

WASHER

plunger 2.04 MM

1шт.

21

3079217R2

WASHER

plunger 2.06 MM

1шт.

21

3078775R2

WASHER

plunger 2.08 MM

1шт.

21

3079218R2

WASHER

plunger 2.10 MM

1шт.

21

3078777R2

WASHER

plunger 2.12 MM

1шт.

21

3079219R2

WASHER

plunger 2.14 MM

1шт.

21

3078779R2

WASHER

plunger 2.16 MM

1шт.

21

3079220R2

WASHER

plunger 2.18 MM

1шт.

21

3078781R2

WASHER

plunger 2.20 MM

1шт.

21

3079221R2

WASHER

plunger 2.22 MM

1шт.

21

3078783R2

WASHER

plunger 2.24 MM

1шт.

21

3079222R2

WASHER

plunger 2.26 MM

1шт.

21

3078785R2

WASHER

plunger 2.28 MM

1шт.

21

3079223R2

WASHER

plunger 2.30 MM

1шт.

21

3078787R2

WASHER

plunger 2.32 MM

1шт.

21

3079224R2

WASHER

plunger 2.34 MM

1шт.

21

3078789R2

WASHER

plunger 2.36 MM

1шт.

21

3079225R2

WASHER

plunger 2.38 MM

1шт.

21

3078791R2

WASHER

plunger 2.40 MM

1шт.

21

3079226R2

WASHER

plunger 2.42 MM

1шт.

21

3078793R2

WASHER

plunger 2.44 MM

1шт.

21

3079227R2

WASHER

plunger 2.46 MM

1шт.

21

3078795R2

WASHER

plunger 2.48 MM

1шт.

21

3079228R2

WASHER

plunger 2.50 MM

1шт.

21

3078797R2

WASHER

plunger 2.52 MM

1шт.

21

3079229R2

WASHER

plunger 2.54 MM

1шт.

21

3078799R2

WASHER

plunger 2.56 MM

1шт.

21

3079230R2

WASHER

plunger 2.58 MM

1шт.

21

3078801R2

WASHER

plunger 2.60 MM

1шт.

21

3079231R2

WASHER

plunger 2.62 MM

1шт.

21

3078803R2

WASHER

plunger 2.64 MM

1шт.

21

3079232R2

WASHER

plunger 2.66 MM

1шт.

21

3078805R2

WASHER

plunger 2.68 MM

1шт.

21

3079233R2

WASHER

plunger 2.70 MM

1шт.

21

3078807R2

WASHER

plunger 2.72 MM

1шт.

21

3079234R2

WASHER

plunger 2.74 MM

1шт.

21

3078809R2

WASHER

plunger 2.76 MM

1шт.

21

3079235R2

WASHER

plunger 2.78 MM

1шт.

21

3078811R2

WASHER

plunger 2.80 MM

1шт.

21

3079350R2

WASHER

plunger 2.82 MM

1шт.

21

3078813R2

WASHER

plunger 2.84 MM

1шт.

21

3079236R2

WASHER

plunger 2.86 MM

1шт.

21

3078815R2

WASHER

plunger 2.88 MM

1шт.

21

3079237R2

WASHER

plunger 2.90 MM

1шт.

22

3079107R91

HEAD

distributor assy w/plunger throttle and control plunger

1шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

3078540R1

WASHER

plunger 1.35 MM

1шт.

24

3078541R1

WASHER

plunger 1.60 MM

1шт.

24

3078542R1

WASHER

plunger 1.85 MM

1шт.

25

3078537R1

WASHER

plunger 1.65 MM

1шт.

25

3078571R1

WASHER

plunger 2.35 MM

1шт.

26

3078516R1

SEAT

spring plunger

1шт.

27

3078515R1

SPRING

plunger

1шт.

28

3078576R1

SPRING WASHER

spring

1шт.

29

3078578R1

FILTER, FUEL

FILTER

1шт.

30

3078366R1

O-RING

distributor head

1шт.

31

NSS

NOT SOLD SEPARAT

1шт.

32

NSS

NOT SOLD SEPARAT

1шт.

33

NSS

NOT SOLD SEPARAT

1шт.

34

3078914R1

PLUG

distributor head

1шт.

3078915R1

RING

packing distributor head plug

1шт.

3078913R1

BOLT

hex hd

1шт.

933696R1

SEALING RING,M6 x 10 x 1

RING - sealing, 6 x 10 mm

1шт.

35

NOT USED THIS APPLICATION

1шт.

36

3078600R1

SCREW

pump to distributor head

2шт.

37

3078600R1

SCREW

pump to distributor head

2шт.

38

3078549R1

SUPPORT

BRACKET, injection pump

1шт.

39

3079109R1

HOLDER

delivery valve

4шт.

3079097R1

CAP

protective

4шт.

40

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

delivery valve

4шт.

41

3132408R1

SPRING

delivery valve

4шт.

42

3078792R1

VALVE

delivery

4шт.

43

3078362R1

SEALING WASHER

delivery valve

4шт.

44

3078555R1

SPRING

throttle

1шт.

45

NOT USED THIS APPLICATION

1шт.

46

3078517R1

SHAFT

throttle

1шт.

47

3078519R1

WASHER

throttle shaft

1шт.

48

3078354R1

O-RING,2mm Thk x 6.5mm ID

throttle shaft

1шт.

49

785602R1

O-RING

control plunger and throttle shaft bushing

1шт.

50

3078556R1

BUSHING

throttle shaft

1шт.

51

3078557R1

PLATE

stop

1шт.

52

3132885R1

BOLT

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6 znd class 8

1шт.

53

3132251R1

STOP LOCK

SCREW, stop

1шт.

3079141R1

NUT

hex stop screw

1шт.

54

3132588R1

SPRING

torsion throttle shaft

1шт.

55

3132590R1

LEVER

throttle

1шт.

55

3132591R1

LEVER

throttle

1шт.

56

847239R1

LOCK WASHER

lock throttle and control plunger lever

2шт.

57

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex throttle and control plunger lever M6, Cl 8

2шт.

58

3059077R1

LEVER

control plunger

1шт.

58

3059078R1

LEVER

control plunger

1шт.

59

3132589R1

SPRING

torsion control plunger shaft

1шт.

60

3059076R1

WASHER

control plunger shaft

1шт.

61

931320R1

SCREW,M6 x 12mm, Cl 8.8

countersunk stop plate

4шт.

62

3059074R1

SCREW

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6 znd class 8

1шт.

63

3136136R1

SCREW

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6 znd class 8

1шт.

64

3078524R1

BUSHING

control plunger shaft

1шт.

65

785602R1

O-RING

control plunger and throttle shaft, bushing

1шт.

66

3078363R1

O-RING

control plunger shaft

1шт.

67

3078523R1

WASHER

control plunger shaft

1шт.

68

3078521R1

SHAFT

control plunger

1шт.

69

3078610R91

KIT

PACKAGE, control plunger spring service

1шт.

70

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

pan hd mach timing window cover

2шт.

71

3078486R1

COVER

timing window

1шт.

72

3078485R1

RING

packing timing window cover

1шт.

73

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

pan hd slotted timing pointer

1шт.

74

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER, lock timing pointer

1шт.

75

3132598R1

INDICATOR

timing

1шт.

76

3132395R1

KEY

Woodruff drive shaft rear

1шт.

77

3079101R1

WOODRUFF KEY

KEY, Woodruff drive shaft

1шт.

78

3078477R1

BOLT,CSK

c/sk support ring

2шт.

79

3078474R1

RING

retaining

1шт.

80

3078475R91

PUMP

charge

1шт.

81

3078476R1

RING

support charge pump

1шт.

82

3078479R1

THRUST WASHER

thrust roller retainer

1шт.

83

3078473R1

SHAFT

drive

1шт.

84

3078478R91

RETAINER

roller assy

1шт.

85

3059007R1

DISC

cross type cam face

1шт.

86

3078480R1

CAM

face

1шт.

3078526R91

GASKET KIT

SET, injection pump gasket, consists of

1шт.

3078485R1

RING

packing

1шт.

3078488R1

RING

packing

1шт.

3078358R1

O-RING

1шт.

3078535R1

O-RING

1шт.

3078366R1

O-RING

1шт.

3078354R1

O-RING,2mm Thk x 6.5mm ID

1шт.

785602R1

O-RING

2шт.

3078363R1

O-RING

1шт.

Выбрано товаров: 173
