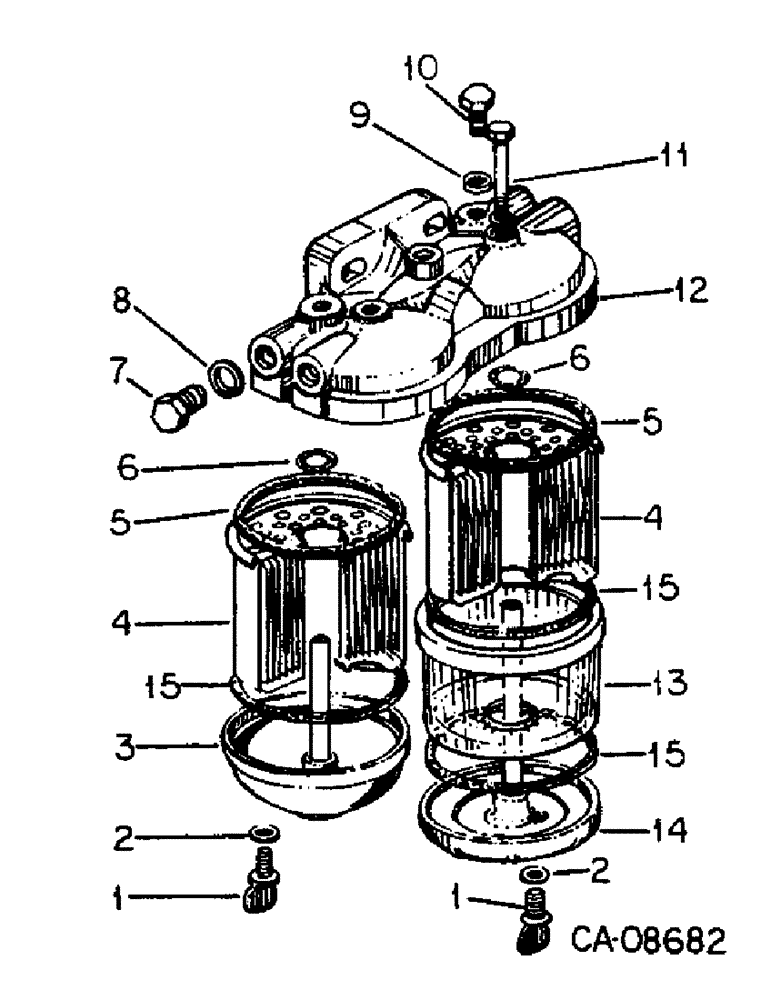

Запчасти Case IH 884 (12-37) - TWIN FUEL FILTER, C.A.V. Power

Артикул

Название

Примечание

Количество

3138816R93

FILTER ASSY

twin fuel

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

2шт.

1

3117038R91

PLUG

SCREW & WASHER, drain plug replaces 3072558R1

2шт.

2

3117039R1

SEALING WASHER

seal drain plug replaces 3072559R1

2шт.

3

3078691R91

COVER

BASE, w/stud assy

1шт.

4

3044506R93

FILTER, FUEL

ELEMENT, filter package

2шт.

5

3123890R1

SEALING WASHER

WASHER, filter sealing replaces 3105001R1

2шт.

6

3044505R1

SEAL

element

2шт.

7

3078689R1

PLUG

closing

2шт.

8

3078690R1

SEALING WASHER

seal closing plug

2шт.

9

3049111R1

SEALING WASHER

seal vent plug

2шт.

10

3070770R1

PLUG

vent

2шт.

11

3070771R2

BOLT

center

2шт.

3144668R1

SEALING WASHER

2шт.

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

12

3078687R2

HEAD

filter

1шт.

13

3069610R1

BOWL

transparent

1шт.

14

3078688R91

COVER

BASE, w/stud assy

1шт.

15

3123889R1

SEALING WASHER

WASHER, bowl sealing replaces 3105001R1

3шт.

Выбрано товаров: 19
