Запчасти Case IH 884 (12-35) - VALVE MECHANISM Power

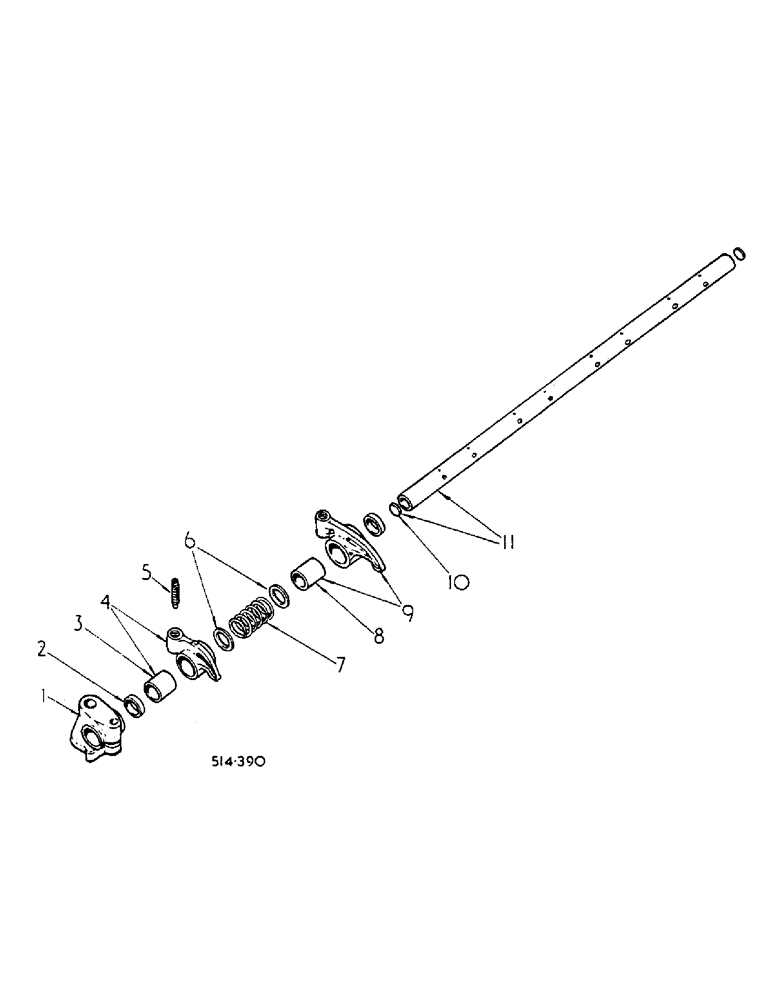

Схема запчастей Case IH 884 - (12-35) - VALVE MECHANISM Power
8
10
7
3
4
11
2
9
6
5
1

Артикул

Название

Примечание

Количество

1

3055077R6

SUPPORT

BRACKET, rocker arm shaft

5шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

5шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 x 1-1/8 pln type 5

5шт.

3050129R1

LOCK WASHER

WASHER, lock

5шт.

2

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

distance

7шт.

3

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

use only w/arms requiring bushings

4шт.

4

3132293R92

ROCKER

ARM ASSY W/BUSHING, exhaust rocker

4шт.

3132138R1

NUT

rocker arm adjusting

4шт.

5

3132137R1

ADJUSTMENT SCREW

Rocker arm

8шт.

6

3055669R1

THRUST WASHER

thrust rocker arm

8шт.

7

3055075R2

SPRING

rocker arm

4шт.

8

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

use only w/arms requiring bushings

4шт.

9

3132292R92

ROCKER

ARM ASSY W/BUSHING, intake rocker

4шт.

3132138R1

NUT

rocker arm shaft

4шт.

10

933565R1

PLUG,M14, Conical

expansion

2шт.

11

3055070R31

SHAFT

rocker arm w/plugs

1шт.

Выбрано товаров: 16
