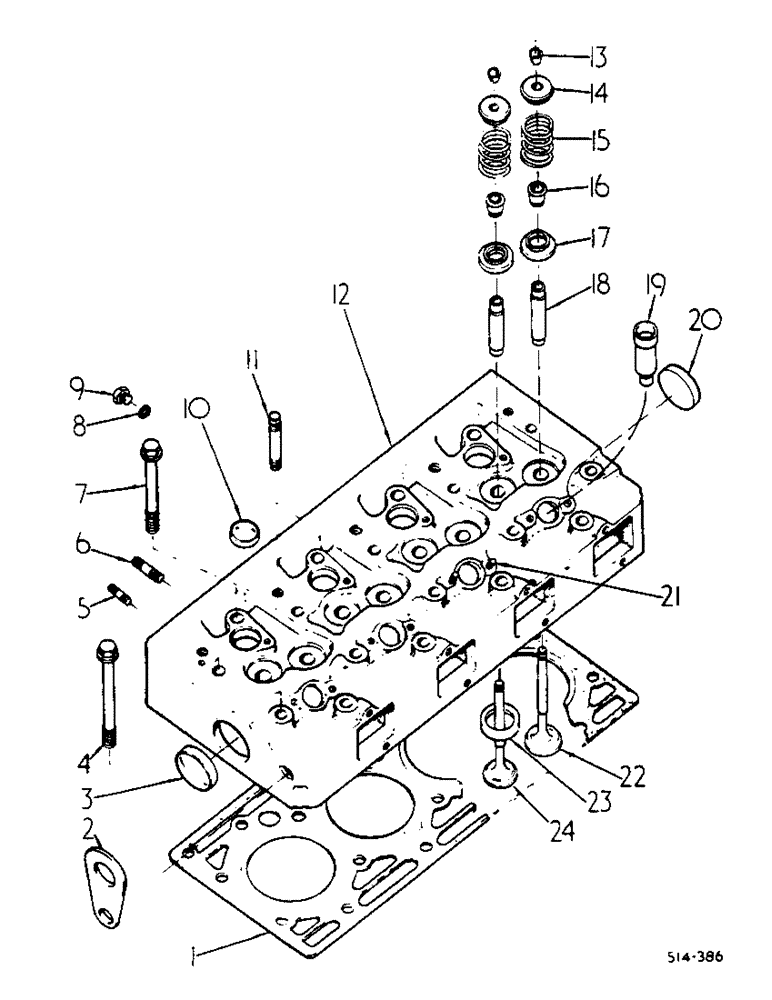

Запчасти Case IH 884 (12-34) - CYLINDER HEAD, VALVES AND STUDS Power
№
Артикул
Название
Примечание
Количество
1
3228362R1
CYLINDER HEAD GASKET
cylinder head
1шт.
2
3055370R1
STIRRUP
SHACKLE, engine mounting front
1шт.
271604
BOLT,Hex, 3/4" - 10 x 1 1/8", Gr 5
3/4 x 1-1/8 pln type 5
1шт.
3
934003R1
PLUG,M52, Conical
expansion
1шт.
4
3138748R1
BOLT,Flng, 9/16" - 12 x 5-3/4"
BOLT, cylinder head
10шт.
5
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
Water collecting pipe, replaces stud 3055221R91 Hex, 5/16"-18 x 7/8", G5, Full Thd
8шт.
6
3055663R1
STUD
exhaust 8 used - w/o coolant filter 6 used - w/coolant filter
1шт.
6
3228188R1
STUD
exhaust w/coolant filter
2шт.
7
3138747R1
BOLT,Cyl Hd, 9/16" - 12 x 123mm
cylinder head
8шт.
8
718743R1
SEALING RING,M10 x 16 x 1
Ring, Packing M10 x 16 x 1
1шт.
9
934259R1
PLUG,Hex, M10 x 1
1шт.
10
933537R1
PLUG,M25, Conical
expansion, 25 mm
4шт.
933573R1
PLUG,M32, Tapered
32 mm
1шт.
11
179894
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
Rocker shaft bracket replaces stud 3055220R1 Hex, 1/2"-13 x 3 1/4", G5
5шт.
12
3055367R97
HEAD (CYLINDER)
HEAD, guides and studs cylinder
1шт.
13
3055057R91
ROCKER ARM COTTER
KEY ASSY, spring lock valve
16шт.
14
3055058R2
SPRING CUP
CAP, valve spring retainer
8шт.
15
3055060R1
SPRING
valve
8шт.
16
3228677R91
SEAL
PACKAGE, valve stem seal replaces 2, 3218399R91
1шт.
17
3055059R91
CAP
ROTOCAP, valve replaces spacer 3218069R1
8шт.
18
3055022R2
VALVE GUIDE
GUIDE, valve stem
8шт.
19
3055344R1
SLEEVE
INSERT, nozzle holder
4шт.
20
934003R1
PLUG,M52, Conical
expansion
2шт.
21
NOT USED
1шт.
22
3055055R2
OVERSIZE INLET VALVE
VALVE, intake
4шт.
3132577R1
SEAT, VALVE
INSERT standard, O/D 44.09 mm
1шт.
3144754R1
SEAT, VALVE
INSERT o/size, O/D 44.24 mm
1шт.
3144755R1
RING
INSERT o/size, O/D 44.49 mm
1шт.
23
3132361R1
INSERT
exhaust valve seat .40MM/.016 inch O/S
4шт.
23
3132362R1
VALVE SEAT
INSERT, exhaust valve seat .15MM/.006 inch O/S
4шт.
24
3055056R2
STD EXHAUST VALVE
VALVE, exhaust
4шт.
3132764R1
ADAPTER
4шт.
Выбрано товаров: 32
