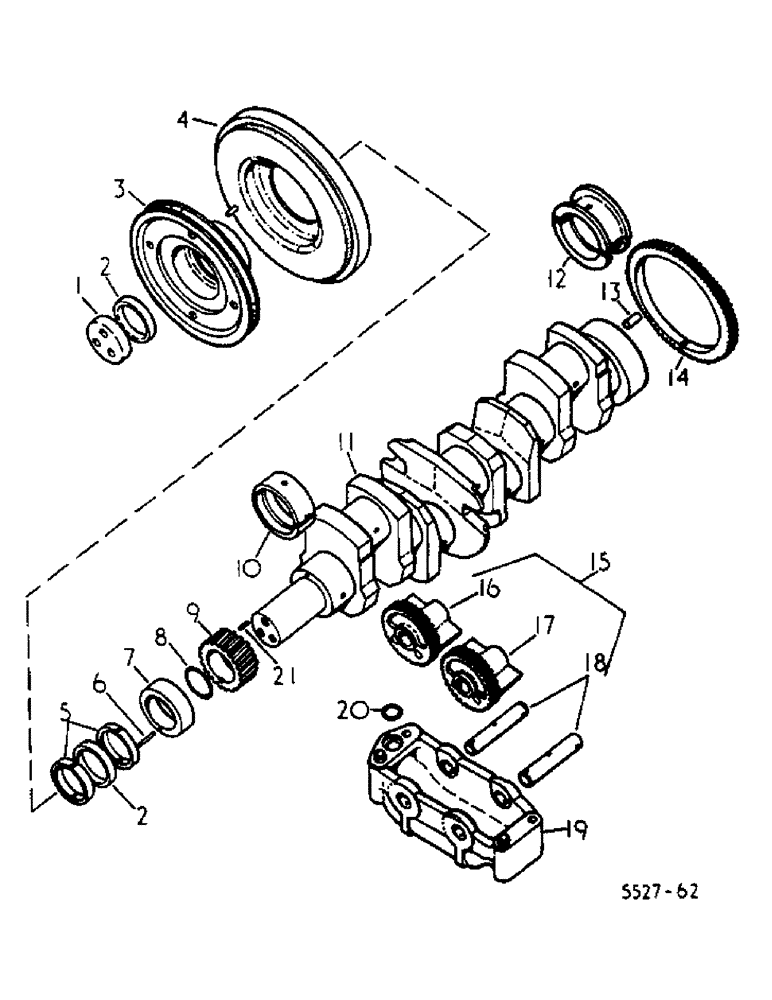

Запчасти Case IH 884 (12-29A) - CRANKSHAFT Power

1

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

pressure

1шт.

3

3136324R11

PULLEY

crankshaft w/pin

1шт.

932338R1

DOWEL,M4 x 14

PIN, dowel, Includes: bolt

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

933806R1

WASHER

6шт.

4

3136283R1

DAMPER

vibration

1шт.

5

3055152R91

RING

SPRING, annular

2шт.

6

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

7

NSS

NOT SOLD SEPARAT

RING ASSY, distance, order package, 3228133R94

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

9

3055028R1

PINION

GEAR, crankshaft pinion 33T

1шт.

10

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, main std.

1шт.

10

3056832R21

BEARING ASSY

BEARING, main .250 MM undersize

1шт.

10

3056877R21

BEARING ASSY

BEARING, main .500 MM undersize

1шт.

10

3055779R21

BEARING ASSY

main .750 MM undersize

1шт.

11

3228377R91

BEARING ASSY

.250MM undersize, complete, replaces 3144873R94, by also furnishing 4 connecting rods 3055030R24, consists of

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

3056820R11

BEARING ASSY

BEARING

1шт.

3056832R21

BEARING ASSY

BEARING

4шт.

3056834R11

BEARING ASSY

BEARING

4шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR

1шт.

141242

DOWEL

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

11

3228376R91

BEARING ASSY

std size - complete, replaces 3144872R94, by also furnishing 4 connecting rods 3055030R24, consists of

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

3055129R21

CRANKSHAFT BEARING

BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING

4шт.

3055351R91

BEARING ASSY

BEARING

4шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR

1шт.

141242

DOWEL

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

11

3228378R91

BEARING ASSY

.500 MM undersize, complete, replaces 3144878R94, by also furnishing 4 connecting rods 3055030R24, consists of

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

3056875R11

BEARING ASSY

BEARING

1шт.

3056877R21

BEARING ASSY

BEARING

4шт.

3056879R11

BEARING ASSY

BEARING

4шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR

1шт.

141242

DOWEL

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

12

3055129R21

CRANKSHAFT BEARING

BEARING ASSY, main std.

1шт.

12

3056820R11

BEARING ASSY

BEARING, main rear .250 MM undersize

1шт.

12

3056875R11

BEARING ASSY

BEARING, main rear .500 MM undersize

1шт.

12

3055776R11

BEARING ASSY

BEARING, main rear .750 MM undersize

1шт.

13

NLS

NO LONGER SERVICED

PIN, 3/8 x 7/8 pln uhdn dowel

1шт.

14

3144700R1

GEAR

balancer drive

1шт.

15

3144701R91

BALANCER

ASSY, complete, consists of ref. nos. 16 thru 19

1шт.

16

NSS

NOT SOLD SEPARAT

WEIGHT, balancer drive, order set 3228375R91

1шт.

17

NSS

NOT SOLD SEPARAT

WEIGHT, balancer idler, order set 3228375R91

1шт.

18

3132878R11

PIN,23mm OD x 93mm L

AXLE, balancer weight

2шт.

19

3144702R91

HOUSING

balancer weight w/bushings

1шт.

932229R1

SPLIT PIN/SAFETY PIN

PIN, 4 x 20MM roll

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

M2.5 x 20, Roll

2шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

7/16 x 3-1/4 pln type 5

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

7/16 x 3-1/2 pln type 5

1шт.

3218543R1

LOCK WASHER

lock

3шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

3055174R1

BUSHING

2шт.

20

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

21

932169R2

LARGE PIN

PIN, roll 4 x 10

2шт.

3228133R93

SEAL KIT

PACKAGE, crankshaft oil seal, consists

1шт.

NSS

NOT SOLD SEPARAT

RETAINER, distance

1шт.

NSS

NOT SOLD SEPARAT

SEAL, radial lip

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

RING, sealing

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN, 4M6x32

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN, 4M6x28

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

3228375R91

BALANCER

SET, matched-balancer weights assy, consists of ref. nos. 16 & 17

1шт.
