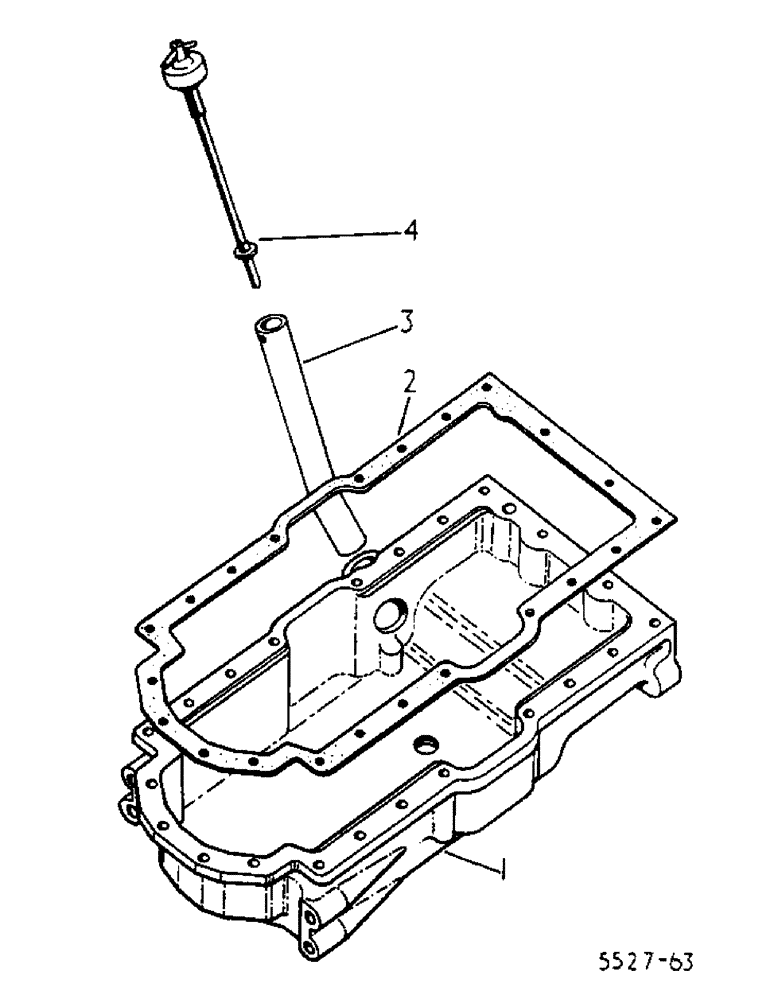

Запчасти Case IH 884 (12-29) - CRANKCASE OIL PAN Power

1

3228036R91

PAN, ENGINE OIL

PAN ASSY, oil

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

5/16 x 4-1/4 pln type 5

3шт.

186275

BOLT,Hex, 5/16" - 18 x 5 1/2", Gr 5

5/16 x 5-1/2 pln type 5

2шт.

181089

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

5/16 x 1-1/8 phc type 5

17шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

.344 x .688 x .089 phc hdn

22шт.

3132544R2

PLUG

filter and drain

1шт.

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, , Packing and drain M26 x 31 x 2

1шт.

2

3144697R1

GASKET

oil pan

1шт.

Old oil pan gasket.

1шт.

3

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE, oil filling

1шт.

4

3136242R2

DIPSTICK

GAUGE ASSY, oil level

1шт.
