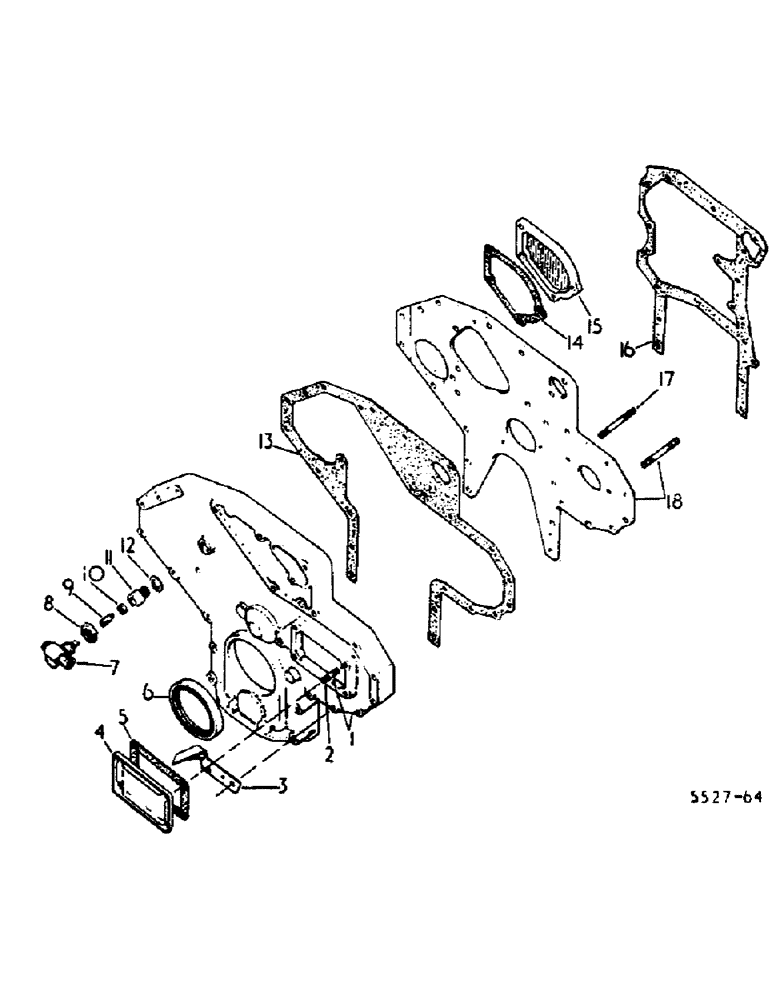

Запчасти Case IH 884 (12-28) - CRANKCASE FRONT COVER Power

1

3136057R14

COVER ASSY

crankcase front

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

9шт.

179827

FRONT AXLE

2шт.

9635082

NUT,5/16" - 18, Gr 5

7шт.

3050129R1

LOCK WASHER

WASHER, lock

5шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

6шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

3055242R1

STUD

crankcase front cover

4шт.

3

3136325R2

INDICATOR

timing

1шт.

4

3055140R1

COVER

injection pump

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

131042H

WASHER

11/32 x 11/16 x 16 ga

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

3138640R1

GASKET

injection pump cover

1шт.

6

3228133R93

SEAL KIT

PACKAGE, crankshaft oil seal replaces 3136724R93, consists of

1шт.

NSS

NOT SOLD SEPARAT

RETAINER, distance

1шт.

NSS

NOT SOLD SEPARAT

SEAL, radial lip

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

RING, sealing

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN, 4M6 x 32

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN, 4M6 x 28

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

7

3055982R93

DRIVE, ANGLE

1шт.

8

3132116R1

NUT

hex

1шт.

9

3056986R1

SUPPORT

COUPLING, drive angle

1шт.

10

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

RING, radial seal

1шт.

11

3055983R1

REDUCER FITTING

SPACER

1шт.

12

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing M18 x 24 x 1.5

1шт.

13

3055994R1

GASKET

crankcase front cover

1шт.

14

3132541R1

GASKET

closing cover

1шт.

15

3132540R1

COVER ASSY

Bosch injection

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

(5/16" med. lock) M8.2 ID x 16 OD x .9 Thk

1шт.

16

3055239R1

GASKET

front plate

1шт.

17

3055065R1

STUD

Bosch injection

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

3055996R11

PLATE ASSY.

PLATE ASSY, crankcase front, Bosch injection

1шт.

179814

SPACER

5/16 x 5/8 pln type 5

7шт.

3050129R1

LOCK WASHER

WASHER, lock

7шт.

20990R1

PLUG

hex hd

1шт.
