Запчасти Case IH 884 (12-24) - CRANKCASE SIDE COVER, TRACTORS WITH SIDE COVER BREATHER Power

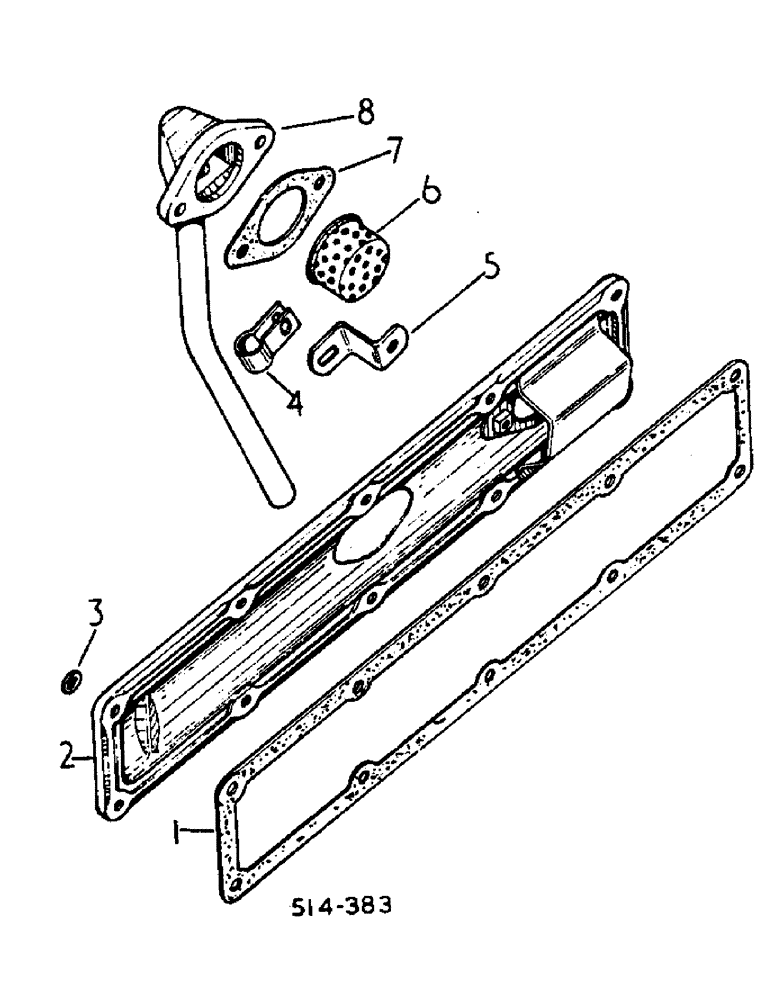

Схема запчастей Case IH 884 - (12-24) - CRANKCASE SIDE COVER, TRACTORS WITH SIDE COVER BREATHER Power
5
3
2
7
6
4
8
1

Артикул

Название

Примечание

Количество

1

3055393R3

GASKET

side cover

1шт.

2

3055314R21

COVER

ASSY, crankcase side

1шт.

179814

SPACER

5/16 x 5/8 pln type 5

12шт.

3050129R1

LOCK WASHER

WASHER, lock

12шт.

3

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.355 x .748 x .398

12шт.

4

3144023R1

CLAMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

3144022R1

BRACKET

LINK, fixing

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

9/16 x 3/4 pln type 1

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

6

3055324R92

HYDRAULIC OIL FILTER

ELEMENT ASSY, breather filter

1шт.

7

3138639R1

GASKET

crankcase breather

1шт.

8

3144020R91

BREATHER ASSY.

BREATHER ASSY, crankcase

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3138687R1

RING

packing

2шт.

3144789R1

COVER

used w/valve cover attachment

1шт.

Выбрано товаров: 18
