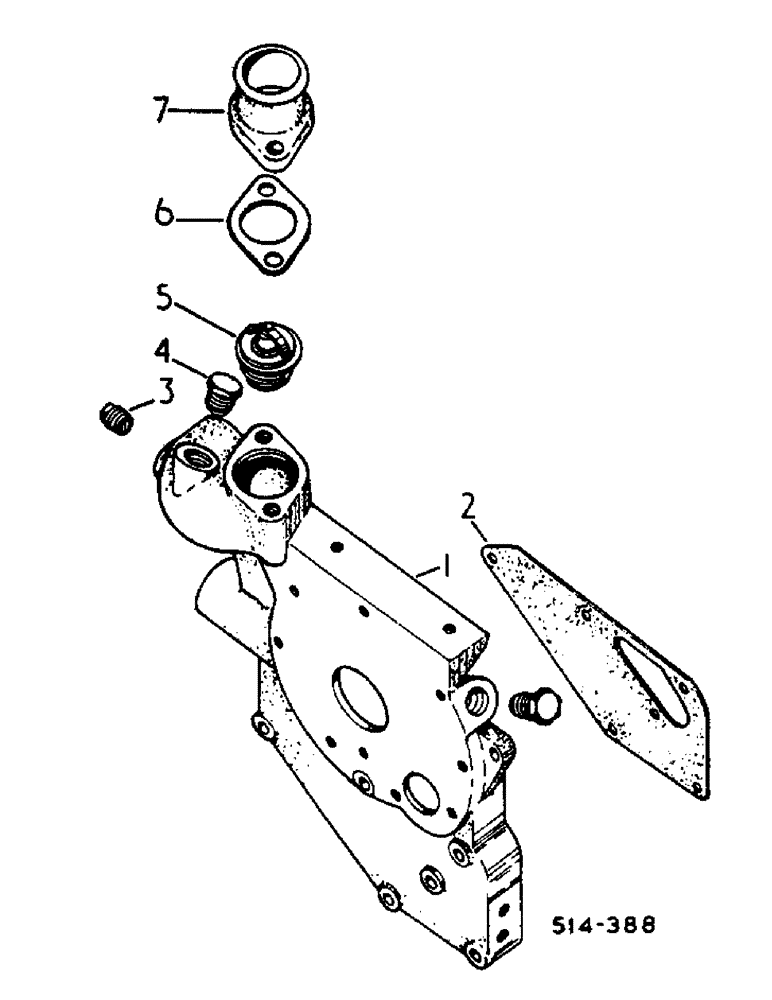

Запчасти Case IH 884 (12-20) - WATER PUMP CARRIER AND THERMOSTAT Power

1

3136678R2

COVER

CARRIER, water pump

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat

1шт.

3050129R1

LOCK WASHER

WASHER, .335 x .748 x .098

5шт.

2

3055999R1

GASKET

water pump carrier

1шт.

3

445686

PLUG

3/18-18 auto. hex hd pipe

1шт.

4

444630

PLUG,Hex Hd, 1/2"-14

1/2-14 auto. hex hd pipe

2шт.

5

3228046R1

THERMOSTAT

REPLACES 3059676R91

1шт.

6

3132143R1

GASKET

elbow

1шт.

7

3132142R2

FLANGE

water outlet

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

2шт.

3050221R1

LOCK WASHER

lock 3/8

2шт.
