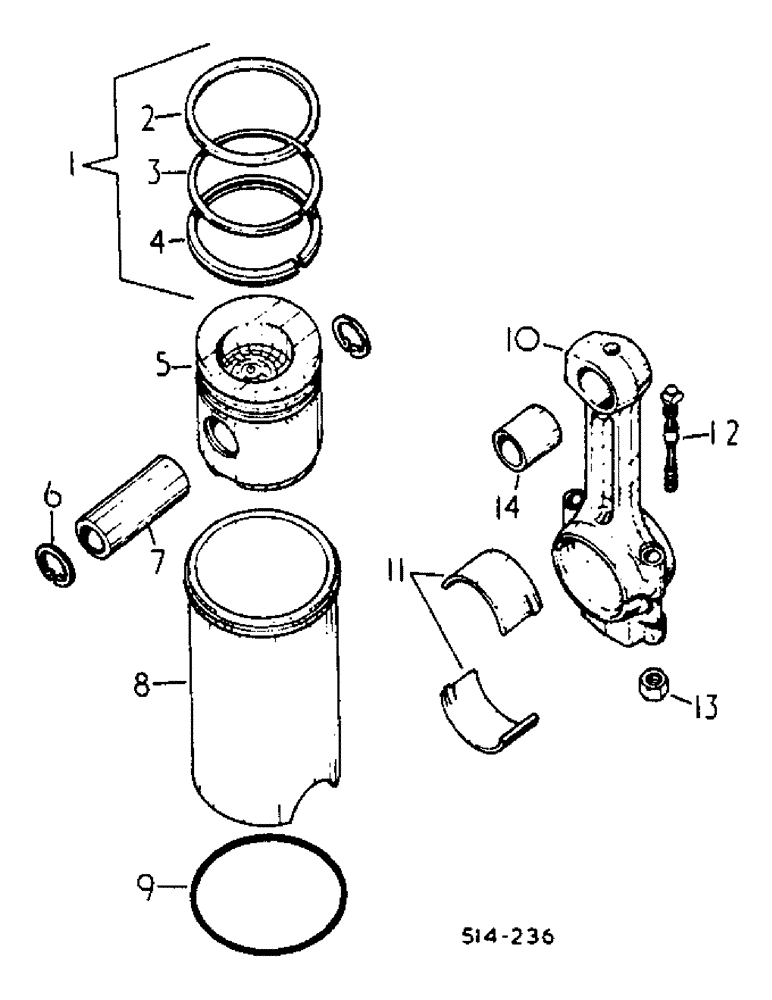

Запчасти Case IH 884 (12-19) - CONNECTING ROD, PISTONS AND SLEEVE Power

1

3144977R91

PISTON RING SET

RING, set, piston, used w/3 ring pistons

1шт.

2

NSS

NOT SOLD SEPARAT

RING, compression, first, used w/3 ring pistons, order set 3144977R91

4шт.

3

NSS

NOT SOLD SEPARAT

RING, compression, second, used w/3 ring pistons, order set 3144977R91

4шт.

4

NSS

NOT SOLD SEPARAT

RING, compression, third, used w/3 ring pistons, order set 3144977R91

4шт.

5

3218461R95

SLEEVE ASSY

PISTON W/SLEEVE (W/Rings)

4шт.

6

933327R1

SNAP RING,M36, Int

RING, piston pin retainer

8шт.

6

3228245R1

RING, SNAP

RING, piston pin retainer

8шт.

7

3055217R2

PISTON PIN

PIN, piston

4шт.

8

3144682R3

SLEEVE CYLINDER

SLEEVE, cylinder

4шт.

3218542R1

SHIM

cylinder sleeve, .80 mm

1шт.

3218541R1

SHIM

cylinder sleeve, .50 mm

1шт.

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

cylinder sleeve, .25 mm

1шт.

3218539R1

SHIM

cylinder sleeve, .05 mm

1шт.

3218538R1

SHIM

cylinder sleeve, .05 mm

1шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

cylinder sleeve packing

4шт.

Engine serial no. D050555 and above.

1шт.

9

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING, cylinder sleeve packing

4шт.

Engine serial no. D050554 and below.

1шт.

10

3144690R92

ROD, CONNECTING

ROD ASSY, connecting w/two bolts and bushing

4шт.

Engine serial no. D052919 and below

1шт.

10

3055030R24

ROD, CONNECTING

ROD ASSY, connecting w/two bolts & bushing

4шт.

Engine serial no. D052920 and above

1шт.

11

3144688R92

BEARING,CON.ROD

BEARING ASSY, connecting rod, 750 mm

4шт.

.030 U/S for below serial no. per bin check in KCY

1шт.

Engine serial no. D052919 and below

1шт.

11

3055351R91

BEARING ASSY

BEARING ASSY, connecting rod, std

4шт.

Engine serial no. D052920 and above

1шт.

11

3056834R11

BEARING ASSY

BEARING ASSY, con. rod - .250MM U/S

1шт.

Engine serial no. D052920 and above

1шт.

11

3056879R11

BEARING ASSY

BEARING ASSY, con. rod - .500MM U/S

1шт.

Engine serial no. D052920 and above

1шт.

.030 U/S for up to serial number

1шт.

11

3055781R11

BEARING ASSY

750 mm ( .030 U/S)

1шт.

.030 U/S for up to serial number

1шт.

Has right hand tab looking at bearing longway with brg laying on the round - tab away from you - cannot be used in left tab applications

1шт.

11

3144876R92

SET

BEARING ASSY, con. rod - .250MM U/S

1шт.

Engine serial no. D052919 and below

1шт.

11

3144881R92

BEARING,CON.ROD

BEARING ASSY, con. rod - .500MM U/S

1шт.

Engine serial no. D052919 and below

1шт.

12

3055033R11

BOLT

W/Nut, Connecting rod

8шт.

13

NSS

NOT SOLD SEPARAT

NUT, connecting rod bolt

8шт.

14

3132018R1

BUSHING

piston pin

4шт.
