(12-10) - FUEL SHUT-OFF CONTROLS, SERIAL NO. 6621 AND ABOVE

Запчасти Case IH 884 (12-10) - FUEL SHUT-OFF CONTROLS, SERIAL NO. 6621 AND ABOVE Power

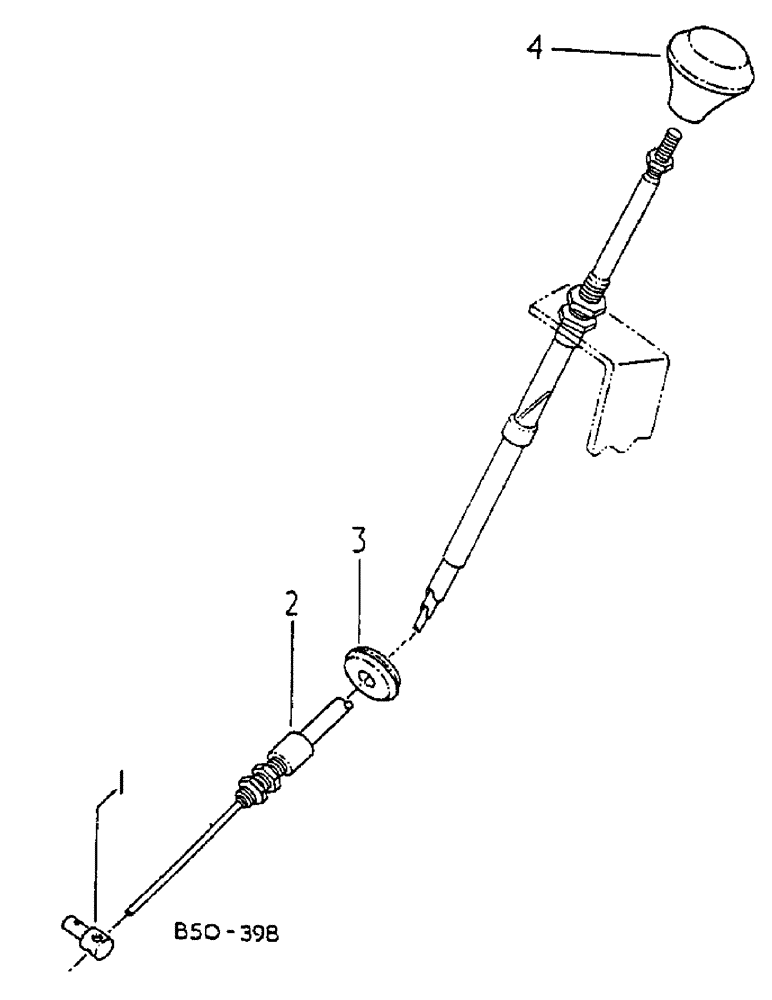

Схема запчастей Case IH 884 - (12-10) - FUEL SHUT-OFF CONTROLS, SERIAL NO. 6621 AND ABOVE Power
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

787190R1

COLLAR

PIVOT, fuel shut-off lever swivel, replaces 396388R1

1шт.

2

3234947R2

CABLE

fuel shut-off control replaces 3129712R1

1шт.

1288353C1

BOOT

1шт.

3

NOT USED THIS APPLICATION

1шт.

4

3221357R1

BUTTON

KNOB, fuel shut-off

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

1шт.
