Запчасти Case IH 884 (12-09) - FUEL SHUT-OFF CONTROLS, SERIAL NO. 6620 AND BELOW Power

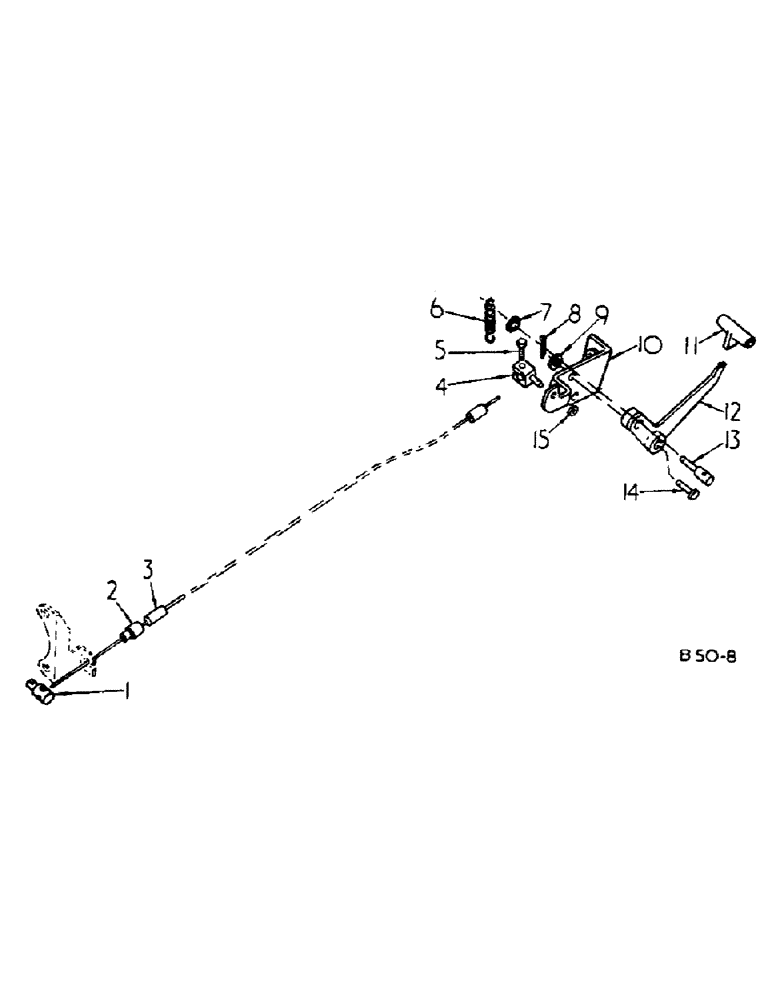

Схема запчастей Case IH 884 - (12-09) - FUEL SHUT-OFF CONTROLS, SERIAL NO. 6620 AND BELOW Power
7
15
6
5
10
1
8
9
3
2
11
14
12
4
13

Артикул

Название

Примечание

Количество

1

396388R1

PIVOT

fuel shut off lever swivel

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

no. 8 x 3/8 znp fil/hds mach

1шт.

446179

WASHER,#12

.250 x .500 x .036

1шт.

2

677516R1

BUSHING

fuel shut off control cable

1шт.

3

529001R1

CABLE

fuel shut off control, Bosch injection

1шт.

4

534621R1

CLAMP

cable swivel

1шт.

4

536852R1

CLAMP

cable swivel

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

453284

NUT,#10-32

no. 10-NF cad mach screw type 1

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

5

454065

SCREW,Hex Hd, #10-32 x 3/4"

10/32 x 3/4 C-Z hex hd mach

1шт.

6

528998R2

SPRING

fuel shut off control cable

1шт.

7

528999R1

CIRCLIP

RETAINER, fuel shut off control cable spring

1шт.

7

531714R1

CIRCLIP

RETAINER, fuel shut off control cable spring

1шт.

8

648002

KNIFE

1/8" x 3/4"

1шт.

9

469668R1

WASHER

3/8 x 13/32 x .060 C-Z

1шт.

10

528992R1

BRACKET

ASSY, fuel shut off lever

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

11

3121392R1

KNOB

fuel shutoff control cable

1шт.

12

531335R1

ARM ASSY.

ARM ASSY, fuel shut off control

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

no. 8 x 5/8 znp fil/hds mach

1шт.

13

528997R1

BRACKET, PIVOT

SWIVEL, fuel shut off control cable

1шт.

14

23369R1

HEADED PIN,3/8" x 7/8"

PIN, HEADED, 3/8" x 7/8"

1шт.

15

446179R1

WASHER, 1/4 x 1/2 x .036

1шт.

Выбрано товаров: 25
