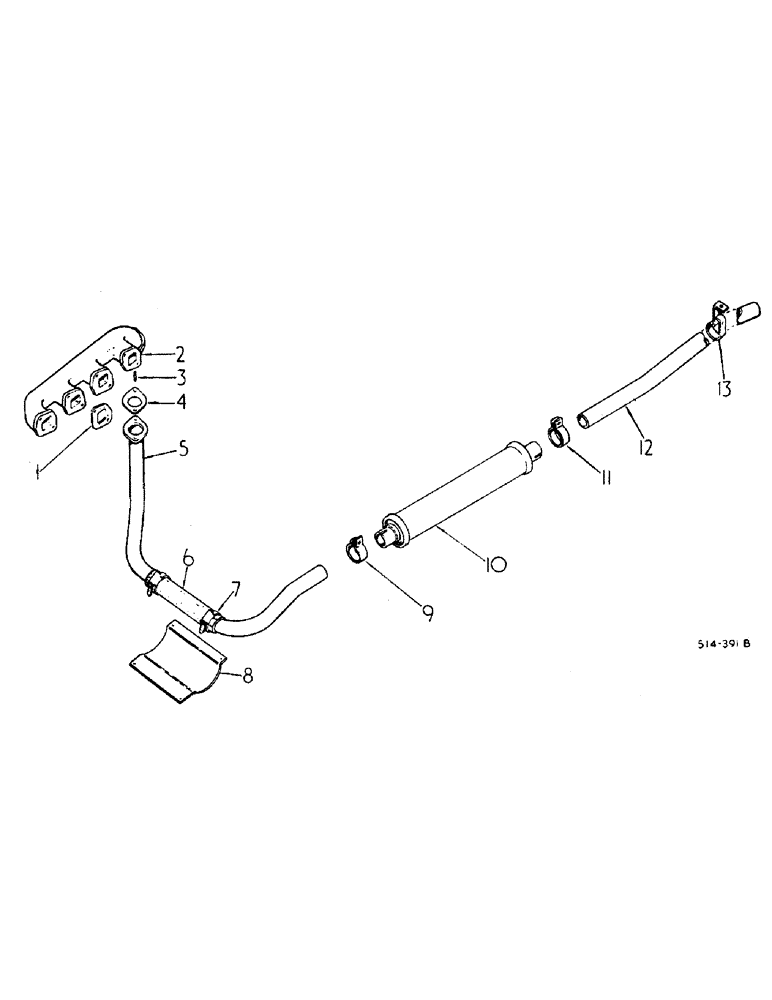

Запчасти Case IH 884 (12-07) - UNDERSLUNG EXHAUST Power

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

2

3055276R12

MANIFOLD ASSY

exhaust

1шт.

103026

NUT,3/8"-24, G5

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20285H

WASHER

.406 x .750 x .105 pln

8шт.

3

3055663R1

STUD

exhaust manifold

2шт.

4

401486R1

MANIFOLD GASKET

exhaust manifold pipe

1шт.

5

401485R12

PIPE ASSY.

PIPE ASSY, exhaust manifold

1шт.

5

66287C91

PIPE

ASSY, exhaust manifold, low profile tractors

1шт.

6

NOT USED THIS APPLICATION

1шт.

7

NOT USED THIS APPLICATION

1шт.

8

401488R1

GUARD

pipe

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

67672C1

CLAMP

muffler

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

10

401489R2

MUFFLER

1шт.

11

67672C1

CLAMP

muffler

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

401490R2

PIPE

tail

1шт.

13

3125262R1

SUPPORT

tail pipe rear

1шт.

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

5/8 x 7/8 znd type 5

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
