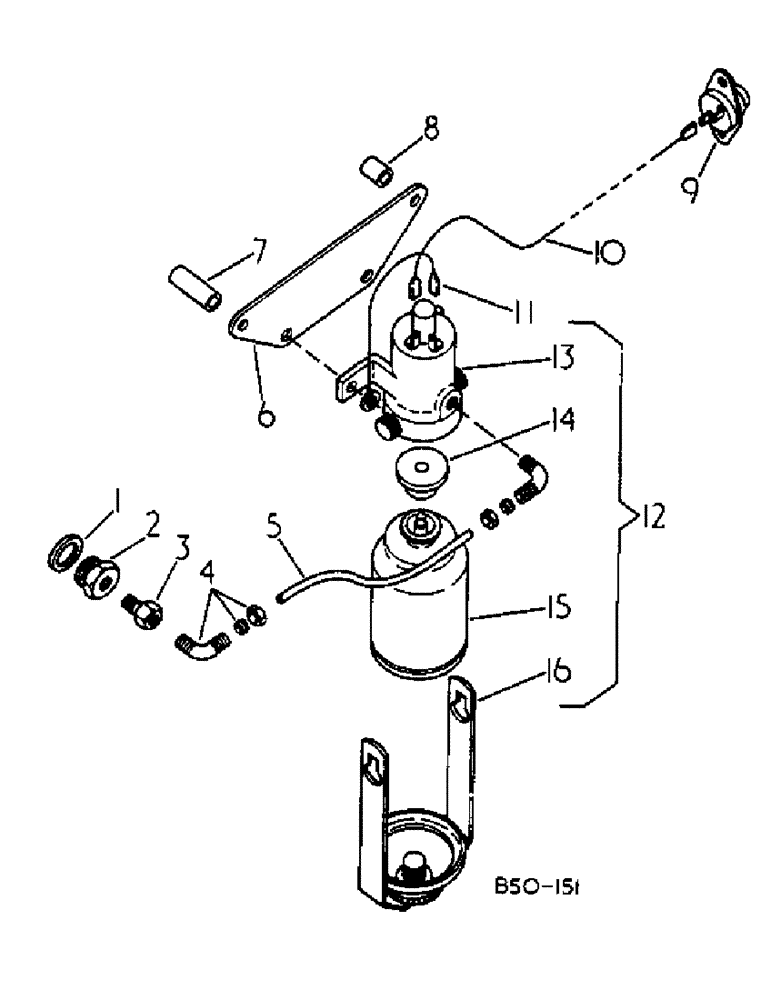

Запчасти Case IH 884 (12-06) - ETHER STARTING Power

1

933945R1

SEALING RING,M23 x 28 x 2.5

RING, packing

1шт.

2

3116081R1

JET

ADAPTOR, ether nozzle

1шт.

3

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

4

140304

ELBOW

1/8-27 90 deg ball sleeve tube

2шт.

5

NSS

NOT SOLD SEPARAT

PIPE, injection feed furnish 8.27 inches from 20 ft roll marked 995059R1

1шт.

6

3125259R1

SUPPORT

injection mounting

1шт.

7

611112R1

SPACER,1/8" Pipe x 13/16"

1/8 x .812 std pipe, replaces 1106106C1

1шт.

702222

SUPPORT

1/4 x 2-1/4 pln type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

611112R1

SPACER,1/8" Pipe x 13/16"

1/8 x .812 std pipe, replaces 301645R1

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

397940R93

SWITCH

push button ether

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, no. 10 x 3/8 znp p/hds mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

10

NOT USED THIS APPLICATION

1шт.

11

NOT USED THIS APPLICATION

1шт.

12

533231R92

SOLENOID

INJECTOR ASSY, ether, consists of items 13 thru 16

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

13

NSS

NOT SOLD SEPARAT

INJECTOR ASSY

1шт.

14

395686R1

GASKET

ether starting injector

1шт.

15

385064R91

FLUID

ether starting, 12 oz can

1шт.

16

121851C1

RETAINER

ether fluid cannister

1шт.
