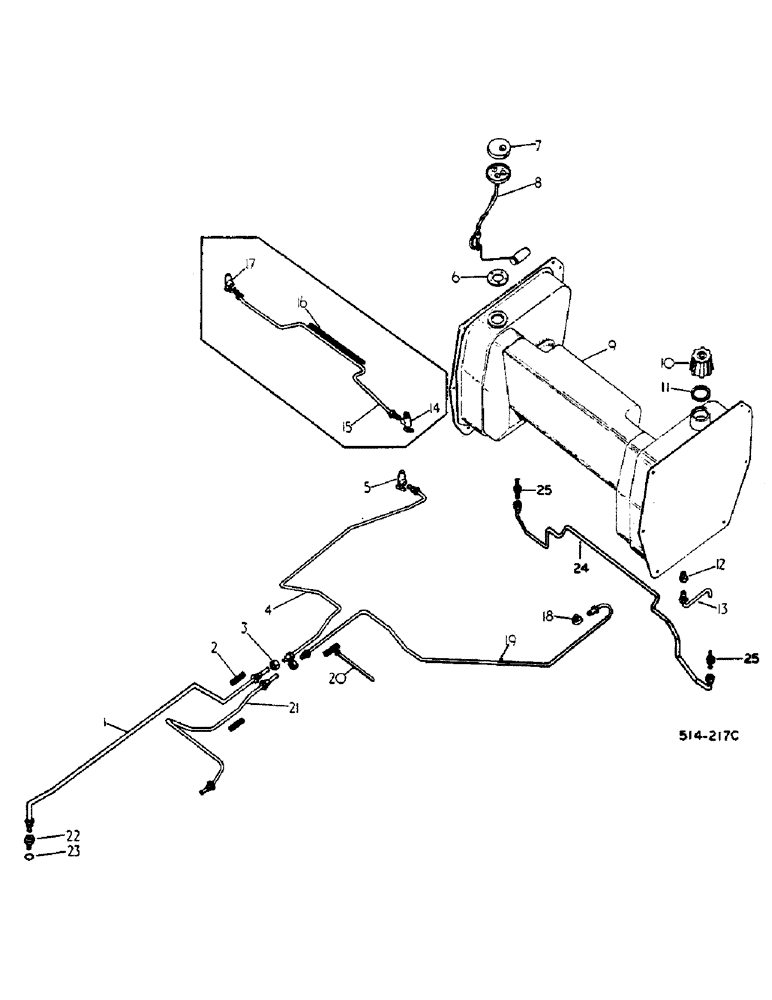

Запчасти Case IH 884 (12-05) - FUEL TANK AND PIPING Power

1

3125846R1

PIPE ASSY.

PIPE ASSY, union to filter, Bosch injection cr pump

1шт.

2

536009R1

FUEL HOSE,0.31" ID x 2.50"

0.31" ID x 2.50"

3шт.

3

442337

NUT

UNION, 5/16 pln inv fld tube

2шт.

3

442395

FITTING

UNION, 5/16 inv fld tube

2шт.

4

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE ASSY, union to shutoff valve replaces 3121561R1

1шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSY, shutoff

1шт.

6

528359R1

GASKET

sending unit

1шт.

7

528360R2

COVER

sending unit

1шт.

8

529790R1

SENDER UNIT

TRANSMITTER, fuel gauge, AC Delco, used w/gauge 3121239R1

1шт.

8

3129841R91

FUEL GAUGE

TRANSMITTER, fuel gauge, Icknield, used w/gauge 3129840R1

1шт.

443874

BRACKET

no. 10 x 1/2 znp h/hd mach

5шт.

159908

GASKET

no. 10 x 3/8 znp p/hdcr mach

1шт.

533199R1

SEALING WASHER

sending unit cover sealing

4шт.

796002R1

COPPER WASHER

WASHER, .197 x .334 x .036 copper

1шт.

9

536035R93

FUEL TANK

TANK ASSY, fuel w/filler cap

1шт.

120376

NUT,5/16"-18, G5

8шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

8шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

10

536845R1

PLUG

CAP ASSY, fuel tank filler

1шт.

10

538063R1

PLUG

CAP ASSY, fuel tank filler

1шт.

11

23977DB

GASKET

fuel tank filler cap

1шт.

12

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

CONNECTOR, 1/8 pt x 5/16 inverted flared tube, used w/underslung exhaust

1шт.

13

539938R1

VENTILATION PIPE

TUBE ASSY, tank breather, used w/underslung exhaust

1шт.

539940R1

CLIP

breather line

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 3/4 type 5

1шт.

14

536002R1

VALVE

ASSY, shutoff, used w/tube 3121190R1

1шт.

15

3121190R1

TUBE

ASSY, crossover

1шт.

16

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer Used W/Tube 3121190R1 0.31" ID x 10.00"

1шт.

17

536002R1

VALVE

ASSY, shutoff, used w/tube 3121190R1

1шт.

18

137422

ELBOW

inverted flare 90 deg

1шт.

19

537538R1

TUBE ASSY.

TUBE ASSY, fuel return rear, Z pattern shift

1шт.

19

3129262R1

PIPE

TUBE ASSY, fuel return rear, H pattern shift

1шт.

19

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE ASSY, fuel return rear, tractor w/double aux valves

1шт.

20

289862C1

CABLE TIE,3/16" x 7"

STRAP

3шт.

21

3112790R1

PIPE

ASSY, fuel return front

1шт.

22

3056600R1

ADAPTER

1шт.

23

936610R1

RING, packing

1шт.

24

1502067C1

TUBE ASSY.

TUBE ASSY, balance

1шт.

25

1502069C1

PIPE

ASSY, crossover

1шт.

538393R1

FILLER CAP

PLUG, fuel tank vent pipe flange, used w/vertical exhaust

1шт.

366460R1

CABLE CLIP

CLIP, fuel sender cable

2шт.

3116908R1

CLIP,ELECTRICAL

CLIP, fuel tank

2шт.
