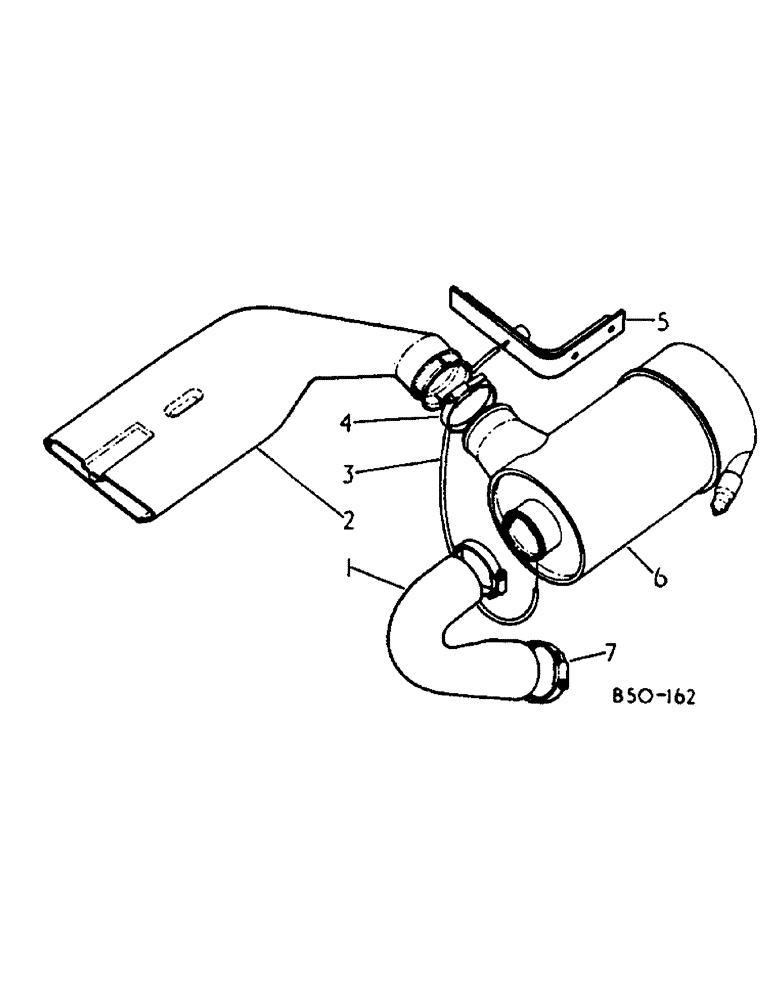

Запчасти Case IH 884 (12-02) - AIR CLEANER AND CONNECTIONS, WITH AIR INLET DUCT, SERIAL NO. 8000 AND BELOW Power

1

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

- Air Cleaner Outlet 69.80 mm ID x 194.30 mm

1шт.

2

529864R1

DUCT

air inlet

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE, air cleaner restriction ind use 230 MM-9 inches, from bulk roll marked 990015C1

1шт.

4

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, no. 48 type F hose

1шт.

5

3121420R1

SUPPORT

BRACKET, air cleaner mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

3125248R91

AIR CLEANER

CLEANER ASSY, air for components see list of parts under air cleaner assy

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 shoe type F hose

2шт.
