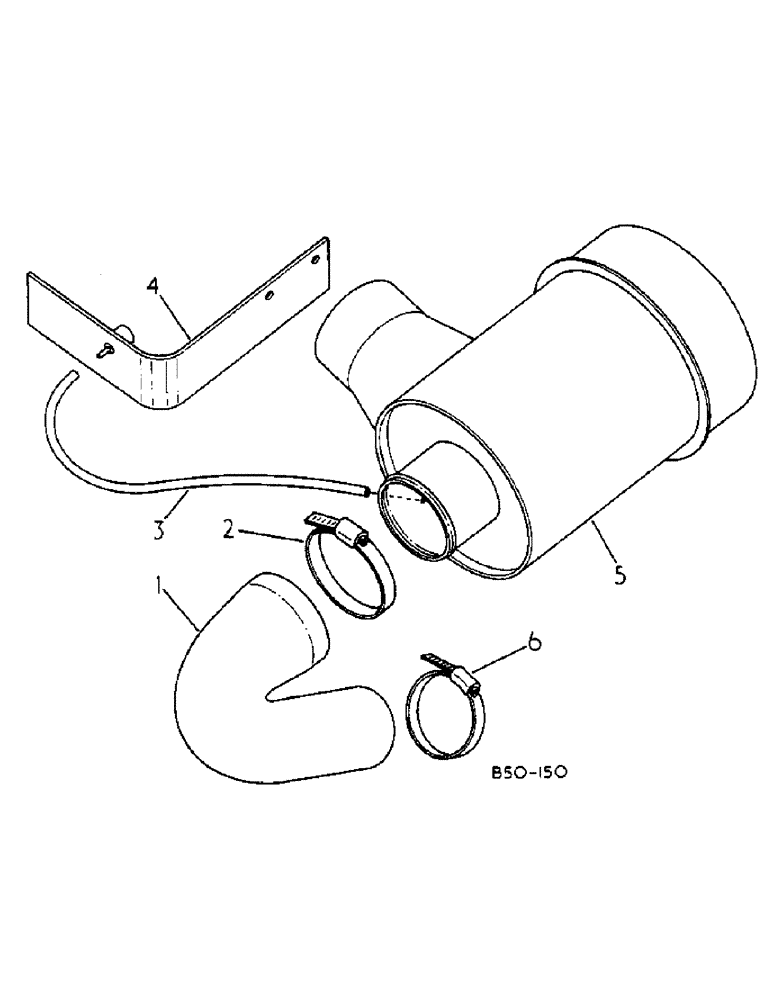

Запчасти Case IH 884 (12-01) - AIR CLEANER AND CONNECTIONS, WITHOUT AIR INLET DUCT, SERIAL NO. 8000 AND BELOW Power

1

3125121R2

HOSE

air cleaner outlet

1шт.

2

894005H1

CLAMP

hose no. 400S

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE, air cleaner restriction ind use 230MM, 9 inches from bulk roll marked 990015C1

1шт.

4

3121420R1

SUPPORT

BRACKET, air cleaner mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

3125118R92

CLEANER

ASSY, air, Coopers, for components see list of parts under air cleaner

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

539994R1

CLAMP

hose no. 350S

1шт.
