Запчасти Case IH 884 (04-03) - BRAKE RESERVOIR AND HOSES, SERIAL NO. 1029 AND ABOVE (5.1) - BRAKES

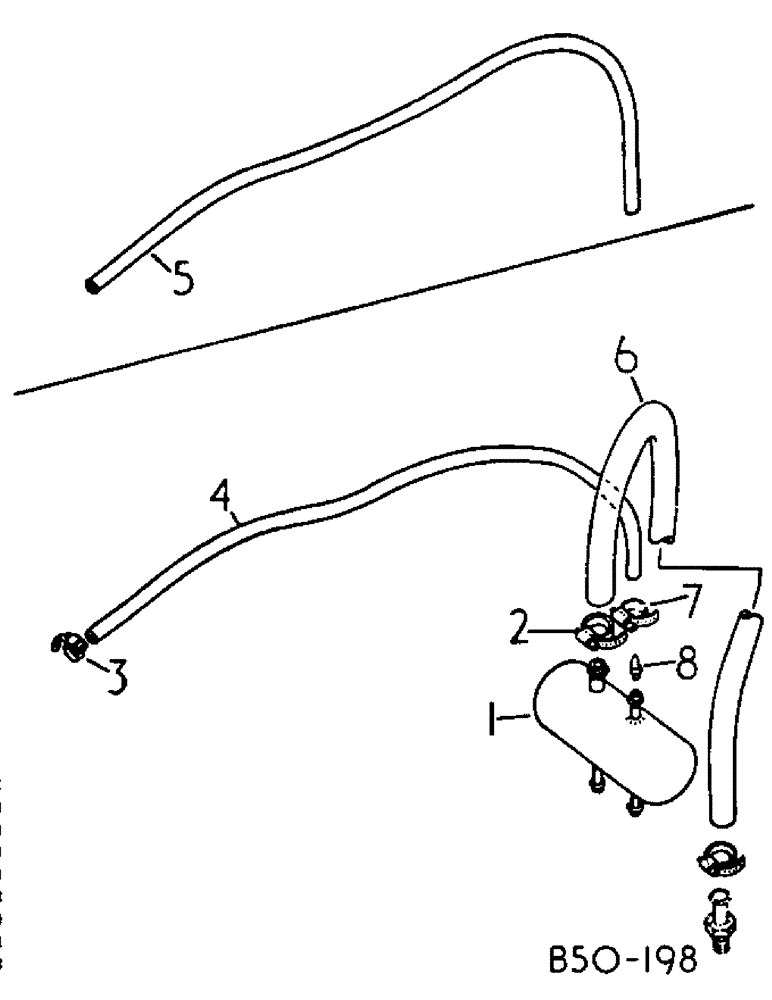

Схема запчастей Case IH 884 - (04-03) - BRAKE RESERVOIR AND HOSES, SERIAL NO. 1029 AND ABOVE (5.1) - BRAKES
2
5
6
3
8
7
4
1

Артикул

Название

Примечание

Количество

1

1287885C1

RESERVOIR

brake, Replaces: P/N 3125839R1

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 hose

2шт.

2

3074617R1

CLAMP

CLIP, hose

2шт.

3

3125239R1

COLLAR

CLAMP, work drive hose

2шт.

4

NOT USED THIS APPLICATION

1шт.

5

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

brake reservoir supply

1шт.

6

3125842R1

HOSE,13.50 mm ID x 250.00 mm, SAE 100R6 Class 14

brake reservoir dump

1шт.

7

3125239R1

COLLAR

CLAMP, work drive hose

1шт.

8

537518R1

SCREEN

AND ORIFICE ASSY, brake

1шт.

Выбрано товаров: 9
