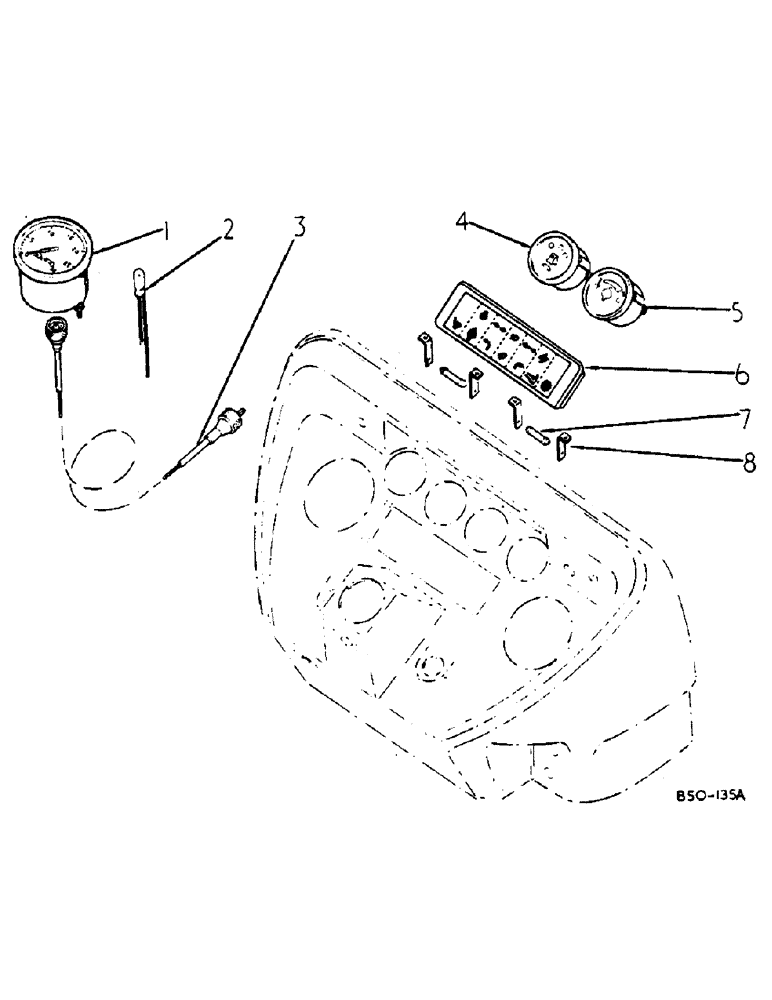

Запчасти Case IH 884 (11-02) - INSTRUMENTS Instruments

1

66455C1

GAUGE

TACHOMETER - OR -

1шт.

Supplied since 1980 by Icknield, this is a 2150 RPM tach now supplied by Stewart Warner

1шт.

1

3125106R92

TACHOMETER

1шт.

2

3041099R1

LAMP

12V 2.2W mes cap, used w/66455C1 tachometer, Icknield

1шт.

2

3123661R1

HOLDER

LAMP ASSY, tachometer/speedometer

2шт.

529233R1

LAMP

12V-3W wedge type capless

8шт.

3125084R91

CABLE

ASSY, tachometer illumination

1шт.

3

529234R1

CABLE,1480.32mm L

CABLE ASSY, tachometer drive

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, tachometer cable

2шт.

4

3121239R1

FUEL GAUGE

GAUGE ASSY, fuel, AC Delco, use only w/AC Delco sending unit 529790R1 - OR -

1шт.

4

3129840R1

FUEL GAUGE

GAUGE ASSY, fuel, Icknield, use only w/Icknield sending unit 3129841R91

1шт.

5

3121240R1

ELECTRICAL GAUGE

GAUGE ASSY, water temp, AC Delco, use only w/AC Delco sending unit 3073787R91 - OR -

1шт.

5

3127959R1

ELECTRICAL GAUGE

GAUGE ASSY, water temp, Icknield, use only w/Icknield sending unit 3127956R1

1шт.

6

1502006C1

HOLDER

warning light bulb, replaces 3121636R1

1шт.

3121718R1

SCREW

no. 6-32 x 5/8 cs hd

4шт.

3121717R1

LOCK NUT

lokut

4шт.

529233R1

LAMP

12V-3W wedge type capless

6шт.

7

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

2шт.

8

3121705R1

CONTACT HOUSING

lamp

4шт.

3121704R1

SCREW

no. 4-40 x 5/16 slt fil hd

4шт.

3121703R1

TERMINAL CONNECTOR

TERMINAL, 1/4 blade

4шт.

1093226R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, speed chart MPH, for machines w/dt drive train, for machines w/16.9/14-30, 13.6/12-36, 18.4/15-30, 13.6/12-38, 16.9/14-34, 13.6R36, 13.6R38, 16.9R34 rear tires

1шт.

1093382R1

PRODUCT GRAPHIC

speed chart MPH, for machines w/et drive train, for machines w/16.9/14-30 rear tires

1шт.

1093368R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, speed chart MPH, for machines w/br drive train, 4 wheel drive w/13.6/12-38, 16.9/14-30, 16.9/14-34, 18.4/15-30, 16.9R30, 18.4R30, 16.9R34, 13.6R38 rear tires

1шт.

1093095R1

DECAL

PRODUCT GRAPHIC, speed chart MPH, for machines w/bt drive train, for machines w/16.9-30, 18.4-30 or 16.9-34 rear tires

1шт.
