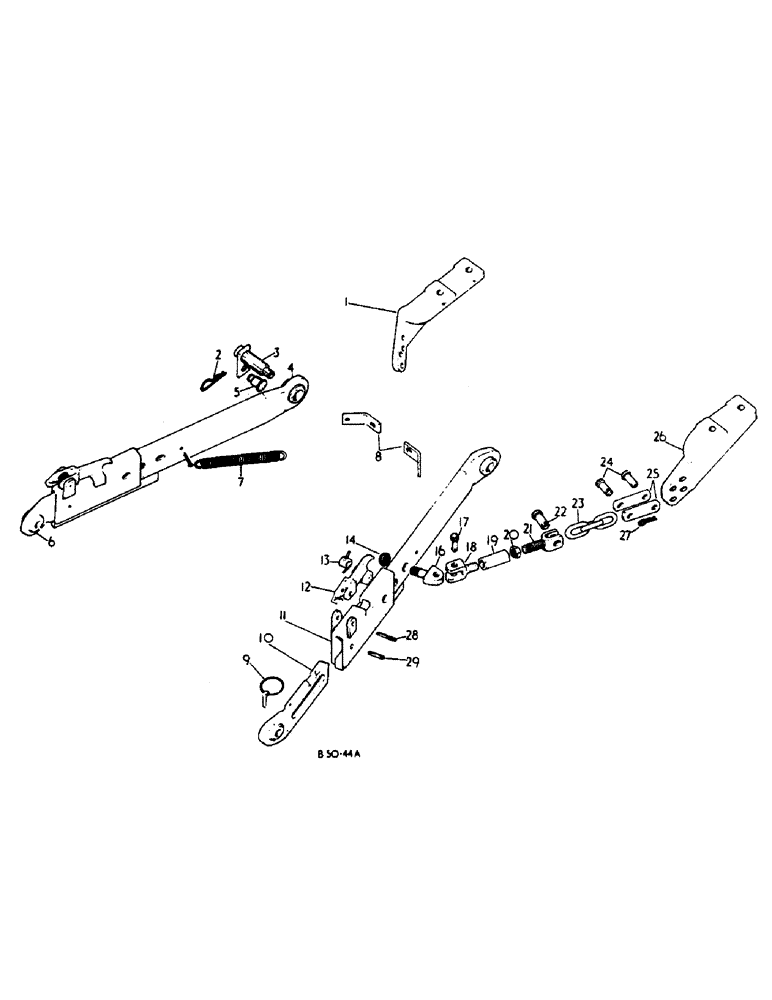

Запчасти Case IH 884 (09-08) - LOWER LINKS, 3 POINT HITCH, TELESCOPIC LOWER LINKS WITH OUTSIDE CHECK CHAINS, 33 INCH (12) - FRAME

1

529874R1

SUPPORT

BRACKET, check chain LH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

538406R1

COTTER PIN

PIN, QA cotter

2шт.

3

3118060R1

PIN

lower link

2шт.

4

3121157R91

LOWER LINK

LINK ASSY, front section LH lower

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

5

3118063R1

PIN

lower link drawbar

2шт.

6

403019R2

END FITTING

LINK ASSY, rear section LH lower

1шт.

7

662632R1

SPRING

check chain restraining

2шт.

8

3121228R1

BRACKET

sway chain

2шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 pln type 5

4шт.

9

533189R1

PIN

ASSY, lower link drawbar

2шт.

10

403020R2

END FITTING

LINK ASSY, rear section RH lower

1шт.

11

3121158R91

LOWER LINK

LINK ASSY, front section RH lower

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

12

403023R1

LATCH

rear section lower

2шт.

13

403024R1

SPRING

2шт.

14

536658R1

WASHER

grooves

2шт.

15

529895R1

CLIP

PIN, spring

2шт.

16

3113599R1

BOLT,7/8" - 14 x 1.90"

eye

2шт.

17

528112R2

PIN,15.77mm OD x 54.61mm L

limited chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

18

3118016R1

CLEVIS,7/8" - 14

limiter chain LH thd

2шт.

19

3116619R1

NUT

adjustment

2шт.

20

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8-14 hex jam

2шт.

21

70622C1

CLEVIS,7/8" - 14

limiter chain

2шт.

22

403037R2

PIN

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

23

3113595R1

CHAIN,139.7mm L

CHAIN, limiter

2шт.

24

528112R2

PIN,15.77mm OD x 54.61mm L

limiter chain

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

25

3113594R1

PLATE

STRAP, check chain adj

4шт.

26

529875R1

SUPPORT

BRACKET, check chain RH

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 pln type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

720631R1

LINCH PIN

PIN, adj strap cotter

2шт.

28

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

29

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.

1092798R2

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, sway chains

1шт.
