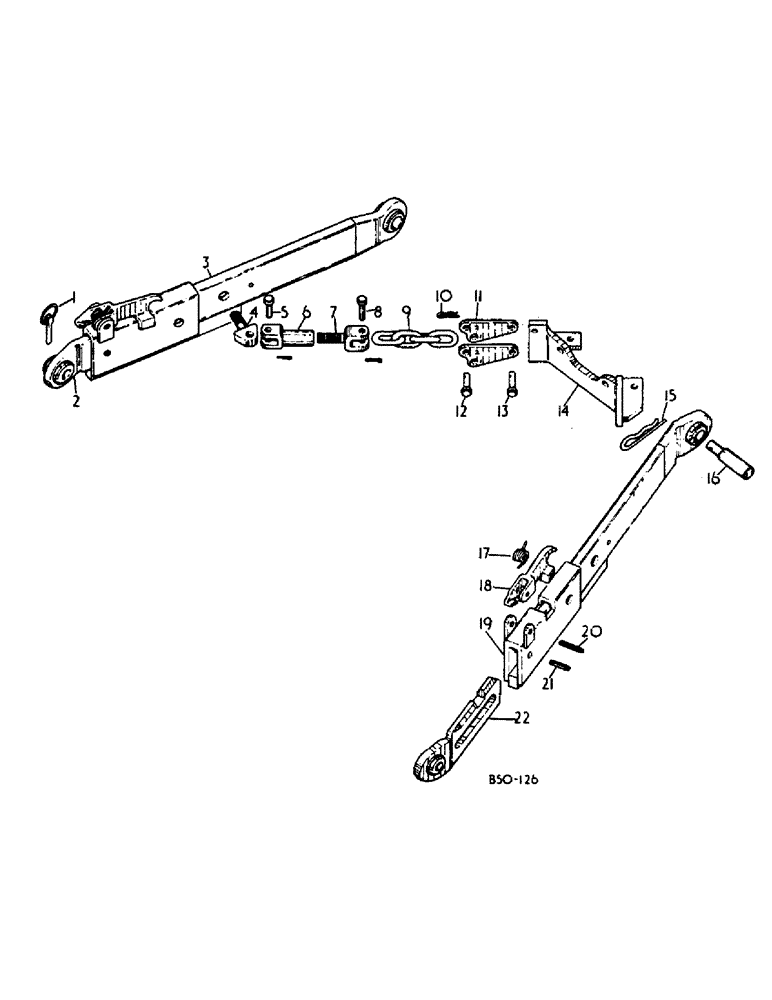

Запчасти Case IH 884 (09-07) - LOWER LINKS, 3 POINT HITCH, TELESCOPIC LOWER LINKS WITH INSIDE CHECK CHAINS, 33 INCH (12) - FRAME

1

533189R1

PIN

ASSY, lower link

2шт.

2

403019R2

END FITTING

LINK ASSY, rear section LH lower

1шт.

3

527970R1

LOWER LINK

LINK ASSY, front section L.H. lower

1шт.

4

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT, eye

2шт.

19853R1

LOCK NUT,7/8"-14

NUT, 7/8-EF P/T lock

2шт.

5

528112R1

PIN

limiter

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

6

527978R1

YOKE,7/8" - 14

ASSY, limiter chain

2шт.

7

70622C1

CLEVIS,7/8" - 14

limiter chain

2шт.

8

403037R2

PIN

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

9

403038R1

CHAIN (AG)

CHAIN, limiter

2шт.

10

460047R1

CLIP, SPRING

PIN, quick attachable cotter

2шт.

11

403036R1

LARGE PLATE

STRAP, limiter chain adj

4шт.

12

403037R1

PIN

limiter chain

2шт.

13

403043R1

PIN

limiter chain front

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

14

3123737R1

BRACKET

check chain

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 pln type 5

4шт.

15

538406R1

COTTER PIN

PIN, quick attachable cotter

2шт.

16

67829C1

PIN,28.57mm OD x 108.61mm L

lower link

2шт.

17

403024R1

SPRING

2шт.

18

403023R1

LATCH

rear section lower

2шт.

19

527971R1

LOWER LINK

LINK ASSY, front section R.H. lower

1шт.

20

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

21

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.

22

403020R2

END FITTING

LINK ASSY, rear section RH lower

1шт.
