Запчасти Case IH 884 (09-06) - 3 POINT HITCH STABILIZER, ROW CROP TRACTORS (12) - FRAME

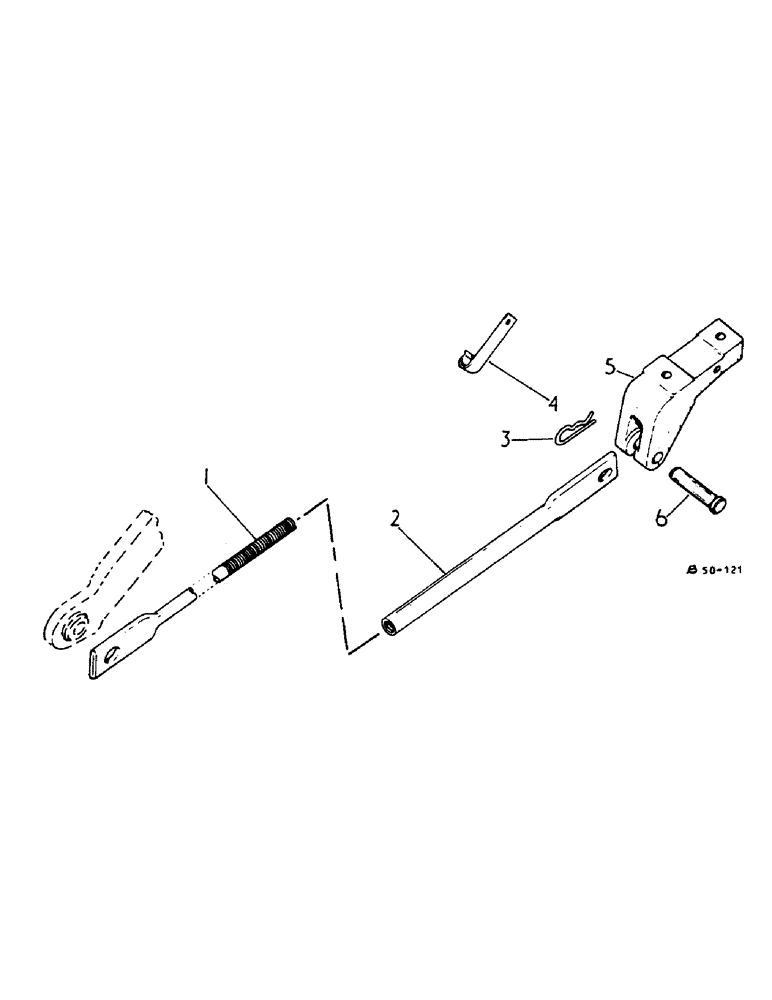

Схема запчастей Case IH 884 - (09-06) - 3 POINT HITCH STABILIZER, ROW CROP TRACTORS (12) - FRAME
2
6
5
3
1
4

Артикул

Название

Примечание

Количество

1

380578R1

ROD

stabilizer end

2шт.

2

529345R1

TUBE

stabilizer end rod

2шт.

3

520175R1

CLIP

PIN, quick attachable cot

2шт.

4

535888R1

CLIP

stabilizer rod end holding

2шт.

5

529343R1

BRACKET

stabilizer mounting

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

2шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

529346R1

PIN

stabilizer end rod tube

2шт.

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex hd cap

1шт.

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

3/8 x 1.094 pipe

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

Used for mounting tail pipe rear support, machines w/underslung exhaust 3/8"-16, G5

1шт.

Выбрано товаров: 13
