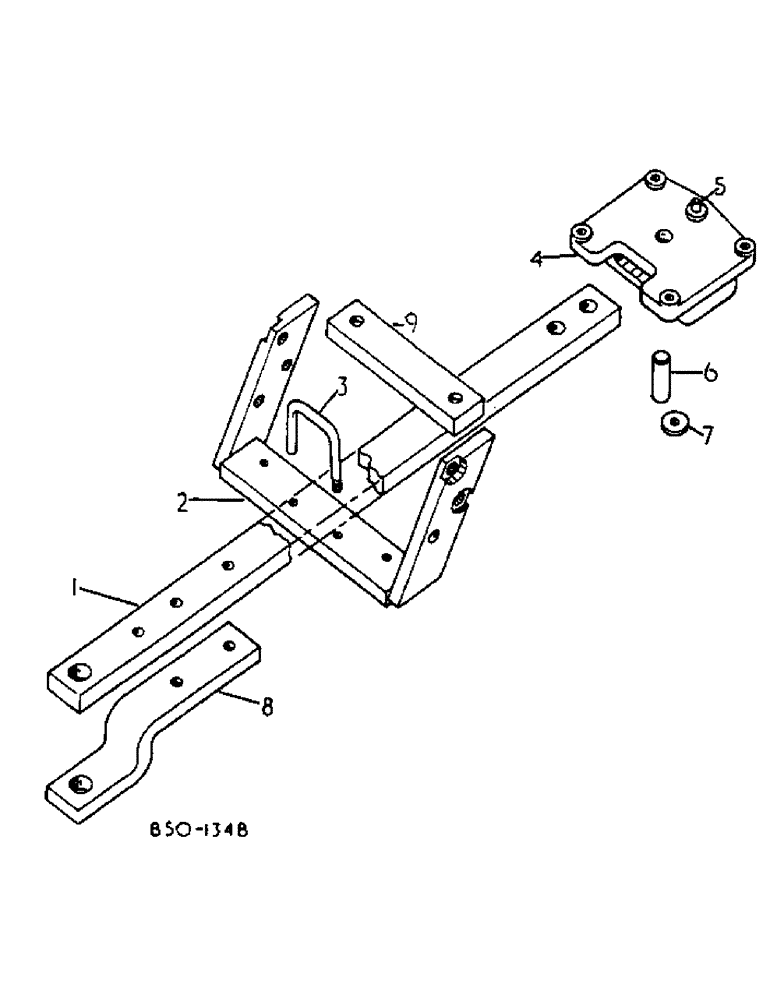

Запчасти Case IH 884 (09-04) - SWINGING DRAWBAR ATTACHMENT, TRACTORS WITH 3 POINT HITCH (12) - FRAME

1

406467R2

DRAWBAR, SWINGING

HITCH, swinging

1шт.

2

3129483R1

DRAWBAR SUPPORT

SUPPORT ASSY, swinging drawbar, Replaces: 3121223R2

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4 pln type 5

4шт.

3

1502071C1

COTTER PIN,14.28mm OD

PIN, drawbar stop, replaces pin, 406470R1 & nut 19798R1 by also ordering cotter pin, 720631R1

1шт.

720631R1

LINCH PIN

PIN, cotter

1шт.

4

406468R21

SUPPORT ASSY.

SUPPORT ASSY, drawbar pivot

1шт.

264239R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1/2 x 2 pln type 8

4шт.

3061325R1

WASHER

hardened

4шт.

5

19846R1

DOWEL,1/2" x 1 1/4"

PIN, dowel

1шт.

6

406469R1

PIN

drawbar pivot, Serial Range: -8007

1шт.

6

1502366C1

PIVOT PIN

PIN, drawbar pivot, Start Serial: 8008

1шт.

7

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, drawbar pin lock

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

3064333R1

DRAWBAR CLAMP

CLEVIS, drawbar

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 pln type 5

2шт.

102639

NUT,5/8"-11, G5

2шт.

9

3121227R1

BAR

drawbar bumper

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

2шт.
