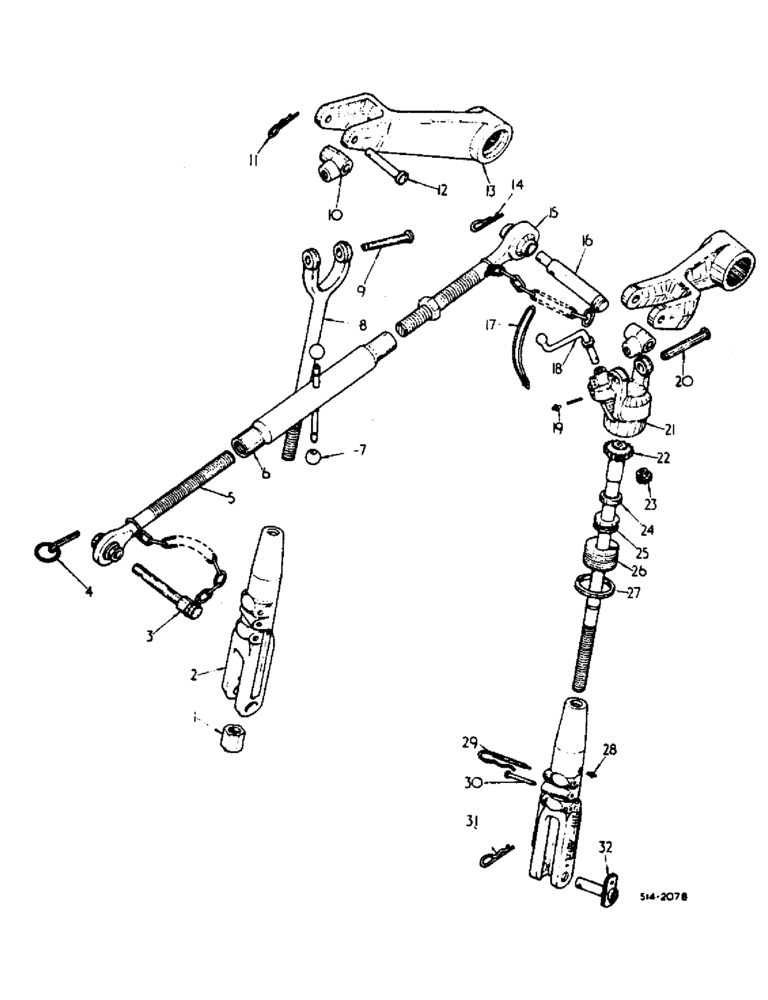

Запчасти Case IH 884 (09-02) - 3 POINT HITCH (12) - FRAME

1

527937R1

NUT

lift link

2шт.

2

3121965R1

HOUSING

lift link yoke

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

528081R1

PIN ASSY.

PIN ASSY, upper link cat I

1шт.

4

533189R1

PIN

ASSY, cotter

1шт.

5

527996R1

SCREW

SCREW ASSY, RH thd upper

1шт.

6

528003R1

TURNBUCKLE

1шт.

7

3048296R1

BUTTON

KNOB, turnbuckle rod

2шт.

65958C1

ROD

turnbuckle

1шт.

8

527935R11

CLEVIS

YOKE ASSY, lift LH, tractors w/inside check chains

1шт.

8

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

8

527948R91

CLEVIS,7/8" - 9

YOKE ASSY, lift LH, tractors w/outside check chains

1шт.

8

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

9

3044309R1

PIN

5/8 x 3-1/2 std

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

704207R3

PIVOT

SWIVEL, leveling

2шт.

11

720631R1

LINCH PIN

PIN, rockshaft arm cotter

2шт.

12

3044309R1

PIN

rockshaft arm hd

2шт.

13

402634R2

ROCKER ARM

ARM, rockshaft

2шт.

14

530049R1

CLIP, SPRING

PIN, lift link pivot QA

1шт.

15

527994R1

SCREW

ASSY, LH thd upper

1шт.

325-157

NUT

1-1/8 jam type 5

1шт.

16

528084R1

HITCH PIN

PIN ASSY, upper link cat II

1шт.

17

3072424R1

SPRING

leveling screw handle

1шт.

18

527943R1

CRANK

HANDLE, leveling screw

1шт.

19

W45836

LUBE NIPPLE,1/8"-27 NPT

FITTING self-tapping, 1/8-27 ptf str lub, Replaces 109461, 219-1

1шт.

20

3069069R1

PIN

5/8 x 3-3/4 hardener

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21

3072422R2

HOUSING

leveling screw, will no longer be tapped for 1/8 NPT threads

1шт.

22

3116725R91

SCREW

SCREW, lift RH link leveling, or

1шт.

Utility and all wheel drive tractors.

1шт.

22

3116726R1

SCREW

lift RH link leveling

1шт.

Utility and all wheel drive tractors.

1шт.

22

69993C91

SET SCREW

SCREW, lift RH link leveling, or

1шт.

Row crop tractors.

1шт.

22

69988C1

ADJUSTMENT SCREW

SCREW, lift RH link leveling

1шт.

Row crop tractors.

1шт.

23

3069063R1

GEAR

pinion

1шт.

23

3069063R1

GEAR

pinion

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

2шт.

24

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

leveling screw brg

1шт.

25

3044346R91

BALL BEARING

BEARING, leveling screw

1шт.

26

3069064R1

BEARING

SCREW, bearing leveling

1шт.

27

3069065R1

LOCK NUT

leveling screw bearing

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

2шт.

29

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSY, lift link lock

2шт.

30

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN, float stop

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

31

432-1620

COTTER PIN,1/4" x 1 1/4"

PIN, 3/16 x 1 cot.

2шт.

32

402645R1

PIN

ASSY, lift link pivot

2шт.

528079R91

UPPER LINK

LINK ASSY, upper, consists of Ref.3 thru 7, 15 & 16

1шт.

530050R3

CLIP,ELECTRICAL

CLIP, upper link storage, bolts to the draft control housing

1шт.

23042R1

WASHER

17/32 x 1 x .030 flat

1шт.

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

BOLT, Shoulder

1шт.

530050R3

CLIP,ELECTRICAL

bolts to the draft control housing

1шт.
