Запчасти Case IH 884 (09-01) - FRONT FRAME WITH FABRICATED BOLSTER, UTILITY TRACTORS (12) - FRAME

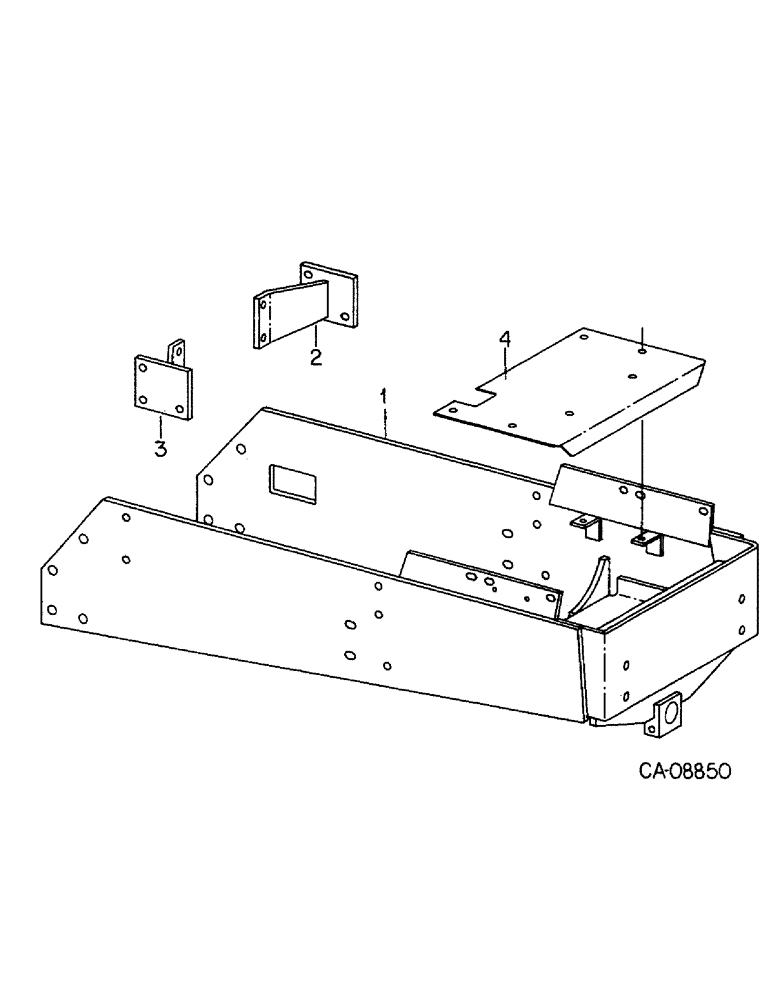

Схема запчастей Case IH 884 - (09-01) - FRONT FRAME WITH FABRICATED BOLSTER, UTILITY TRACTORS (12) - FRAME
3
2
4
1

Артикул

Название

Примечание

Количество

1

1269826C1

FRAME

ASSY

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 pln type 5

8шт.

116124

LOCK WASHER,3/4"

3/4"

8шт.

2

70131C1

SUPPORT

ASSY, front engine LH

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

25528R1

NUT,5/8"-11, G8

5/8 phc type 8

3шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

.656 x 1.312 x .095 phc hdn

8шт.

3

70132C1

SUPPORT

ASSY, front engine RH

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

25528R1

NUT,5/8"-11, G8

5/8 phc type 8

3шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

.656 x 1.312 x .095 phc hdn

8шт.

4

1282790C1

SHEET

air seal

1шт.

Выбрано товаров: 14
