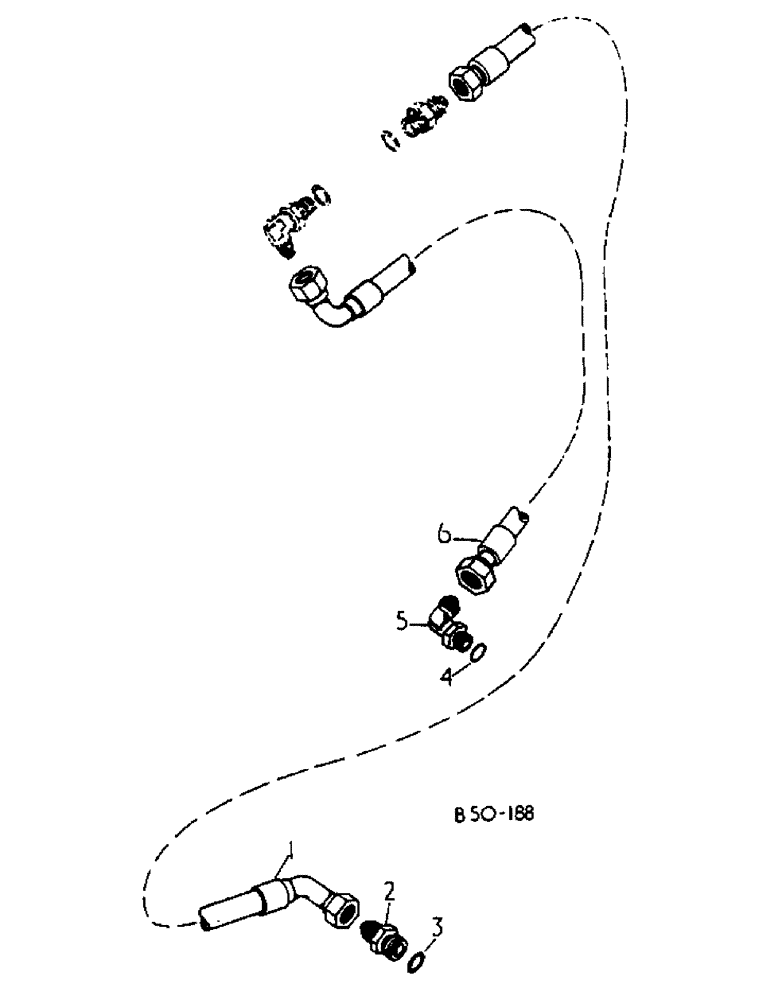

Запчасти Case IH 884 (10-29) - AUXILIARY POWER SOURCE (07) - HYDRAULICS

1

3123730R1

HOSE,0.75" ID x 75.00", SAE 100R4 CLASS 4

0.75" ID x 75.00", SAE 100R4, CLASS 4, Return

1шт.

2

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-1/16-12 to 1-5/16-12 37 deg, short reducer

1шт.

3

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

5

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 hyd 37 Deg. flared tube adj str thd 90 Deg.

1шт.

6

3123729R1

HOSE,0.50" ID x 75.00", SAE 100R3 CLASS 8

0.50" ID x 75.00", SAE 100R3, CLASS 8

1шт.

9410360

PLUG

7/8-14 str thd o-ring, M C valve application

1шт.
