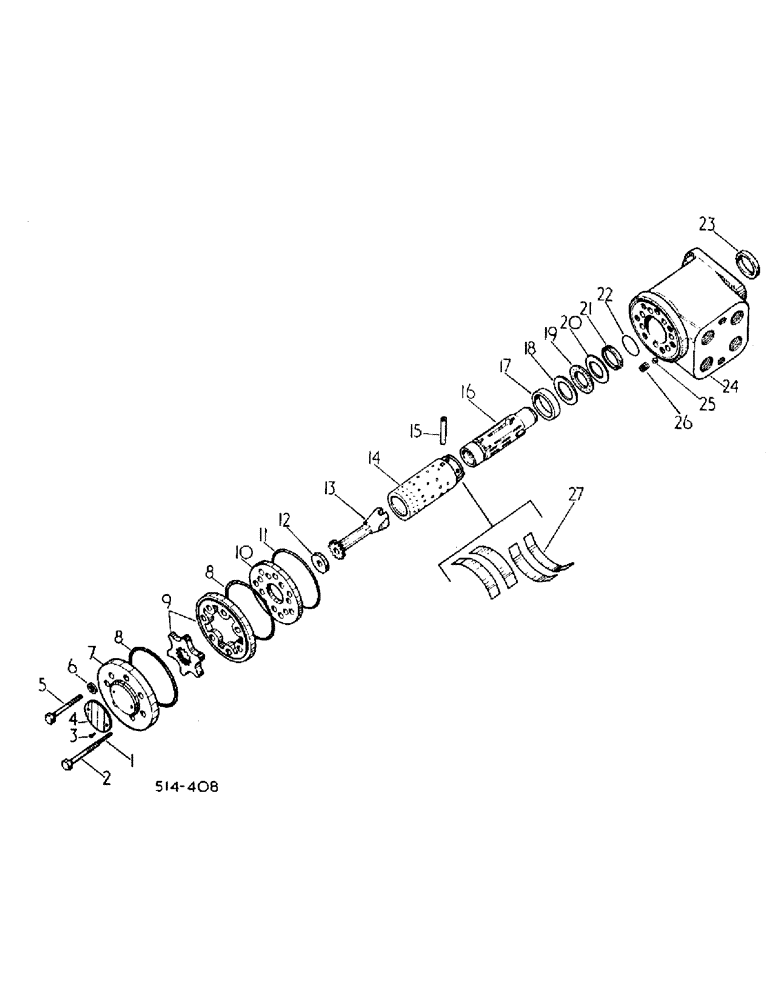

Запчасти Case IH 884 (10-22) - INTEGRAL HYDROSTATIC POWER STEERING VALVE (07) - HYDRAULICS

67698C93

VALVE

ASSY, integral power steering

1шт.

1

3112271R1

PIN, ROLL

ed

1шт.

2

SCREW

1шт.

3

217910

SCREW

2шт.

4

PLATE, rating

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

plain

5шт.

5

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

drilled

1шт.

6

WASHER

7шт.

Order package 1500443C91.

1шт.

7

1500444C1

CAP

end

1шт.

8

O-RING

2шт.

Order package 1500443C91.

1шт.

9

538918R1

ROTOR ASSY.

SET, rotor, consists of items 12 and 13

1шт.

10

3112276R1

PLATE

valve

1шт.

11

O-RING

1шт.

Order package 1500443C91.

1шт.

12

538916R1

SPACER

1шт.

13

538915R1

DRIVE SHAFT

DRIVE

1шт.

14

SLEEVE

1шт.

Order package 1500443C91.

1шт.

15

3112269R1

PIN

cross

1шт.

16

SLEEVE

1шт.

17

3112264R1

RING

1шт.

18

RACE, bearing, order bearing assy 3234338R91

1шт.

19

BEARING, needle, order bearing assy 3234338R91

1шт.

20

WASHER, axial, order bearing assy 3234338R91

1шт.

21

RING, pin

1шт.

22

O-RING

1шт.

Order package 1500443C91.

1шт.

23

RING, seal

1шт.

Order package 1500443C91.

1шт.

24

HOUSING, consists of items 14 and 16

1шт.

25

3112270R1

BALL

steel

1шт.

26

3112272R1

BUSHING

threaded

1шт.

27

SPRING, leaf

4шт.

Order package 1500443C91.

1шт.

3234338R91

BEARING SET

ASSY, consists of ref no. 18, 19 & 20

1шт.

1500443C91

SEAL KIT

KIT, seal and o-ring, consists of items 6, 8, 11, 14, 21, 22, 23 & 27

1шт.
