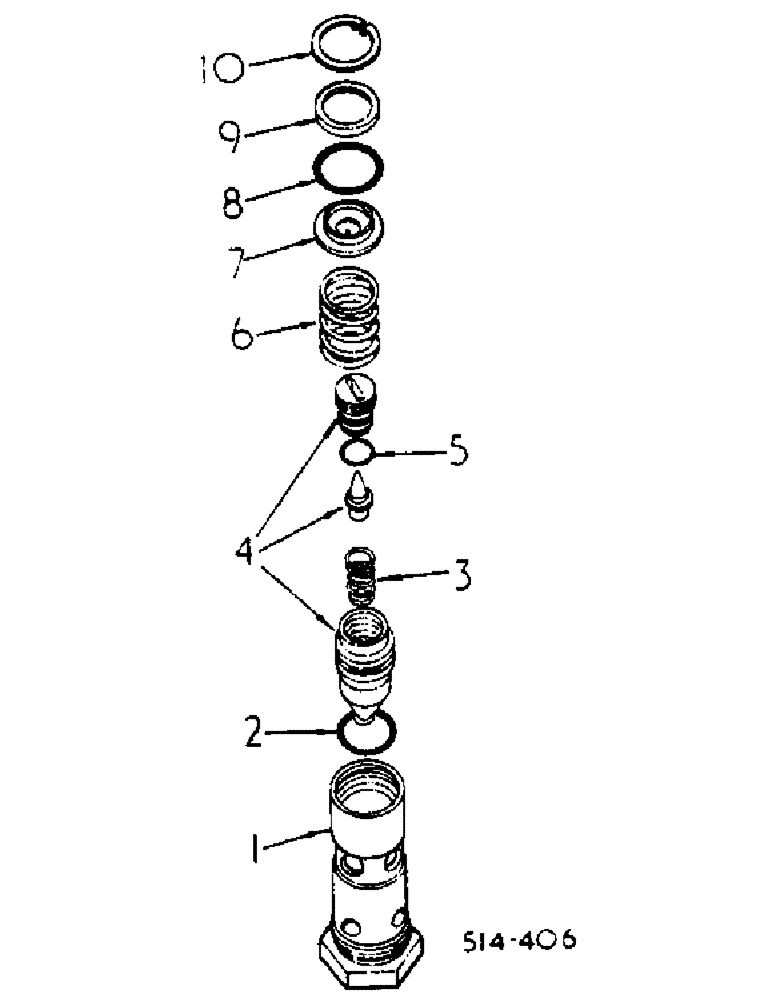

Запчасти Case IH 884 (10-20) - PILOT RELIEF VALVE (07) - HYDRAULICS

399858R92

VALVE

ASSY, pilot relief

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, relief valve

1шт.

2

379181R1

O-RING,0.614" ID x 0.07" Width

5/16 x 7/16 x 1/16, S treated

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING, pilot relief

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE, pilot relief

1шт.

5

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 x 1/16

1шт.

6

386040R1

SPRING

poppet return

1шт.

7

386042R1

PLATE

orifice

1шт.

8

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16

1шт.

9

386073R91

SCREEN

ASSY, pilot relief

1шт.

10

NSS

NOT SOLD SEPARAT

RING, retaining

1шт.
