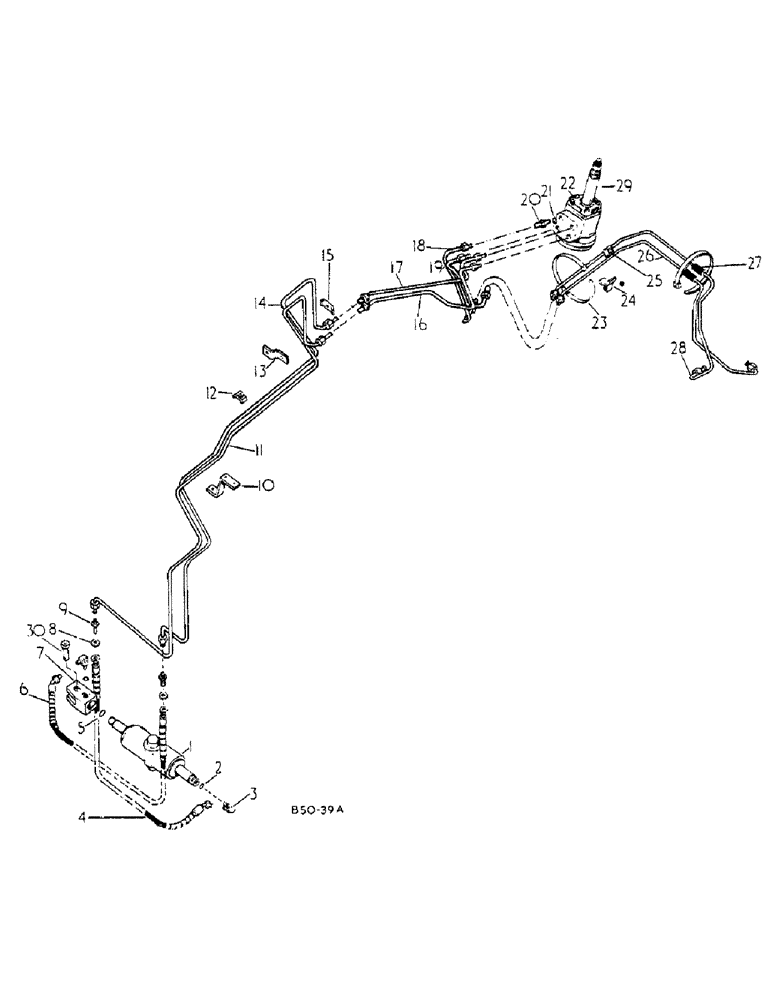

Запчасти Case IH 884 (10-03) - POWER STEERING, TRACTOR WITH ADJUSTABLE FRONT AXLE AND CAST BOLSTER (07) - HYDRAULICS

1

549667R93

STEERING CYLINDER

CYLINDER ASSY, hyd power steering

1шт.

84336125R

REMAN-HYD CYLINDER

884 (1/79-12/81), Reman for New P/N 549667R93

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

55355C91

GASKET KIT

KIT, o-ring & seal service see parts catalog cyl-1 for service parts

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared

2шт.

4

3121235R1

HOSE

ASSY, power steering cylinder

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

6

3121235R1

HOSE

ASSY, power steering cylinder

1шт.

7

549670R2

CLEVIS,3/4" - 16

cyl end 3/4 thread, Serial Range: -606

1шт.

7

3125306R1

CLEVIS,9/16" - 18

cyl end, Start Serial: 607

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 C-Z bulkhead union lock

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 C-Z 37 deg hyd flared tube bulkhead

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

3125117R2

PIPE,9.53 mm OD, 1094.05, 749.3 mm Length

TUBE ASSY, power steering RH forward, tractors with bolster w/3 side mtg holes, utility tractors

1шт.

11

3125265R1

PIPE,9.53 mm OD, 1051.1, 654.5 mm Length

TUBE ASSY, power steering RH forward, tractors with bolster w/4 side mtg holes, all wheel drive tractors w/ZF axle, row crop tractors, low profile tractors

1шт.

11

66109C1

PIPE

TUBE ASSY, power steering RH forward, tractors with bolster w/4 side mtg holes, all wheel drive tractors w/Kimco axle

1шт.

12

384891R11

CLAMP

ASSY, power steering tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

3125116R2

PIPE,9.53 mm OD, 1080.76, 749 mm Length

TUBE ASSY, power steering LH forward, tractors with bolster w/3 side mtg holes, utility tractors

1шт.

14

3125264R1

TUBE ASSY.,9.53 mm OD, 1051.1, 654.5 mm Length

TUBE ASSY, power steering LH forward, tractors with bolster w/4 side mtg holes, all wheel drive tractors w/ZF axle, row crop tractors, low profile tractors

1шт.

14

66107C1

PIPE

TUBE ASSY, power steering LH forward, tractors with bolster w/4 side mtg holes, all wheel drive tractors w/Kimco axle

1шт.

15

529644R11

CLAMP

ASSY, power steering tube

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

1шт.

16

3116268R3

TUBE ASSY.

TUBE ASSY, power steering RH rear

1шт.

17

3116267R1

TUBE ASSY.

TUBE ASSY, power steering LH rear

1шт.

18

3116272R2

TUBE ASSY.

TUBE ASSY, power steering return forward

1шт.

19

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE ASSY, power steering pressure forward

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

4шт.

22

VALVE ASSY, integral power steering, for components see list of parts under details of integral hydrostatic steering valve

1шт.

23

306132C1

CABLE TIE,14.5" L

STRAP, rear manifold tubes

2шт.

24

529638R1

BRACKET

rear manifold

1шт.

25

529637R2

GUIDE

manifold tube

1шт.

26

66105C1

TUBE ASSY.

TUBE ASSY, power steering pressure rear, Z pattern shift

1шт.

26

1502293C1

TUBE

ASSY, power steering pressure rear, H pattern shift, replaces 1500683C1 & 3129256R1, also order check valve 57577C1

1шт.

57577C1

CHECK VALVE

VALVE, check

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

3129261R1

BRACKET

pipe retaining

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer 0.31" ID x 2.50"

2шт.

28

66104C1

PIPE

TUBE ASSY, power steering return rear, Z pattern shift

1шт.

28

3129257R1

TUBE ASSY.

TUBE ASSY, power steering return rear, H pattern shift

1шт.

29

3121187R91

SHAFT

steering w/nut, includes nut

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, hex.

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

includes bolt

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

67488C2

PIN

power steering cylinder, Serial Range: -606

1шт.

30

3125305R1

PIN

power steering cylinder, Start Serial: 607

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 SH drive type lub

1шт.
