Запчасти Case IH 884 (08-17) - CLIPS, CLAMPS, STRAPS AND GROMMETS (06) - ELECTRICAL

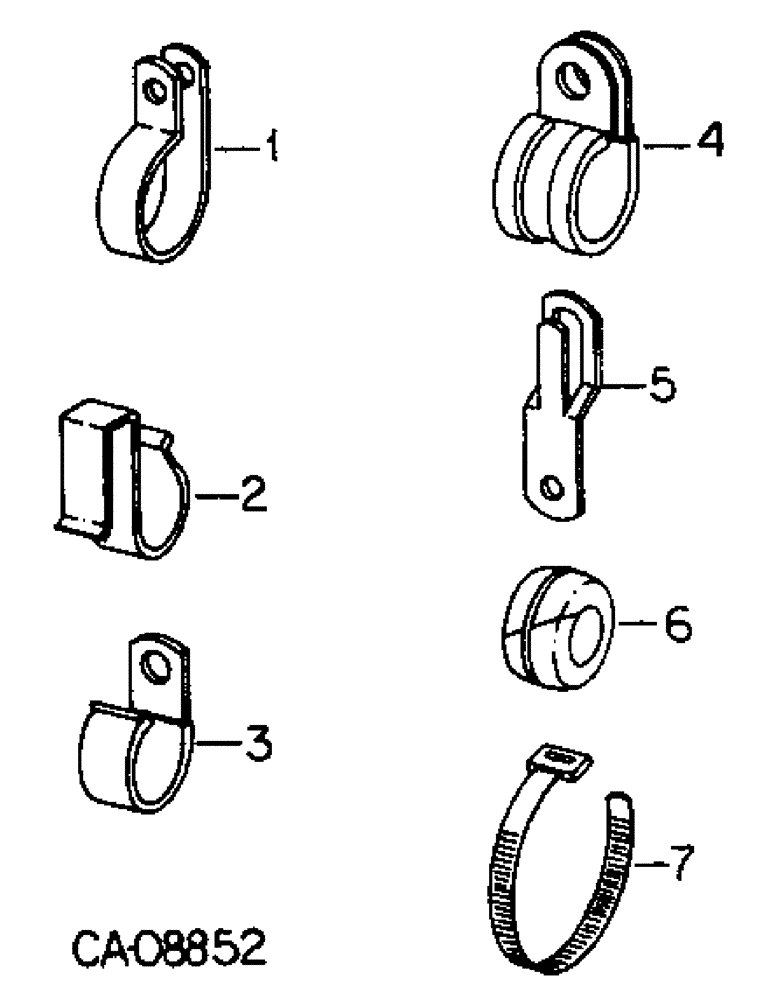

Схема запчастей Case IH 884 - (08-17) - CLIPS, CLAMPS, STRAPS AND GROMMETS (06) - ELECTRICAL
4
5
6
7
1
2
3

Артикул

Название

Примечание

Количество

1

3116240R1

CLIP

CLAMP, .56 dia. closed, battery cable

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

no. 8 x 3/8 pln h/hd mach

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

225-10108

NUT,#8-32

Machine screw #8-32

1шт.

2

3116918R1

CABLE CLIP

CLIP, .25 max dia. edge, air cleaner bracket top

1шт.

2

3123109R1

CABLE CLIP

CLIP, .35 max dia. edge, temp. sender cable

1шт.

2

537024R1

CLIP

.46 dia. multiple cable edge, front grille cables

1шт.

2

537025R1

CLIP

.55 dia. multiple cable edge, harness to battery support

1шт.

2

3113490R1

CLIP

.55 max dia. edge, steering support, master cyl bracket

1шт.

2

539015R1

CLIP

.75 max dia. edge, park brake flasher

1шт.

2

535303R1

CABLE CLIP

CLIP, .95 max dia. edge, rear cable on battery tray

1шт.

3

366460R1

CABLE CLIP

CLIP, .25 dia. open - .41 bolt hole, front cover RH rear

1шт.

3

100770H

CLIP

.31 dia. open, grille shroud LH, grille tie bar LH

1шт.

3

316433C1

CLAMP

CLIP, .50 dia. open, main harness

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Harness to instrument shroud, RH 3/8"

1шт.

3

3123668R1

NO LONGER SERVICED

CLIP, .51 dia. open, harness to instrument shroud LH

1шт.

3

153515R1

CLIP

.87 dia. open, main harness to instrument shroud

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

4

3125823R1

CLIP

.75 dia. pipe, main harness to battery tray

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

5

708115R1

PLATE ASSY.

CLIP, spring type, combination stop/tail light

1шт.

6

3113661R1

GROMMET

fender harness

2шт.

6

705548R1

GROMMET

.25 ID x .56 OD x .25, rear fender top

1шт.

6

3115463R1

GROMMET

.50 ID x .88 OD x .25, fender side sheet

2шт.

6

3123681R1

GROMMET

.31 ID x .56 OD x .25, rear fender light

2шт.

7

289862C1

CABLE TIE,3/16" x 7"

STRAP, 1.75 max bundle cable, battery cable 2, harness to fuel line 2, harness to fuel pipe 2, park brake cable, park brake flasher

1шт.

Выбрано товаров: 34
