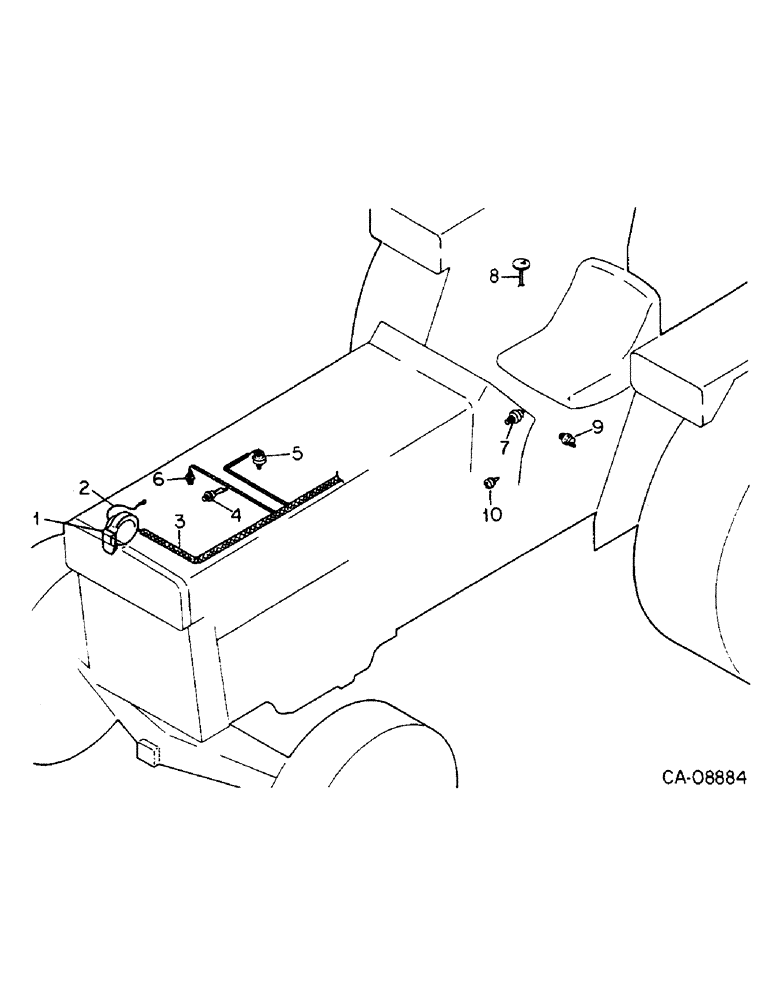

Запчасти Case IH 884 (08-11) - CHASSIS WIRING, SWITCHES AND CONNECTIONS (06) - ELECTRICAL

1

1536115C1

HORN

Replaces 3121205R91

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

3119440R1

LOCK NUT

1/4 self-locking

2шт.

2

3117533R1

CABLE

ASSY, Serial Range: horn-ground

1шт.

3

HARNESS ASSY, main cable, refer to instrument panel wiring listing, this group

1шт.

4

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, air cleaner restriction indicator, on air cleaner mounting bracket

1шт.

New switch is single terminal, negative ground W/ diode contact.connect positive wire and Taspe-Off negative wire.

1шт.

5

91450C1

SWITCH, PRESSURE

SWITCH ASSY, engine oil pressure, on top of oil filter base, Replaces 3129031R91

1шт.

6

3073787R91

TRANSMITTER

water temp, AC Delco, use only w/AC Delco gage 3121240R1, located on water pump carrier

1шт.

See SB S-4364

1шт.

6

3127956R1

TEMPERATURE SENDER

TRANSMITTER, water temp, Icknield, use only w/Icknield gage 3127959R1, located on water pump carrier

1шт.

7

376855R92

SWITCH

trans oil pressure, tractors so equipped

1шт.

7

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8-27 pln h/hd pipe, tractors so equipped

1шт.

8

SENDING UNIT, fuel level, refer to group 12, fuel tank supports and piping listing

1шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

SWITCH ASSY, neutral starting, refer to neutral starting switch listing, this group

1шт.
