Запчасти Case IH 884 (08-06) - CRANKING MOTOR, BOSCH (06) - ELECTRICAL

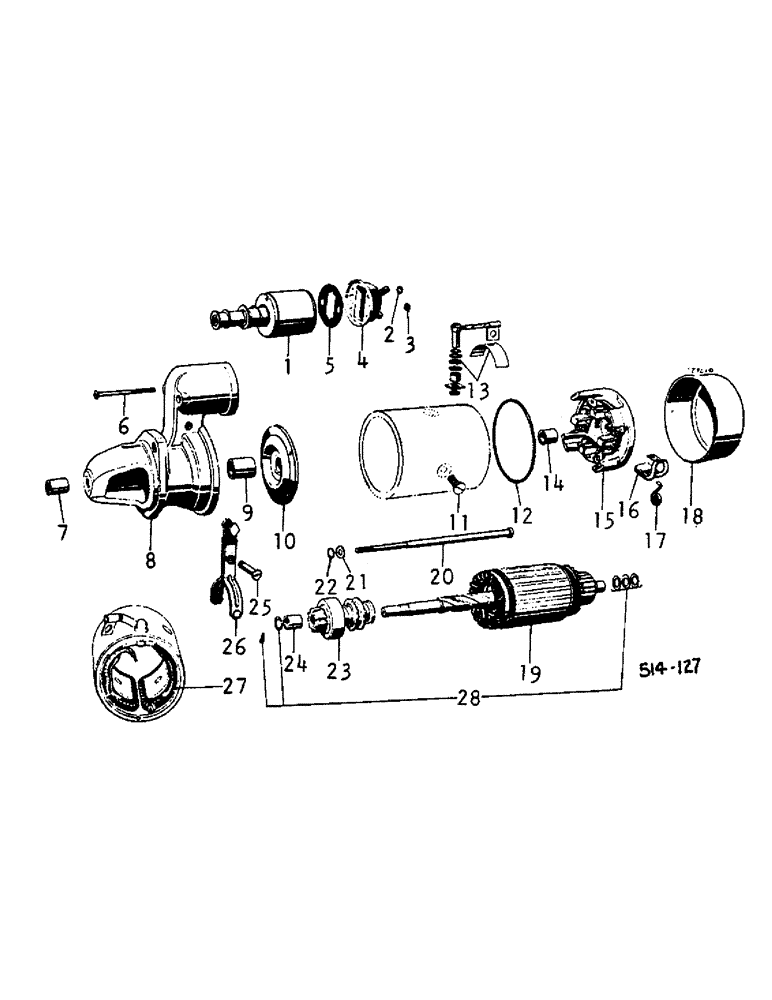

Схема запчастей Case IH 884 - (08-06) - CRANKING MOTOR, BOSCH (06) - ELECTRICAL
10
20
1
14
25
16
17
5
6
13
24
23
15
2
28
4
11
7
27
26
21
9
12
19
18
22
3
8

Артикул

Название

Примечание

Количество

529965R93

STARTING MOTOR

STARTER MOTOR, Bosch 4PS, Bosch No. 00-001-362-310 Replaces No. 00-001-359-045, R91 and 00-001-367-042, R92

1шт.

179814

SPACER

5/16 x 5/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

537143R1

TERMINAL CONNECTOR,Male

TERMINAL, Male

1шт.

1

3113013R91

RELAY

SWITCH, solenoid

1шт.

Used with P/N 529965R91.

1шт.

1

3078963R1

SOLENOID SWITCH

SWITCH, solenoid

1шт.

Used with P/N 529965R92 and R93.

1шт.

2

WASHER, relay cover

2шт.

3

3132763R1

TERMINAL CONNECTOR

PLATE, relay cover

4шт.

4

COVER, relay

1шт.

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

relay cover

2шт.

100016

NUT,M10 x 1.5, Cl 8

Relay Cover M10, Cl 8

2шт.

934075R1

LOCK WASHER,M10

Relay cover M10

2шт.

5

RING, packing relay cover

1шт.

6

931100R1

SCREW,M6 x 50mm, Cl 4.8

switch

2шт.

Used with P/N 529965R91.

1шт.

6

3078974R1

SCREW

switch

3шт.

Used with P/N 529965R92 and R93.

1шт.

7

3113008R1

BUSHING

bearing

1шт.

Used with P/N 529965R91.

1шт.

7

3055738R1

BUSHING

bearing

1шт.

Used with P/N 529965R92 and R93.

1шт.

8

3113007R91

DRIVE ASSY.

DRIVE ASSY, end

1шт.

Used with P/N 529965R91.

1шт.

8

3129633R1

HOUSING

DRIVE ASSY, end

1шт.

Used with P/N 529965R92 and R93.

1шт.

9

3132441R1

BUSHING

bearing

1шт.

Used with P/N 529965R91.

1шт.

9

3078967R1

BUSHING

bearing

1шт.

Used with P/N 529965R92 and R93.

1шт.

10

3132440R1

SUPPORT

BEARING, intermediate

1шт.

Used with P/N 529965R91.

1шт.

10

3079253R1

BALL BEARING

intermediate

1шт.

Used with P/N 529965R92 and R93.

1шт.

11

3078334R1

SCREW

retainer

4шт.

Used with P/N 529965R91.

1шт.

11

3129639R1

SCREW

retainer

4шт.

Used with P/N 529965R92 and R93.

1шт.

12

3132450R1

O-RING

RING, packing commutator end

1шт.

Used with P/N 529965R91.

1шт.

13

3132464R91

TERMINAL CONNECTOR

SET, terminal parts

1шт.

Used with P/N 529965R91.

1шт.

13

3079173R91

KIT

SET, terminal parts

1шт.

Used with P/N 529965R92 and R93.

1шт.

14

3132446R1

BUSHING

commutator end

1шт.

Used with P/N 529965R91.

1шт.

14

3079170R1

BUSHING

commutator end

1шт.

Used with P/N 529965R92 and R93.

1шт.

15

3113011R91

FRAME ASSY

commutator end

1шт.

Used with P/N 529965R91.

1шт.

15

3129632R91

END ASSY.

FRAME ASSY, commutator end

1шт.

Used with P/N 529965R92 and R93.

1шт.

16

3078754R91

COMMUTATOR BRUSH

SET, brush

1шт.

Used with P/N 529965R91.

1шт.

16

3079359R91

BRUSH, COMMUTATOR

SET, brush

1шт.

Used with P/N 529965R92 and R93.

1шт.

3079174R1

HOLDER

brush

1шт.

17

3132448R1

VALVE SPRING

SPRING, brush

2шт.

Used with P/N 529965R91.

1шт.

17

3079420R1

SPRING

BRUSH

2шт.

Used with P/N 529965R92 and R93.

1шт.

18

3132449R1

COVER

end

1шт.

Used with P/N 529965R91.

1шт.

18

3079177R1

CAP

COVER, end

1шт.

Used with P/N 529965R92 and R93.

1шт.

3079426R1

SCREW

2шт.

19

3132444R1

X

ARMATURE

1шт.

Used with P/N 529965R91.

1шт.

19

3079252R1

ARMATURE

1шт.

Used with P/N 529965R92 and R93.

1шт.

20

3132759R1

BOLT

PIN, threaded housing

2шт.

Used with P/N 529965R91.

1шт.

933987R1

LOCK WASHER,M6

WASHER, lock

2шт.

20

3079172R1

STUD

thru

2шт.

Used with P/N 529965R92 and R93.

1шт.

3079176R1

WASHER

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

21

3113009R1

WASHER

1шт.

Used with P/N 529965R91.

1шт.

22

3132760R1

BUSHING

RING, packing

1шт.

Used with P/N 529965R92 and R93.

1шт.

23

3113010R91

DRIVE

ASSY

1шт.

Used with P/N 529965R91.

1шт.

23

3129631R1

DRIVE ASSY.

DRIVE ASSY

1шт.

Used with P/N 529965R92 and R93.

1шт.

24

3132443R1

BUSHING

1шт.

Used with P/N 529965R91.

1шт.

24

3079254R1

BUSHING

1шт.

Used with P/N 529965R92 and R93.

1шт.

25

3132758R1

SCREW

lever

1шт.

Used with P/N 529965R91.

1шт.

25

3079251R1

BOLT

lever

1шт.

Used with P/N 529965R92 and R93.

1шт.

26

3132432R1

LEVER

engaging

1шт.

Used with P/N 529965R91.

1шт.

26

3078965R1

LEVER

engaging

1шт.

Used with P/N 529965R92 and R93.

1шт.

933983R1

LOCK WASHER,M6

WASHER, lock

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

27

3078072R91

KIT

COIL, field

1шт.

Used with P/N 529965R91.

1шт.

27

3079356R1

COIL

field

1шт.

Used with P/N 529965R92 and R93.

1шт.

28

3132465R91

PACKAGE

SET, armature parts

1шт.

Used with P/N 529965R91.

1шт.

Выбрано товаров: 106
