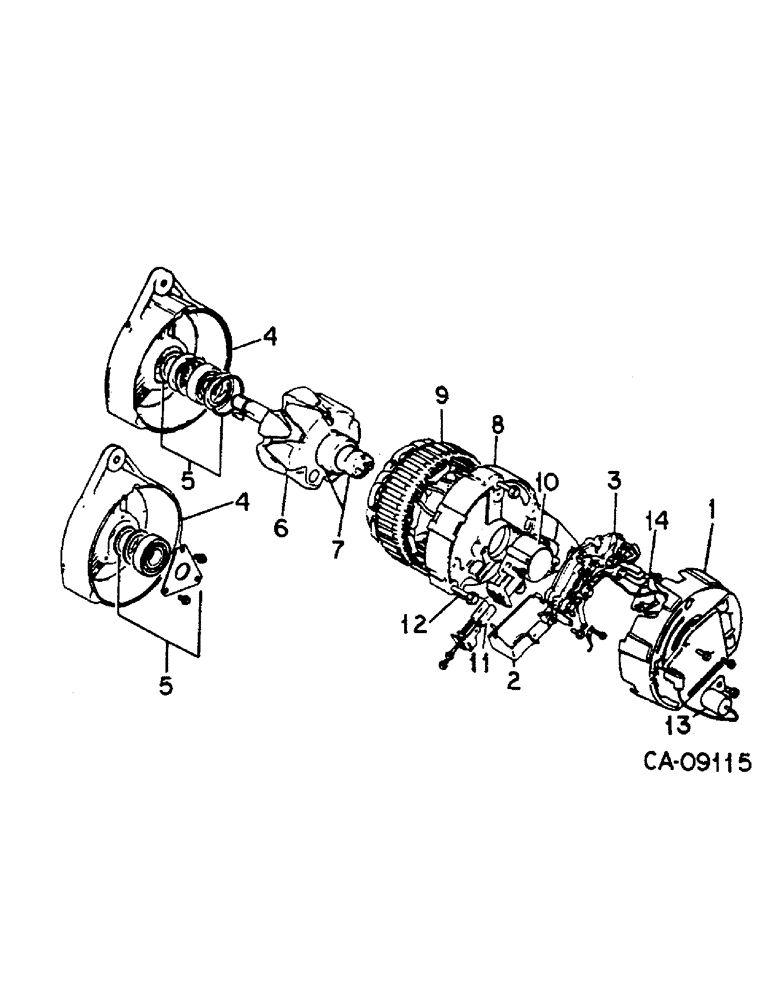

Запчасти Case IH 884 (08-03) - ALTERNATOR, LUCAS A115-45 (06) - ELECTRICAL

245531C91

ALTERNATOR

Lucas 45 amp, w/fan & pulley, Lucas no. 54206079, Replaces 245538C91 less fan & pulley, Replaces 3129851R91, service parts are

1шт.

1

245535C1

COVER

1шт.

2

245536C1

REGULATOR

1шт.

3

245537C1

RECTIFIER

1шт.

4

3116089R91

BRACKET

drive end

1шт.

5

3116096R91

BEARING ASSY

KIT, drive end bearing

1шт.

6

245540C1

ROTOR ASSY.

ROTOR ASSY

1шт.

7

245541C1

WHEEL BEARING KIT

KIT, bearing & slip ring

1шт.

245542C1

RING

slip

2шт.

8

245543C1

BRACKET

slip ring end

1шт.

9

245544C1

STATOR

1шт.

10

245545C1

BRUSH HOLDER

BOX, brush

1шт.

11

245546C1

BRUSH SET

1шт.

12

245547C1

BOLT

fixing

3шт.

13

NOT USED THIS APPLICATION

1шт.

14

245886C1

RECTIFIER

- surge protection

1шт.

245548C1

PACKAGE

KIT, sundry parts

1шт.

245549C1

PACKAGE

KIT, screw

1шт.

245550C1

PACKAGE

KIT, spacer

1шт.

245533C1

FAN

alternator

1шт.

245534C1

PULLEY

1шт.
