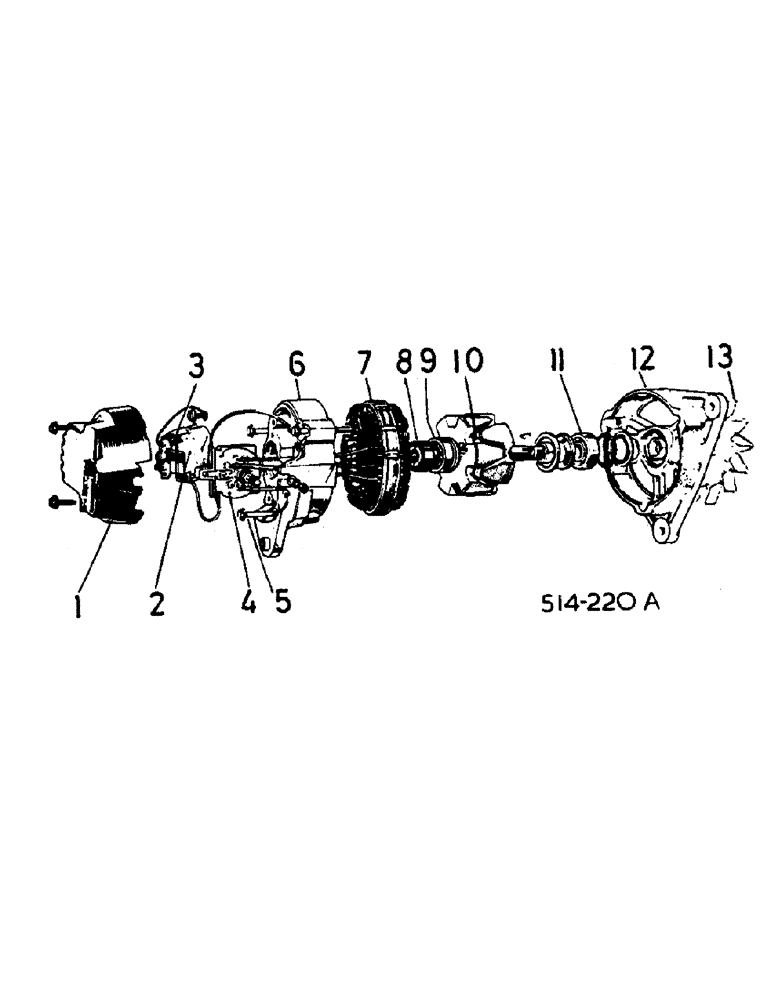

Запчасти Case IH 884 (08-02) - ALTERNATORS, LUCAS 15 ACR, 17 ACR AND 18 ACR (06) - ELECTRICAL

ALTERNATOR, Lucas 15 acr, Lucas 54021569

1шт.

ALTERNATOR, Lucas 17 acr, Lucas 23962, replaced by 84082C91

1шт.

ALTERNATOR, Lucas 18 acr - less fan, Lucas no. 23765, replaced by 245531C91

1шт.

1

3116086R1

COVER

1шт.

2

3116094R91

BRUSH HOLDER

AND BRUSH ASSY, Includes: Ref. 3 thru 13

1шт.

3116099R91

BRUSH SET

KIT, brush

1шт.

3

3116087R3

REGULATOR

1шт.

4

3116088R1

RECTIFIER

17 & 18 acr alternators

1шт.

5

3116095R1

BOLT

fixing

3шт.

6

3116092R1

BRACKET

stator-regulator end

1шт.

7

3116093R1

STATOR

15 acr alternator

1шт.

7

3125134R1

STATOR

17 & 18 acr alternators

1шт.

8

3116097R1

RING

slip

1шт.

9

3116098R1

KIT

BEARING KIT, stator-regulator end

1шт.

10

3125130R91

ROTOR ASSY.

ROTOR ASSY, 15 acr alternator

1шт.

10

3125133R91

ROTOR ASSY.

ROTOR ASSY, 17 & 18 acr alternators, w/ring 3116097R1 and bearing 3116098R91

1шт.

11

3116096R91

BEARING ASSY

KIT, drive end

1шт.

12

3116089R91

BRACKET

ASSY, drive end

1шт.

13

3117067R1

FAN

alternator - 15 & 17 acr alternators

1шт.

13

1502055C1

FAN

alternator - 18 acr alternator

1шт.

3116090R91

KIT

parts sundry

1шт.

3123891R1

RECTIFIER

- surge protection

1шт.

3118367R1

RECTIFIER

15 & 17 acr alternators

1шт.

3125297R1

CAPACITOR

18 acr alternator

3шт.

84083C1

CAPACITOR

17 acr alternator

3шт.

3113628R1

SPRING

BUSHING

1шт.
