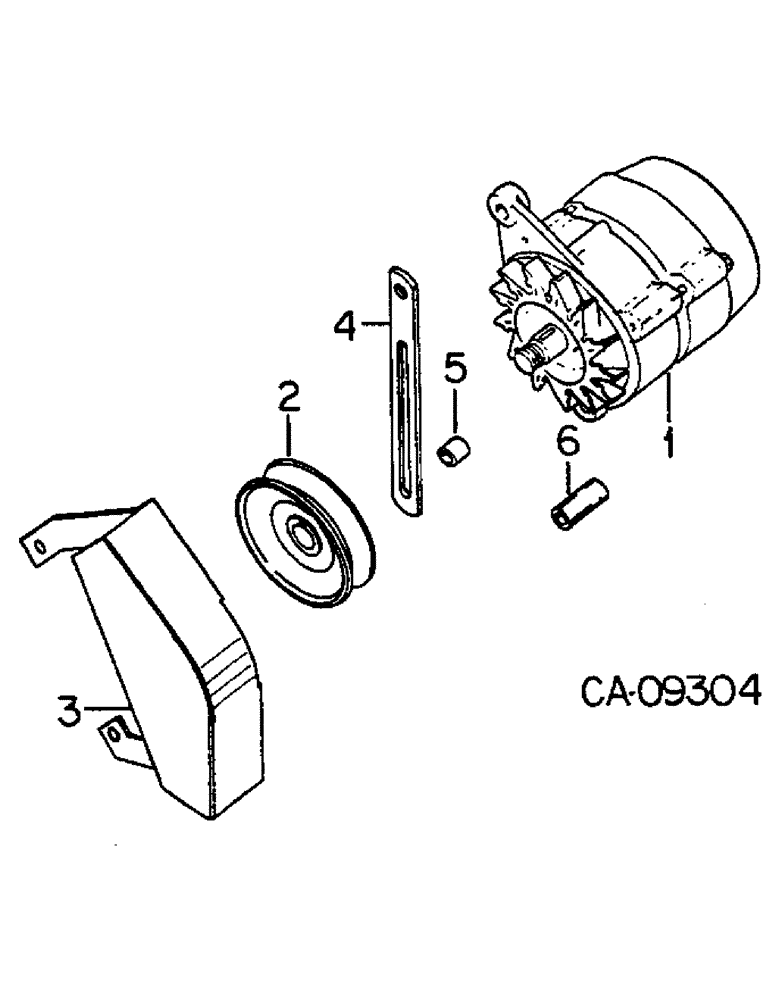

Запчасти Case IH 884 (08-01A) - ALTERNATOR AND CONNECTIONS, FOR TRACTORS WHICH WILL BE EQUIPPED WITH SIMS CAB (06) - ELECTRICAL

1

84028C91

ALTERNATOR

75 amp, Lucas A133-75, Lucas no. 24176, for components refer to alternator listing this group

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

5/16 x 4-3/4 pln class 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

2

91426C1

PULLEY

1шт.

3

84037C2

SHIELD

ASSY, fan

1шт.

4

3113336R1

BRACE

alternator

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

5

190123C1

SPACER,1/2" Tube x 1"

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

5/16 x 4-1/4 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

3113678R1

SPACER

1шт.

84027C1

HARNESS

adapter

1шт.

399470R1

BOOT

- included in harness

1шт.

702093C1

CABLE TIE

STRAP

15шт.

107655C1

SOLENOID SWITCH

RELAY, cab

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

2шт.

30480R1

LOCK WASHER,Ext Tooth, M6

WASHER, no. 6MM ext tooth lock

2шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6MM

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6 znd class 8 for mounting relay

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, , For attaching cables to relay #10-32

1шт.
