Запчасти Case IH 884 (08-01) - ALTERNATOR AND CONNECTIONS, TRACTORS WITHOUT CAB (06) - ELECTRICAL

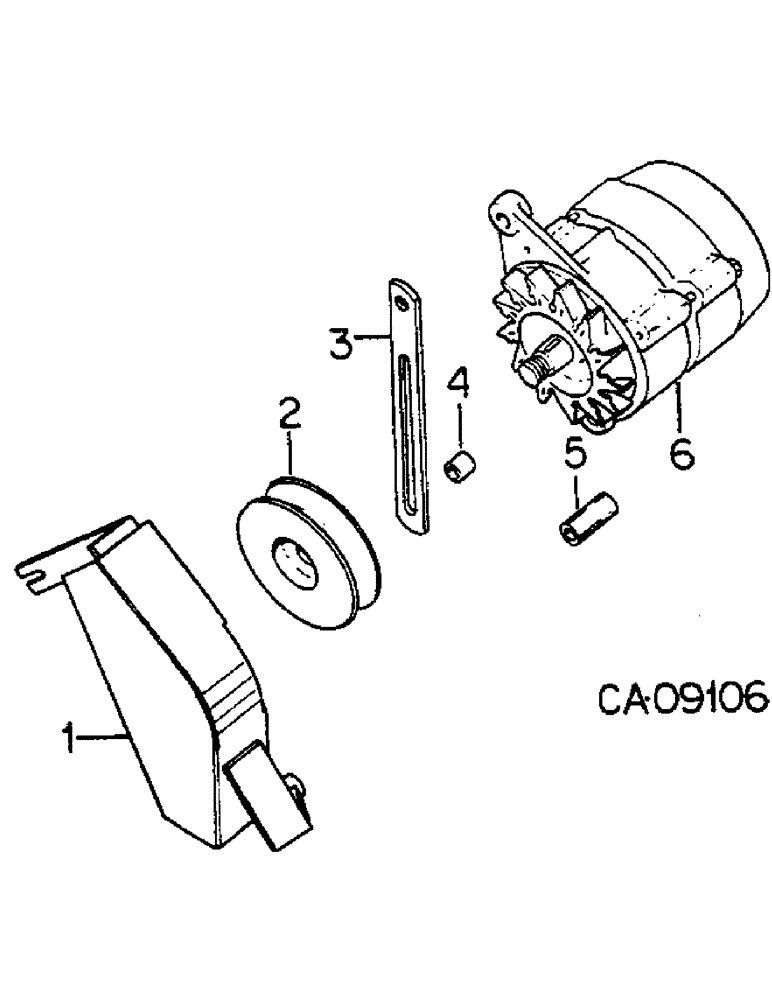

Схема запчастей Case IH 884 - (08-01) - ALTERNATOR AND CONNECTIONS, TRACTORS WITHOUT CAB (06) - ELECTRICAL
6
2
5
1
3
4

Артикул

Название

Примечание

Количество

1

3129852R5

SHIELD

alternator

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

5/16 x 4-3/4 pln class 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

2

3113672R1

PULLEY

alternator, Lucas 15, 17 & 18 acr alternators

1шт.

2

245534C1

PULLEY

SET, alternator, Lucas A115-45 alternator includes washer

1шт.

2

3129077R1

PULLEY

alternator, AC Delco alternator

1шт.

3

3113336R1

BRACE

alternator - Lucas

1шт.

3

3129076R1

CLIP

BRACE, alternator - Delco

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

4

190123C1

SPACER,1/2" Tube x 1"

alternator brace

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

5/16 x 4-1/4 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

3113678R1

SPACER

alternator mounting, use w/3129852R4 shield

1шт.

6

ALTERNATOR, Lucas 15 acr

1шт.

6

ALTERNATOR, Lucas 17 acr Replaced by 84082C91

1шт.

6

ALTERNATOR, Lucas 18 acr less fan, Lucas no. 23765 replaced by alternator 245531C91

1шт.

6

245531C91

ALTERNATOR

Lucas A115-45, w/fan & pulley, Lucas no. 54206079, Replaces 245538C91 less fan & pulley, Replaces 3129851R91

1шт.

6

3129075R91

ALTERNATOR

AC Delco

1шт.

6

84082C91

GENERATOR

ALTERNATOR, Lucas A115-36, less fan Lucas no. 24061 Replaces 3125132R92 for components see list of parts under details of alternators

1шт.

84149C91

GENERATOR

CAB sims, act.

1шт.

Выбрано товаров: 24
