Запчасти Case IH 884 (13-19) - CANOPY, ELECTRICAL (05) - SUPERSTRUCTURE

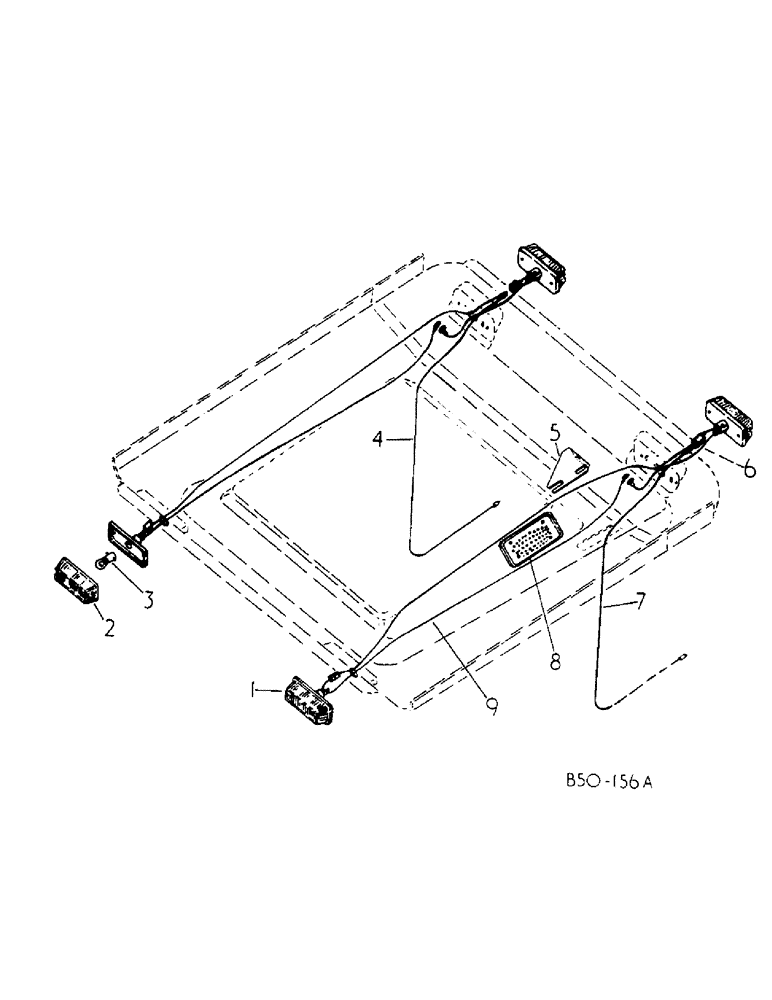

Схема запчастей Case IH 884 - (13-19) - CANOPY, ELECTRICAL (05) - SUPERSTRUCTURE
6
1
8
4
5
3
9
7
2

Артикул

Название

Примечание

Количество

1

130882C91

LAMP

LIGHT ASSY, warning

4шт.

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW, no. 10-16 x 2-1/2 phc p/hdcr tap

8шт.

684322R1

SPRING NUT

U-type spring

8шт.

2

130883C1

LENS

amber

4шт.

3

9417866

BULB,C6, #1156, 12.8V

LAMP, 12V 32CP

4шт.

4

118384C1

CABLE

ASSY, ROPS warning lights RH

2шт.

5

118522C1

BRACKET

radio mounting

1шт.

174878

WASHER

1/4 hvy-int tooth lock

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

6

111264C3

CABLE

ASSY, ground, rear lights

2шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

no. 10 x 1/2 p/hdcr tap

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 ext tooth lock

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

7

118383C1

CABLE

ASSY, R.O.P.S. warning lights LH

1шт.

8

118258C1

PANEL

GRILLE, speaker

2шт.

28058R1

SCREW

8 NF x 3/4 phc O/H C/R mach

8шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

no. 8-32 w/lockwasher

8шт.

9

118219C1

CABLE

ASSY, ground - front lights

1шт.

118523C2

CABLE

radio power

1шт.

Выбрано товаров: 22
