Запчасти Case IH 884 (13-16) - SEAT BELT (05) - SUPERSTRUCTURE

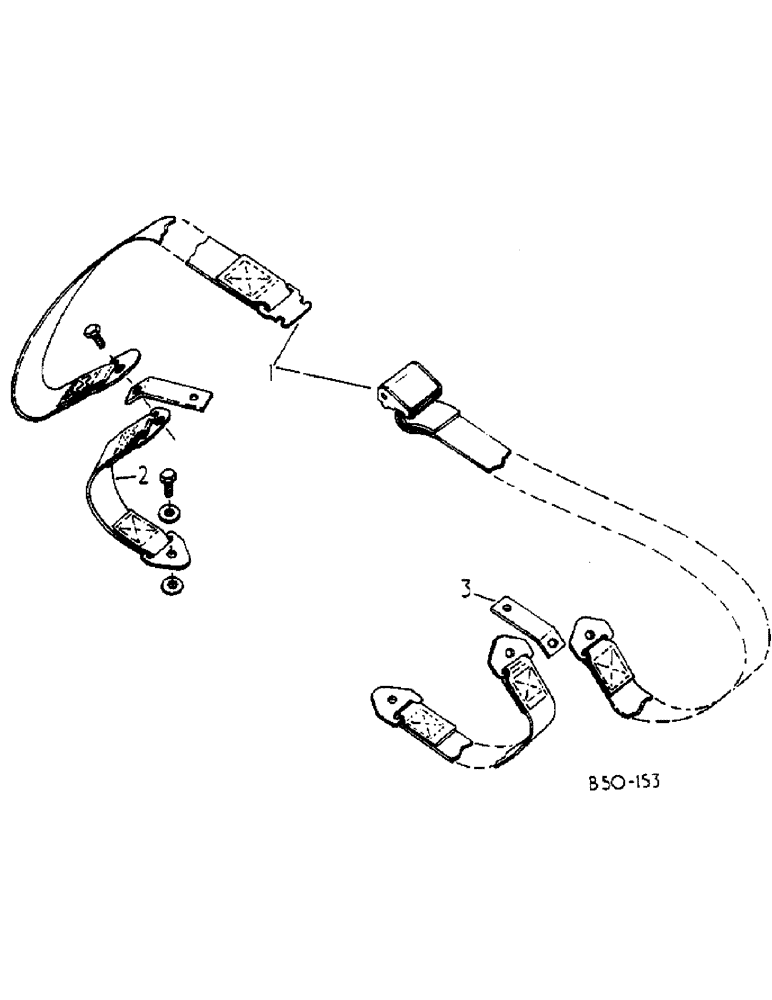

Схема запчастей Case IH 884 - (13-16) - SEAT BELT (05) - SUPERSTRUCTURE
1
2
3

Артикул

Название

Примечание

Количество

1

537339R1

SAFETY BELT

SAFETY BELT

1шт.

344096C3

BOLT

BOLT, seat belt anchor replaces 404911C1

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-NF type 8

2шт.

NLS

NO LONGER SERVICED

.469 x .922 x .051

2шт.

2

539258R1

SAFETY BELT

SAFETY BELT, Retaining

2шт.

344096C3

BOLT

BOLT, seat belt anchor replaces 404911C1

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-NF type 8

2шт.

120395

WASHER

.469 x .922 x .051

2шт.

3

539259R1

CLIP

seat belt retainer

2шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

Выбрано товаров: 12
