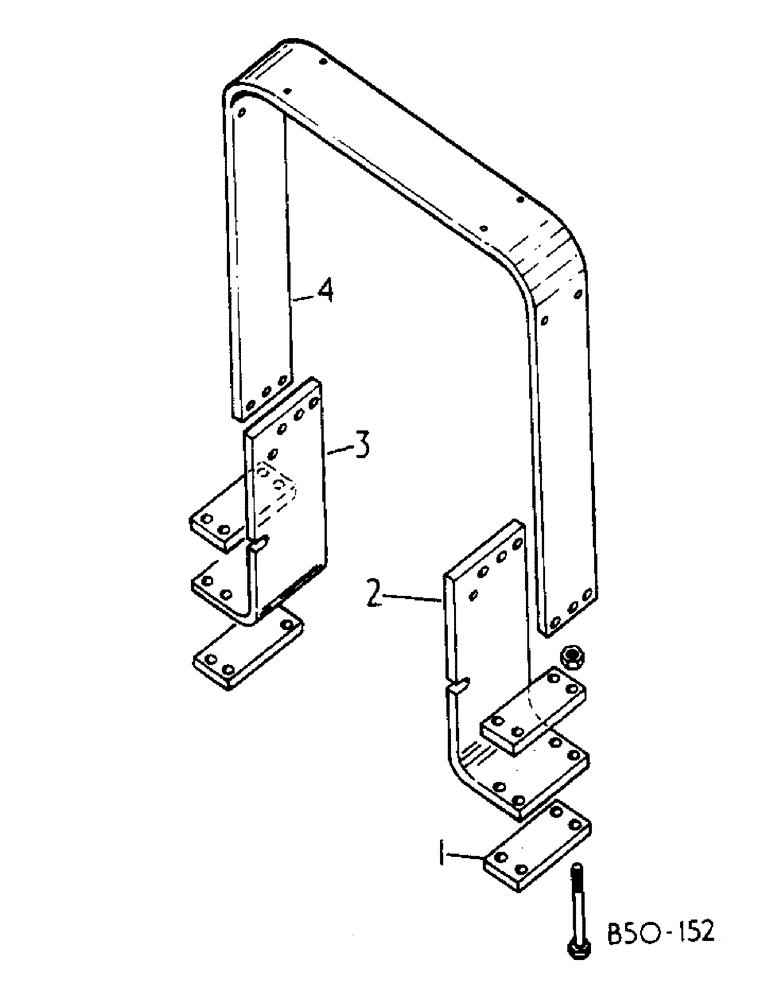

Запчасти Case IH 884 (13-15) - PROTECTIVE FRAME (05) - SUPERSTRUCTURE

1

118309C1

PLATE

clamp

1шт.

1500799C1

BOLT,Spcl, Hex, 3/4" - 10 x 10", Type 8

3/4-10 type 8 special

8шт.

22049R1

NUT,3/4"-10, G8

3/4 type 8

8шт.

2

118306C1

SUPPORT

lower mounting LH

1шт.

3

118307C1

SUPPORT

lower mounting RH

1шт.

4

118377C1

STRAP

BAR, R.O.P.S.

1шт.

118425C2

BOLT

7/8-9 x 2-3/4

6шт.

23831R1

NUT,7/8"-9, G8

7/8 type 8

6шт.

366460R1

CABLE CLIP

CLIP, cable

2шт.

70571C1

DECAL

PRODUCT-GRAPHIC, R.O.P.S. caution instructions

1шт.

70773C1

DECAL

PRODUCT-GRAPHIC, seat belt and R.O.P.S. caution instruction

1шт.
