Запчасти Case IH 884 (13-07A) - SEAT, NON SUSPENSION PVC COVERED, LOW PROFILE TRACTORS (05) - SUPERSTRUCTURE

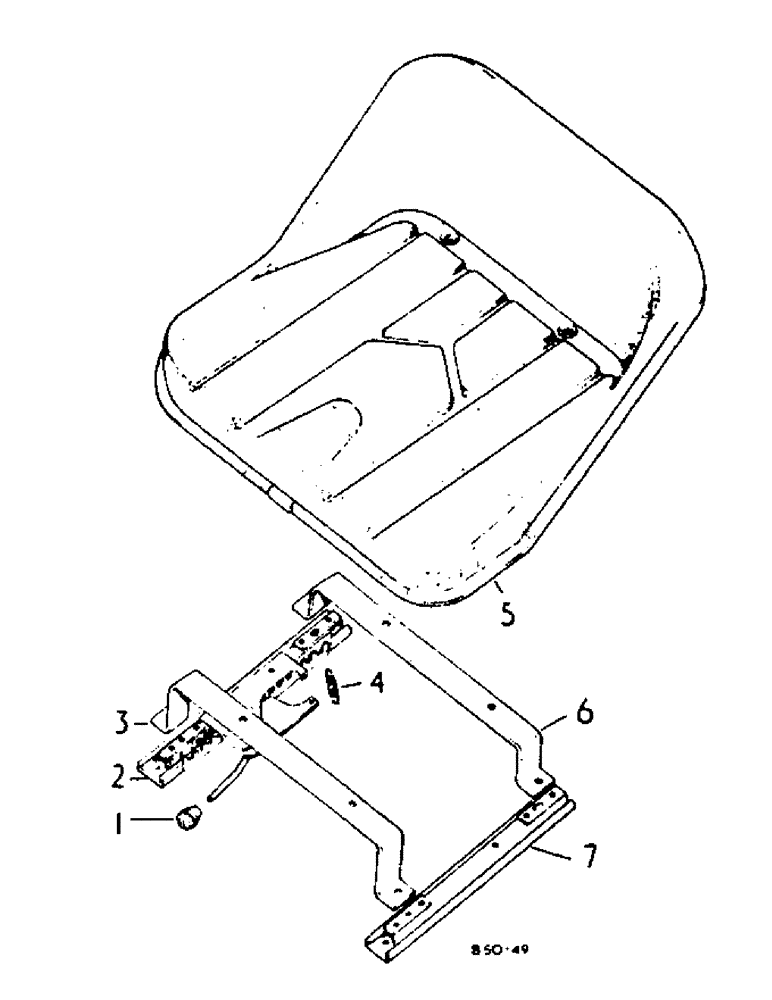

Схема запчастей Case IH 884 - (13-07A) - SEAT, NON SUSPENSION PVC COVERED, LOW PROFILE TRACTORS (05) - SUPERSTRUCTURE
1
3
2
6
7
5
4

Артикул

Название

Примечание

Количество

3121641R91

SEAT ASSY.

SEAT ASSY, static

1шт.

160722

SCREW,Cross Pan Hd, 5/16" - 18 x 1 1/4"

4шт.

3123564R1

LOCK WASHER

WASHER, 5/16 cz lock

4шт.

1

538693R1

BUTTON

KNOB

1шт.

2

825199C91

SLIDE

RAIL, slide RH w/adjuster

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

6шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

3121642R1

SUPPORT

BRACKET, front mounting

1шт.

4

538694R1

SPRING

1шт.

5

538026R1

SEAT ASSY.

SEAT ASSY, pan

1шт.

6

3121643R1

SUPPORT

BRACKET, rear mounting

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

6шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

825198C1

RAIL

slide RH

1шт.

8

3064188R1

SPACER

seat

4шт.

Выбрано товаров: 17
