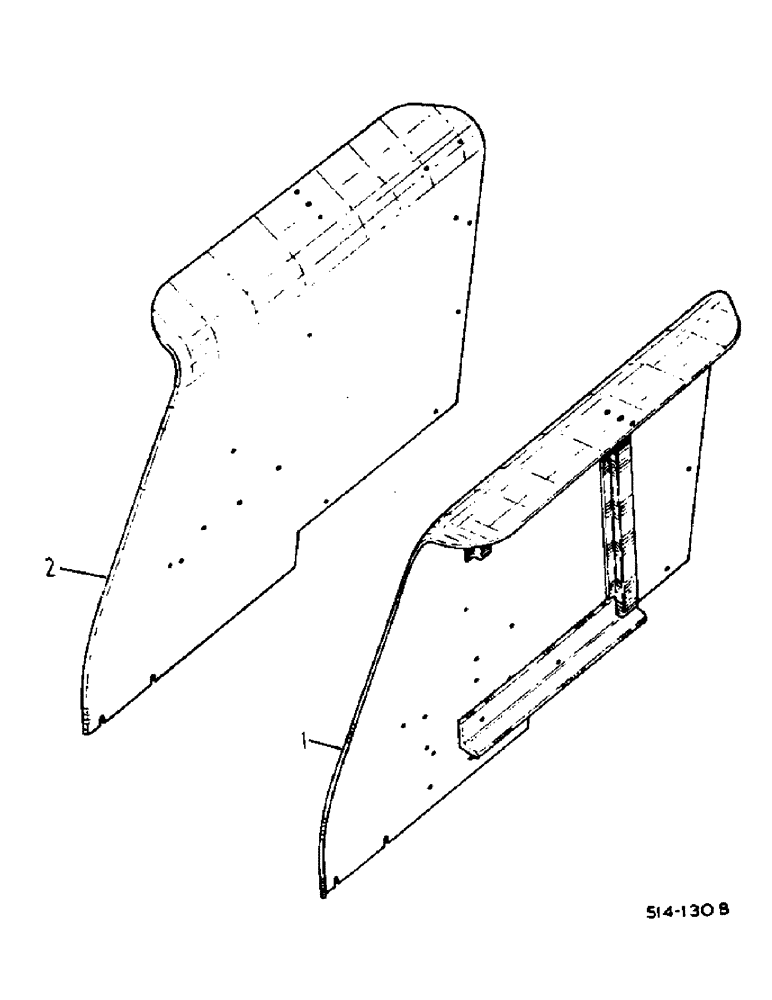

Запчасти Case IH 884 (13-06) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE

1

538639R3

FENDER ASSY.

FENDER, LH w/product graphic lo-crown

1шт.

1

538641R4

FENDER ASSY.

FENDER, LH w/product graphic hi-crown

1шт.

2

530002R5

FENDER ASSY.

FENDER ASSY, RH lo-crown

1шт.

2

530015R7

FENDER ASSY.

FENDER, RH hi-crown

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd cap

4шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3113657R1

PLUG

side and tail light blanking

4шт.

3113430R1

PLUG

side and tail light blanking

2шт.

531625R1

GROMMET

2шт.

3113430R1

PLUG

blanking fender LH, low crown only

3шт.

3112888R1

PLUG

blanking fender RH

1шт.

3125820R1

SLEEVE

PVC, for use w/fenders LH & RH

4шт.
