Запчасти Case IH 884 (13-05) - REAR FENDERS, FLAT TOP (05) - SUPERSTRUCTURE

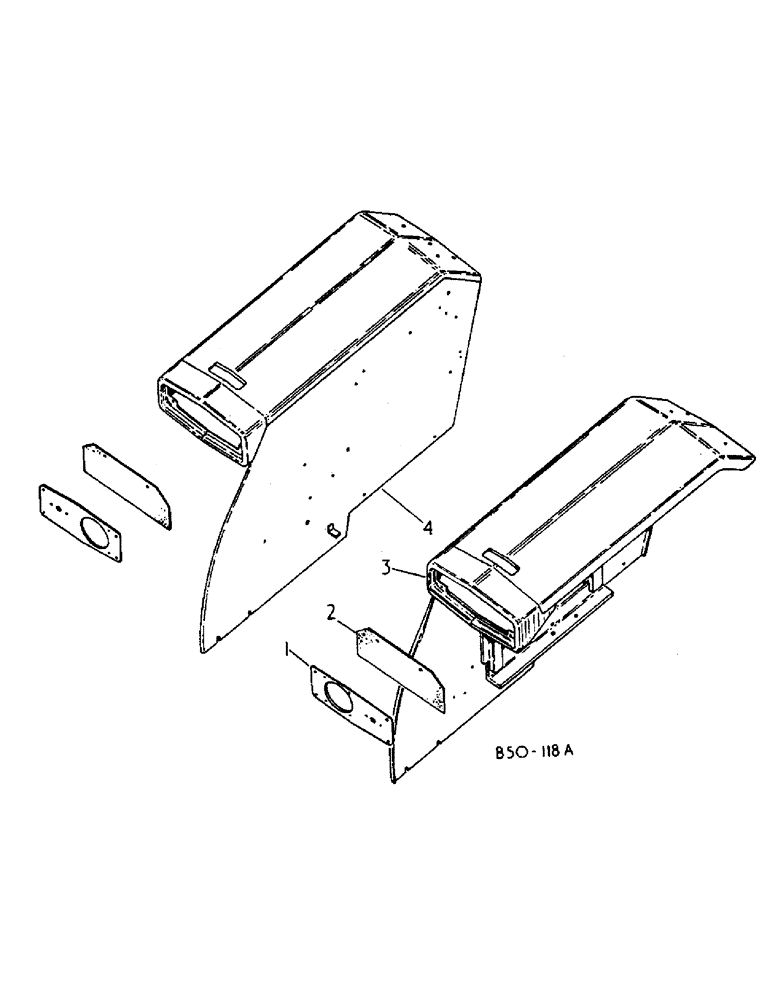

Схема запчастей Case IH 884 - (13-05) - REAR FENDERS, FLAT TOP (05) - SUPERSTRUCTURE
2
1
3
4

Артикул

Название

Примечание

Количество

1

3123652R3

PANEL

light housing front

2шт.

3123653R1

NUT

captive no. 6 type AB

8шт.

27571R1

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW, no. 6-20 x 1/2 phc p/hdcr tap

8шт.

2

3123654R1

SHIELD

light weather

2шт.

3

3123648R2

FENDER

ASSY, L.H. hi-flat top

1шт.

4

3123649R2

FENDER

ASSY, R.H. hi-flat top

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

180085

SPRING

5/16 x 1-3/4 type 5, to rear top cover

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , To transmission shift hsg or draft control hsg 5/16"

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd cap

4шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, , To axle carrier 1/2"

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , To parking brake bracket 3/8"

3шт.

531625R1

GROMMET

light hsg rear plate

2шт.

Выбрано товаров: 17
