Запчасти Case IH 884 (13-03) - REAR PANELS, Z PATTERN SHIFT (05) - SUPERSTRUCTURE

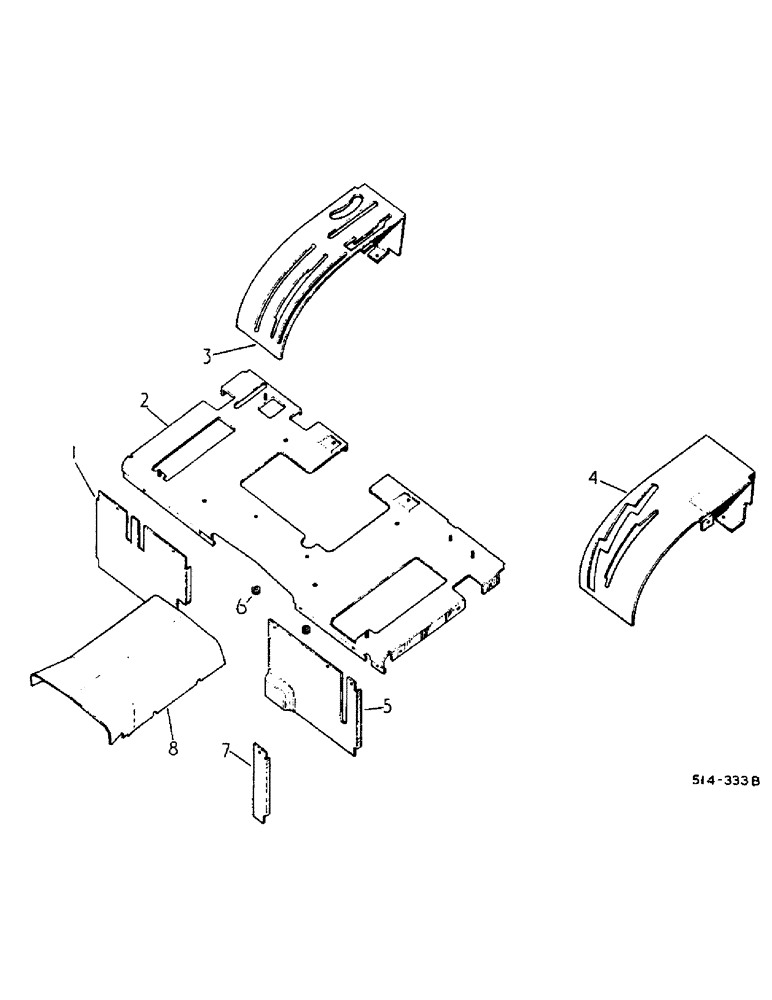

Схема запчастей Case IH 884 - (13-03) - REAR PANELS, Z PATTERN SHIFT (05) - SUPERSTRUCTURE
1
2
4
8
3
5
7
6

Артикул

Название

Примечание

Количество

1

3123711R1

CHANNEL

ASSY, rear vertical RH tractors w/single aux valve

1шт.

1

3125857R1

CHANNEL

ASSY, rear vertical RH tractors w/multiple aux valves

1шт.

180018

CONNECTING LINK

1/4 x 5/8 type 5

2шт.

2

528640R4

COVER ASSY

rear top

1шт.

NLS

NO LONGER SERVICED

.312 x .734 x .051

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

3

529457R61

COVER ASSY

hitch control lever, utility tractors

1шт.

3

3121558R2

COVER ASSY

hitch control lever, all wheel drive tractors

1шт.

4

529384R21

HOUSING ASSY.

HOUSING ASSY, trans shift

1шт.

5

528638R2

PROTECTION PLATE

CHANNEL ASSY, rear vertical LH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8 type 5

3шт.

6

401941R1

SPACER

mounting short

2шт.

7

NOT USED THIS APPLICATION

1шт.

8

66290C1

COVER

ASSY, clutch housing

1шт.

445957

INDICATOR

1/4 x 3/8 znp p/hds mach

4шт.

Выбрано товаров: 15
