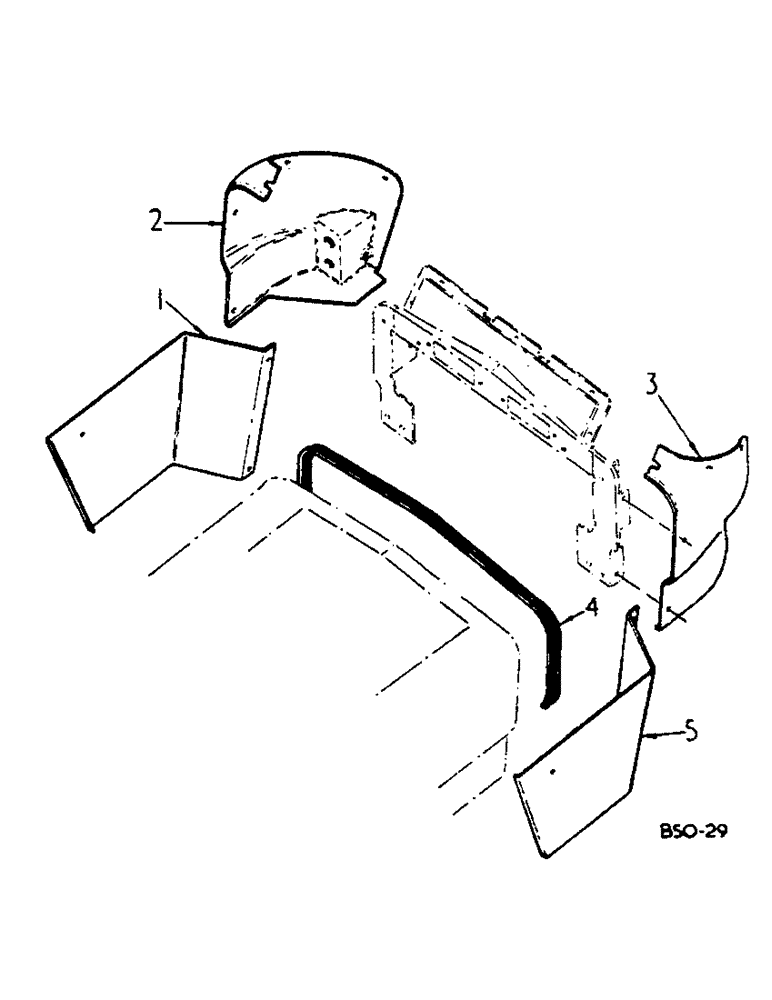

Запчасти Case IH 884 (13-02) - INSTRUMENT PANEL SIDE HOUSING (05) - SUPERSTRUCTURE

1

3121638R1

GUARD

PANEL, lower rear side RH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 cap

3шт.

2

3121712R3

HOUSING

instrument panel side RH

1шт.

3121715R1

SPRING NUT

reverse, Includes: screw

3шт.

A plastic square push in Type nut that tapers down.

1шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, No. 10-16 x 5/8 p/hdcr tap

3шт.

3

3121711R3

HOUSING

instrument panel side LH

1шт.

3121715R1

SPRING NUT

reverse

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, No. 10-16 x 5/8 p/hdcr tap

3шт.

3114406R1

PLUG

blanking

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, hood sheet, furnish 45.7 in. from bulk roll marked 1265280C1

1шт.

5

3121637R1

GUARD

PANEL, lower rear side LH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 cap

3шт.

1135278R1

PRODUCT GRAPHIC

instrument housing LH

1шт.

1135279R1

PRODUCT GRAPHIC

instrument housing RH

1шт.
