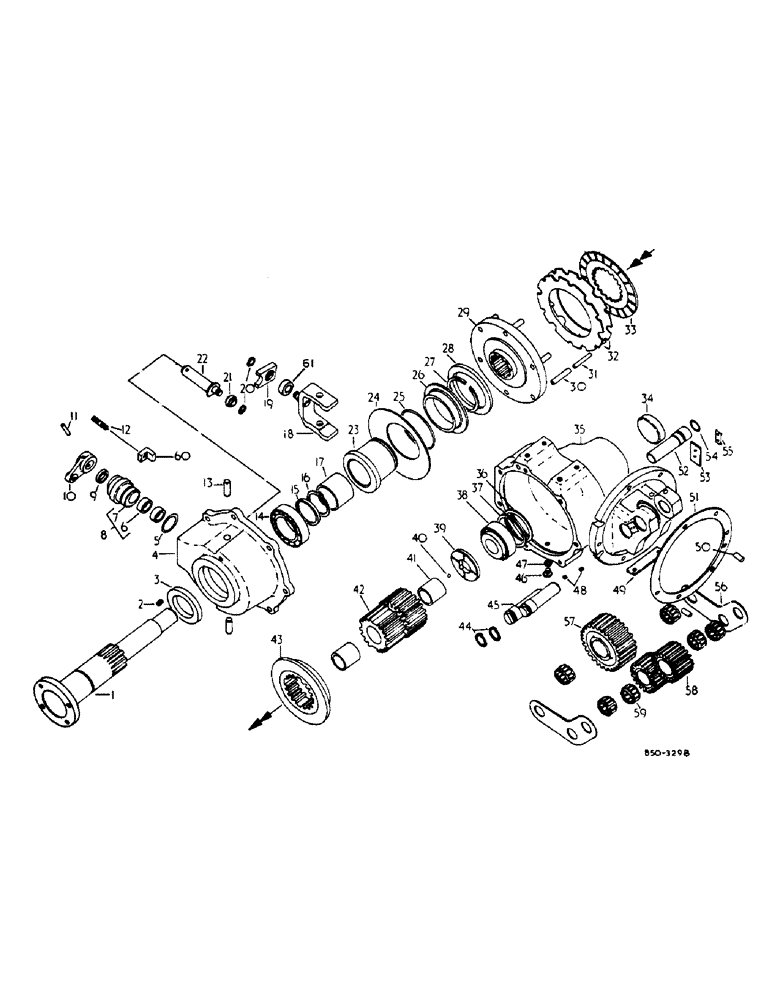

Запчасти Case IH 884 (07-65) - PTO CLUTCH AND DRIVE, ALL WHEEL DRIVE, ZF AXLE (04) - Drive Train

1

3129959R1

SHAFT

main

1шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 pln Hex Socket auto pipe

1шт.

3

3216278R2

OIL SEAL,55mm ID x 90mm OD x 15.5mm Thk

oil

1шт.

4

3223136R1

CASE

front

1шт.

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

PHC Hex, M10 x 30, 10.9, Full Thd

7шт.

933965R1

LOCK WASHER,M10

7шт.

5

3217269R1

O-RING,2.5mm Thk x 42mm ID, 70 Duro

1шт.

6

3064504R91

BEARING

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING, order ref. no. 8

1шт.

8

1500548C92

HOUSING ASSY.

HOUSING ASSY

1шт.

9

1500550C1

OIL SEAL

1шт.

10

1500013C1

LEVER

lower

1шт.

11

Q2935

LOCK PIN,M8 x 45, Slotted

PIN, 8 x 45MM cld spr

1шт.

12

3072253R1

STUD

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

13

3216291R3

PIN

2шт.

14

3216279R91

TAPERED BEARING

taper roller

1шт.

15

3216292R1

WASHER

1шт.

16

933030R1

SNAP RING,M55, Ext

RING, retaining

1шт.

17

3216285R1

SPACER

1шт.

18

3223146R92

YOKE

ASSY

1шт.

19

3225050R91

SUPPORT ASSY.

CONTROL ASSY

1шт.

20

933120R1

SNAP RING,M15, Ext

RING, retaining M15 x 1

2шт.

21

3216283R1

BALL JOINT

BUSHING, ball

1шт.

22

1500547C1

PIN

eccentric

1шт.

23

1500647C91

SLEEVE ASSY

SLEEVE W/SPACER ASSY, clutch release

1шт.

24

3223717R1

SPRING WASHER

WASHER, Belleville

1шт.

P/N 3221991R1 Washer can be used in this application. It is stronger. This is a washer used on the 956 XL Tractor.

1шт.

25

3216293R3

RING

SPACER

1шт.

26

3216294R3

RING

BUSHING

1шт.

27

934593R1

CIRCLIP,#80, 75.4 x 4.85 x 1.7

RING, retaining

1шт.

28

3216295R91

THRUST BEARING,90mm ID x 120mm OD x 8mm W

thrust

1шт.

29

1500645C92

HUB

ASSY, w/pins, replaces 1500645C91 on serial no. 8199 and below by also ordering plate 3129963R2 and reduce number of outer discs 3221192R1 from, Serial Range: 10-6

1шт.

30

932292R1

LOCK PIN,M6 x 50, Slotted

PIN, M6 x 50 sltd spring, Serial Range: -8199

6шт.

30

932323R1

LOCK PIN,M6 x 45, Slotted

PIN, M6 x 45 sltd spring, Start Serial: 8200

6шт.

31

932166R1

LOCK PIN,M10 x 50, Slotted

, Serial Range: -8199

6шт.

31

Q5348

LOCK PIN,10mm OD x 45mm L, Slotted

PIN, LOCK, M10 x 45, Slotted, Start Serial: 8200

6шт.

32

3221192R1

DISC

clutch outer, Serial Range: -8199

10шт.

32

3221192R1

DISC

clutch outer, Start Serial: 8200

6шт.

33

1500651C1

CLUTCH PLATE,120mm ID x 156mm OD x 3.05mm Thk

clutch inner

4шт.

34

934581R1

PLUG,M63, Conical

cup

1шт.

35

3129949R1

CASE

mounting

1шт.

36

3142414R1

SHIM

.1

1шт.

36

3146816R1

SHIM

.15

1шт.

36

3142630R1

SHIM

.2

1шт.

36

3142631R1

SHIM

.5

1шт.

37

3223137R1

WASHER

1шт.

38

3220682R91

TAPERED BEARING,35mm ID x 80mm OD x 32.75mm W

taper roller

1шт.

OR

1шт.

38

3225581R91

TAPERED BEARING

BEARING, taper roller

1шт.

39

1500649C1

THRUST WASHER

thrust

1шт.

40

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

1шт.

41

3129962R1

BUSHING

2шт.

42

3129960R91

GEAR

W/TWO BUSHING ASSY, 24T

1шт.

43

3129963R2

PLATE

thrust, replaces 3129963R1 on serial no. 8199 and below by also reducing number of outer discs 3221192R1 from, Serial Range: 10-6

1шт.

44

399837R1

SNAP RING,#118, 1.121", Ext

RING, retaining

2шт.

45

3129951R1

PIN

idler gear

2шт.

46

934259R1

PLUG,Hex, M10 x 1

Straight, Drain Hex, M10 x 1

1шт.

47

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

48

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

2шт.

49

3129966R1

BRACKET

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

2шт.

934309R1

LOCK WASHER,M8

2шт.

50

20154R1

DOWEL,5/16" x 7/8"

PIN, 5/16 x .875 pln hdn dowel

2шт.

51

984791C1

GASKET

0.4 MM

1шт.

51

1502059C1

GASKET

0.3 MM replaces 0.6MM gasket 1502060C1

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

7шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

2шт.

52

3129953R1

PIN

31T idler gear

1шт.

53

3129957R1

PLATE

Gear pin lock

2шт.

54

3129954R1

O-RING

1шт.

55

3129958R1

PLATE, LOCKING

PLATE, bolt lock

2шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 pln class 8.8

4шт.

56

3129956R1

THRUST WASHER

idler gear

2шт.

57

3129952R1

GEAR, IDLER

31T

1шт.

58

3129950R1

GEAR, IDLER

20T

2шт.

59

3129955R91

BEARING, NEEDLE

roller

6шт.

60

1502172C1

ANGLE

clamp

1шт.

61

3405811R1

BUSHING

1шт.
