Запчасти Case IH 884 (07-60) - STEERING KNUCKLE ASSY, ALL WHEEL DRIVE, ZF AXLE (04) - Drive Train

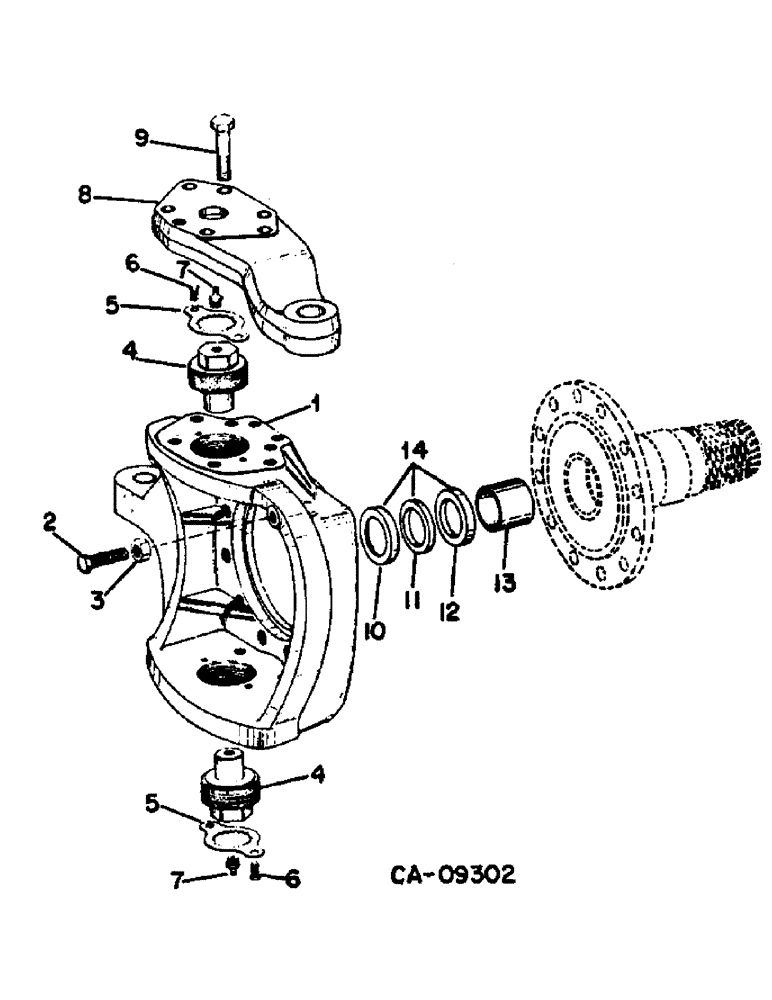

Схема запчастей Case IH 884 - (07-60) - STEERING KNUCKLE ASSY, ALL WHEEL DRIVE, ZF AXLE (04) - Drive Train
14
7
12
11
4
9
10
5
8
6
7
3
5
1
2
4
6
13

Артикул

Название

Примечание

Количество

1

3230955R1

HOUSING

steering knuckle RH

1шт.

1

3230954R1

HOUSING

steering knuckle LH

1шт.

2

3134225R1

BOLT

M12 x 40

4шт.

3

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

hex M12

4шт.

4

3216588R1

LARGE PIN

PIN, axle king

4шт.

5

3216589R1

PLATE, LOCKING

4шт.

6

930107R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

SCREW, M6 x 10

8шт.

7

712992R91

LUBE NIPPLE

NOT USED THIS APPLICATION

1шт.

8

1502271C1

STRAP

ARM, steering, includes cover

1шт.

3230953R1

COVER

king pin

1шт.

9

3229114R1

LOCK BOLT

M14 x 50

6шт.

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

Hex, M14 x 50, 8.8

4шт.

10

NSS

NOT SOLD SEPARAT

HOLDER, order 3405555R1

4шт.

11

NSS

NOT SOLD SEPARAT

SEAL, felt, order 3405555R1

4шт.

12

NSS

NOT SOLD SEPARAT

SEAL, oil, order 3405555R1

4шт.

13

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

4шт.

14

3405555R1

SEAL

ASSY, Includes: Ref. 10, 11 & 12

4шт.

Выбрано товаров: 17
