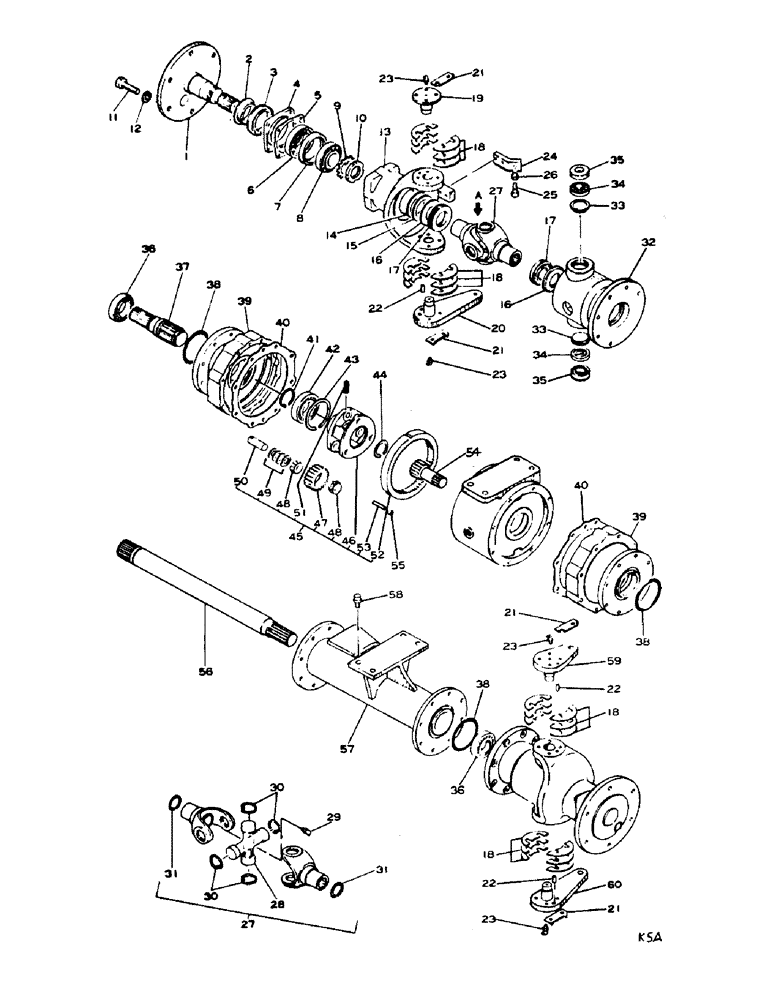

Запчасти Case IH 884 (07-52) - FRONT AXLE, ALL WHEEL DRIVE, KIMCO AXLE (04) - Drive Train

1

1004654C1

SHAFT

axle

2шт.

Axle serial no. 4018 and below.

1шт.

1

1062361C2

SHAFT

axle

2шт.

Axle serial no. 4019 and above.

1шт.

2

NOT USED THIS APPLICATION

1шт.

3

973636C2

SEAL

water

2шт.

4

984482C2

RETAINER

2шт.

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 phc type 8

8шт.

120386

WASHER

.312 x .734 x .051

8шт.

5

973640C1

GASKET,0.8mm Thk

2шт.

6

984232C1

TAPERED BEARING

outer

2шт.

7

984485C5

SPACER

brg cup

2шт.

7

1004090C1

SPACER

brg cone

2шт.

1004091C1

SHIM

.05MM

1шт.

1004092C1

SHIM

.1MM

1шт.

1004093C1

SHIM

.3MM

1шт.

1004094C1

SHIM

.5MM

1шт.

8

984488C2

BEARING, ROLLER

BEARING, inner

2шт.

9

983235C4

WASHER,47.3mm ID x 74mm OD x 5mm Thk

lock

2шт.

Axle serial no. 4018 and below.

1шт.

9

1062359C1

WASHER

lock

2шт.

Axle serial no. 4019 and above.

1шт.

10

983234C5

BEARING LOCK NUT

2шт.

Axle serial no. 4018 and below.

1шт.

10

1062360C1

NUT

2шт.

Axle serial no. 4019 and above.

1шт.

11

979037C2

BOLT,Hex, M16 x 2 x 30mm

12шт.

12

1014377C1

WASHER

12шт.

13

984204C8

HOUSING

knuckle

2шт.

Has mounting holes 11.0 mm.

1шт.

Axle serial no. 4018 and below.

1шт.

13

1064978C1

HOUSING

knuckle

2шт.

Has mounting holes 13.5 mm.

1шт.

Axle serial no. 4019 and above.

1шт.

14

984497C1

SPRING

Belleville

2шт.

15

1004361C1

WASHER

2шт.

15

1004362C1

WASHER

4шт.

15

1004363C1

WASHER

4шт.

16

NOT USED THIS APPLICATION

1шт.

17

984147C4

SEAL

water

4шт.

Axle serial no. 4018 and below.

1шт.

17

1057132C1

OIL SEAL

water

4шт.

Axle serial no. 4019 and above.

1шт.

18

984251C2

SHIM

0.05MM

1шт.

Axle serial no. 4018 and below.

1шт.

18

984137C3

SHIM

0.2MM

1шт.

Axle serial no. 4018 and below.

1шт.

18

984138C3

SHIM,33mm ID x 90mm OD x 0.5mm Thk

0.5MM

1шт.

Axle serial no. 4018 and below.

1шт.

18

984653C2

SHIM

1.0MM

1шт.

Axle serial no. 4018 and below.

1шт.

18

1057139C1

SHIM

0.05 MM

1шт.

Axle serial no. 4019 and above.

1шт.

18

1057140C1

SHIM

0.2 MM

1шт.

Axle serial no. 4019 and above.

1шт.

18

1057141C1

SHIM

0.5 MM

1шт.

Axle serial no. 4019 and above.

1шт.

18

1057142C1

SHIM

1.0 MM

1шт.

Axle serial no. 4019 and above.

1шт.

19

1004581C1

RETAINER

SHAFT ASSY

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2 x 1-3/8 phc type 8

4шт.

Axle serial no. 4018 and below.

1шт.

19

1064982C1

SHAFT

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5шт.

Axle serial no. 4019 and above.

1шт.

20

1004580C1

ARM ASSY.

ARM ASSY, steering

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2 x 1-3/8 phc type 8

4шт.

Axle serial no. 4018 and below.

1шт.

20

1064981C1

ARM

steering RH

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

4шт.

Axle serial no. 4019 and above.

1шт.

21

984481C1

PLATE

lock

8шт.

Axle serial no. 4018 and below.

1шт.

22

19846R1

DOWEL,1/2" x 1 1/4"

PIN, dowel

6шт.

Axle serial no. 4018 and below.

1шт.

22

1064983C1

PIN

dowel

6шт.

Axle serial no. 4019 and above.

1шт.

23

1005530C1

FITTING

grease

4шт.

24

984206C2

BRACKET

stopper

2шт.

101896R1

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 8, Full Thd

4шт.

131099

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

stopper 1/2-13 x 1-1/2

2шт.

26

25526R1

NUT,1/2"-13, G8

1/2-13

2шт.

27

984647C2

JOINT ASSY.

JOINT ASSY

2шт.

28

885518H1

SPIDER ASSY.

SPIDER ASSY, consists of: (4) case, (4) needle, (4) gasket, (4) snap ring, (1) spider

2шт.

NSS

NOT SOLD SEPARAT

CASE

4шт.

NSS

NOT SOLD SEPARAT

NEEDLE

4шт.

NSS

NOT SOLD SEPARAT

GASKET

4шт.

181943H1

SEALING RING

RING, snap

4шт.

NSS

NOT SOLD SEPARAT

SPIDER

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

30

181943H1

SEALING RING

RING, snap

8шт.

31

971220C1

RING

snap

4шт.

32

984122C6

HOUSING

axle

2шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

1/2-NF x 2-1/4 pln type 5, to planet carrier housing

8шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 PHC type 8, to center axle housing

8шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF cad P/T lock type 8

16шт.

33

984613C2

PLUG

4шт.

34

984718C94

SPHERICAL BEARING,25mm ID x 52mm OD x 15.5mm W

4шт.

35

984146C2

SPRING

SEAL, water

4шт.

36

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING

2шт.

37

984130C5

SHAFT

RH

1шт.

38

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 class 5

3шт.

39

984125C5

SET

HOUSING, planet carrier

2шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1/2 x 3 phc type 8

8шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

8шт.

40

973639C2

GASKET

2шт.

41

327068R1

RING, SNAP

2шт.

42

1014679C1

BEARING, BALL

BEARING

2шт.

43

398334R1

SNAP RING

RING, snap

2шт.

44

1014353C1

RING

snap

2шт.

45

984165C91

SET

planet gear

2шт.

46

973612C3

CARRIER

planet

2шт.

47

973613C1

GEAR

planet

6шт.

48

973614C1

ROLLER BEARING,20 mm ID x 33.5 mm OD

cone

12шт.

49

973616C1

SHIM

0.2MM

1шт.

49

973617C1

SHIM

0.3MM

1шт.

49

973618C1

SHIM

0.5MM

1шт.

49

973619C1

SHIM

0.05MM

1шт.

50

973620C1

PIN

planet

6шт.

51

932448R1

LOCK PIN,M6 x 16, Slotted

PIN, roll

6шт.

52

973621C1

GEAR WHEEL

GEAR, ring

2шт.

53

973622C1

PIN

6шт.

54

984118C2

GEAR

sun

2шт.

55

984141C2

SPACER

6шт.

56

984132C5

SHAFT

L.H.

1шт.

57

984786C3

HOUSING

axle center

1шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-NF x 2-1/4 pln type 5

8шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF cad P/T lock type 8, to planet carrier housing

8шт.

58

897218C1

BREATHER

1шт.

59

1004578C1

ARM

ASSY, cylinder

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2 x 1-3/8 phc type 8

4шт.

Axle serial no. 4018 and below.

1шт.

59

1064979C1

ARM

ASSY, cylinder

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5шт.

Axle serial no. 4019 and above.

1шт.

60

1004579C1

ARM

ASSY, steering L.H.

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2 x 1-3/8 phc type 8

4шт.

Axle serial no. 4018 and below.

1шт.

60

1064980C1

ARM

steering LH

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5шт.

Axle serial no. 4019 and above.

1шт.

1057143C1

SHIM

0.05 MM

8шт.

1057144C1

SHIM

0.5 MM

8шт.

1057145C1

SHIM

0.2 MM

8шт.

1057146C1

SHIM

1.0 MM

8шт.
