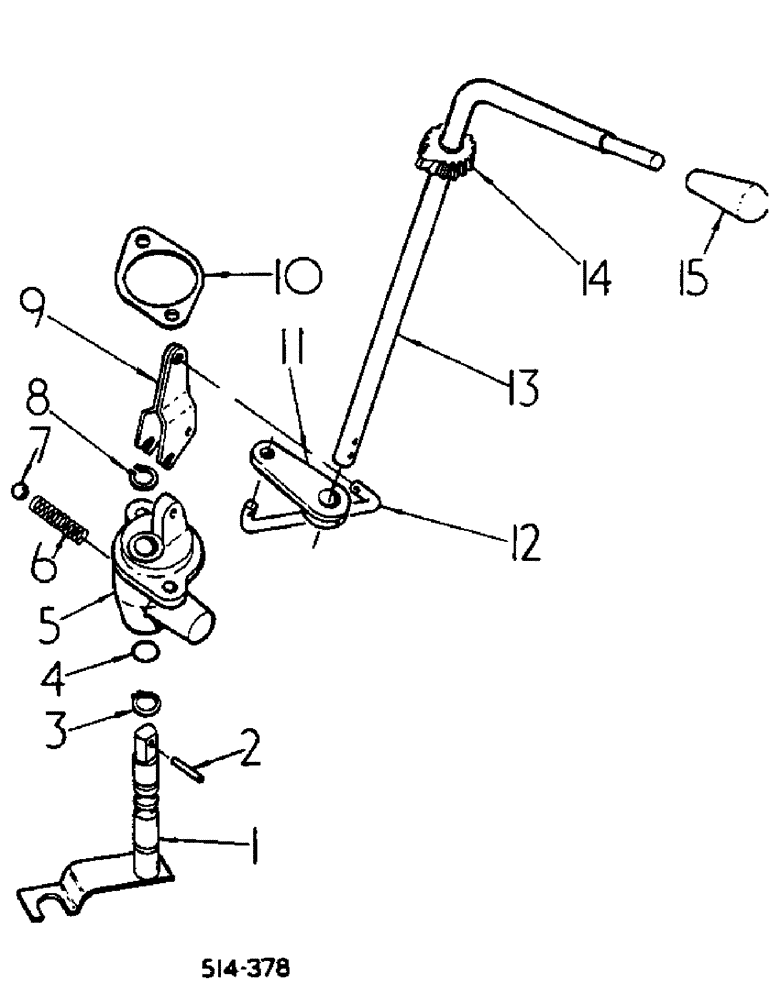

Запчасти Case IH 884 (07-40) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train

1

531553R1

LEVER ASSY.

LEVER ASSY, TA control

1шт.

2

20702R1

DOWEL,3/16" x 3/4"

PIN, 3/16 x 3/4 dowel

1шт.

3

309032R1

SNAP RING,#62, Ext

Ring, Snap, , TA control shaft #62, Ext

1шт.

4

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

1шт.

5

402595R2

SUPPORT

TA control shaft

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

402596R1

SPRING

TA control

1шт.

7

17014R1

BALL

7/16 CR STL

1шт.

8

309032R1

SNAP RING,#62, Ext

Ring, Snap, , TA control shaft #62, Ext

1шт.

9

402589R1

LEVER ASSY.

LEVER ASSY, TA control

1шт.

22731D

SPLIT PIN/SAFETY PIN

PIN, 1/4 x .906 pln clevis

1шт.

16558R1

WASHER

.266 x .625 x .036 pln

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

10

401623R1

GASKET

TA control shaft support

1шт.

11

402585R2

ARM ASSY.

ARM ASSY, TA control

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

12

402588R1

ROD

TA control

1шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

13

3121402R1

ROD

TA control handle

1шт.

14

528290R1

GUIDE RING

COLLAR, TA control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, no. 8 x 3/8 pln f/pt hdl/hs set

1шт.

15

402584R1

BUTTON

KNOB, TA control handle rod

1шт.

Q5035

WASHER

.531 x 1.000 x .054 pln

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

533594R1

DECAL

PRODUCT-GRAPHIC, TA control

1шт.

1093324R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, deceleration warning

1шт.
